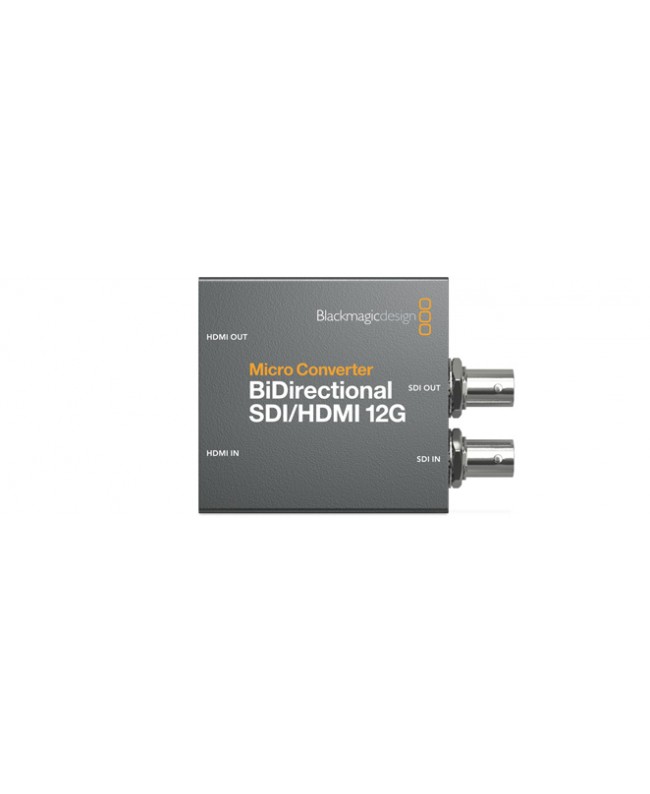

Blackmagic Design Micro Converter BiDirect SDI to HDMI 12G

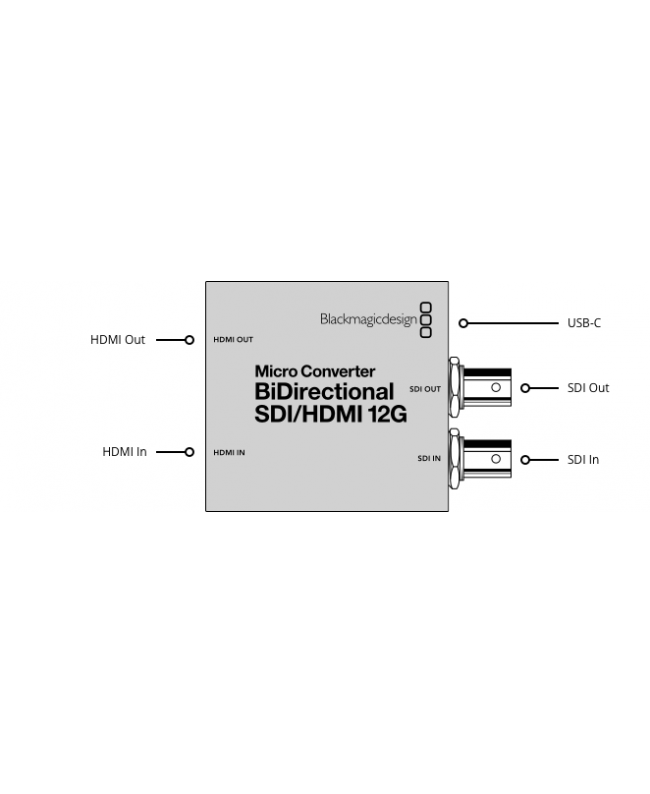

Connections

• SDI Video Inputs 1
• SDI Video Outputs Automatically matches the HDMI video input.
• HDMI 2.0 Video Inputs 1 x type A.
• HDMI 2.0 Video Outputs 1 x type A.
• SDI Rates 270Mb, 1.5G, 3G, 6G, 12G.
• Multi Rate Support Auto detection of SD, HD, 2K, Ultra HD and 4K.
• Updates, Configurations and Power USB Type‑C.
• Reclocking Yes

Standards

• SD Video Standards 525i59.94 NTSC, 625i50 PAL
• HD Video Standards 720p50, 720p59.94, 720p60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
• 2K Video Standards 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
• 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI Ultra HD Video Standards
• 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
• SDI Video Rates
• SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
• SDI Color Precision
• 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• SDI Color Space YUV
• SDI Auto Switching Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output.
• HDMI Video Standards 525i59.94 NTSC, 625i50 PAL
• 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
• 1080i50, 1080i59.94, 1080i60
• 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
• HDMI Color Precision
• 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• HDMI Color Space YUV

Copy Protection

• HDMI input is unable to capture from copy protected HDMI sources.
• Always confirm copyright ownership before capture or distribution of content.

Camera Control

• Bidirectional signal conversion supports Blackmagic Camera Control and Tally.

Settings Control

• Via MacOS™ and Windows™ software utility connected by USB.

Operating Systems

• Mac 10.15 Catalina,
• Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Software

• Internal software upgrade via USB.

Power Requirements

• Power Consumption 5W max.
• Operational Voltage Range 4.4V to 5.25V DC

Environmental Specifications

• Operating Temperature 0° to 40° C (32° to 104° F)
• Storage Temperature -20° to 60° C (-4° to 140° F)
• Relative Humidity 0% to 90% non-condensing

What's Included

• Micro Converter BiDirectional SDI/HDMI 12G
