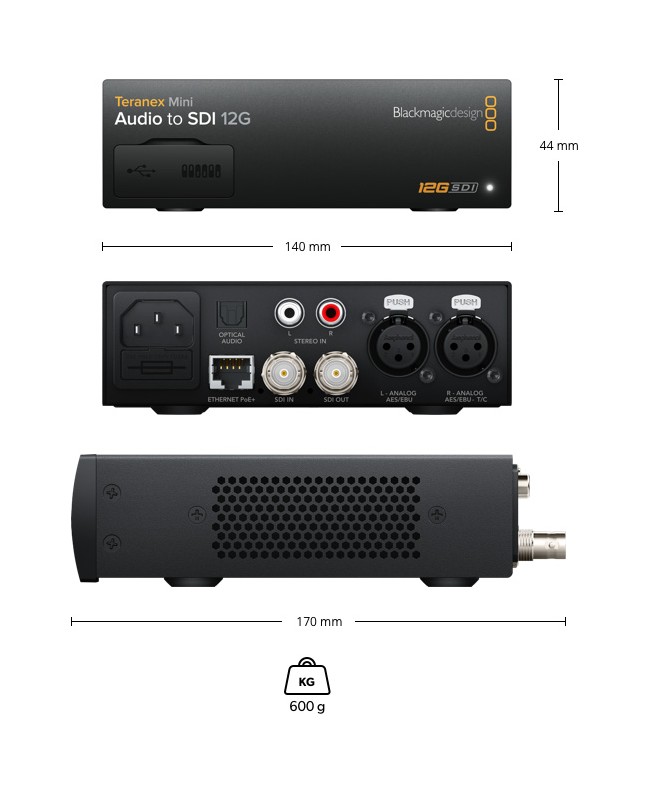

Blackmagic Design Teranex Mini Audio to SDI 12G

Connections

• SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching.
• Please click here for a summary of recommended cables to use with Blackmagic 12G‑SDI products.
• SDI Video Outputs 1 x 12G-SDI output.
• Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
• Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
• Embedded Audio Support 16 channels.
• Optical Audio Input S/PDIF Signal with TOSLINK Connector.
• Multi Rate Support Automatic switching between SD/HD/2K and 4K.
• Updates and Configuration USB or Ethernet.
• Reclocking Yes

Standards

• SD Video Standards
• 525i59.94 NTSC, 625i50 PAL
• HD Video Standards
• 720p50, 720p59.94, 720p60
• 1080i50, 1080i59.94, 1080i60
• 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
• 2K Video Standards
• 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI
• 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
• Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• 4K Video Standards 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
• SDI Compliance
• SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10
• SDI Video Rates SDI video connections are auto switching between standard definition SDI, 1.5G‑SDI, 3G‑SDI, 6G‑SDI and 12G‑SDI.
• SDI Video Sampling 4:2:2, 4:4:4
• SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
• SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G‑SDI.
• SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
• SDI Color Space  REC 601, REC 709

Software

• Software Control
• Mac™ and Windows™ software upgrade via USB and Ethernet.
• Internal Software Upgrade
• Via included updater application.

Operating Systems

• Mac 10.15 Catalina,
• Mac 11.1 Big Sur or later.
• Windows 10, 64-bit.

Settings Control

• Basic Settings Control
• Mini Switches, USB and Ethernet via free software utility
• Optional Front Panel Control
• Front mounted Smart Panel with LCD, rotary knob and six settings buttons

Power Requirements

• Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
• Power Over Ethernet
• Can be powered via 48V DC using PoE+ (power over ethernet).
• Power Consumption 16 Watts
• Operational Voltage Range100 - 240V AC

Environmental Specifications

• Operating Temperature
• 0° to 40°C (32° to 104°F)
• Storage Temperature
• -20° to 60°C (-4° to 140°F)
• Relative Humidity
• 0% to 90% non-condensing

What's Included

• Teranex Mini Audio to SDI 12G
• Welcome wallet with QR code for software download
