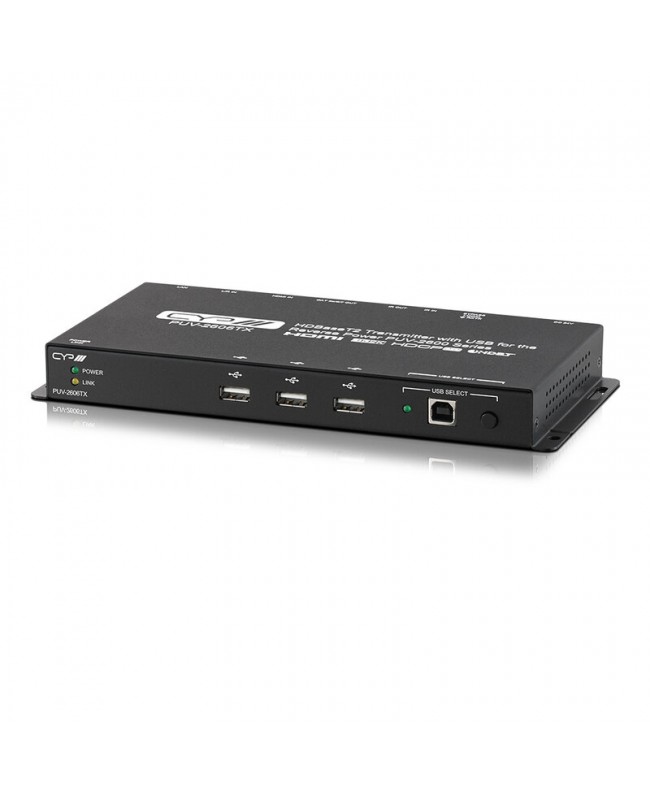

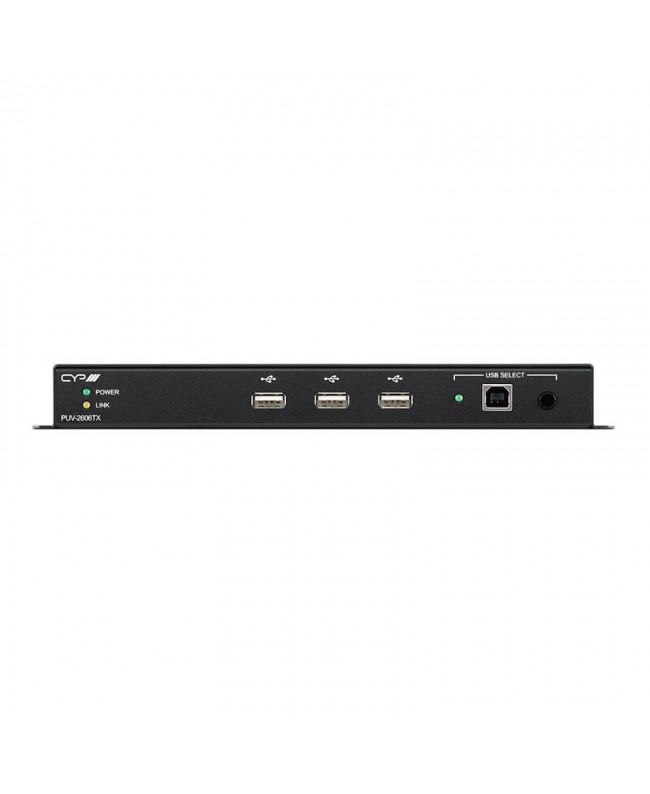

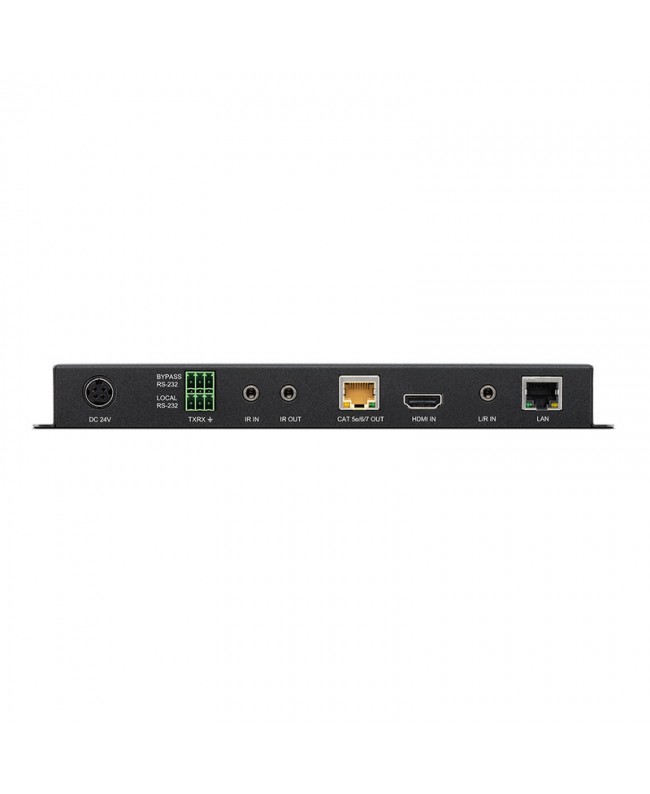

CYP PUV-2606TX

The PUV-2606TX is an HDBase. T2 extender designed to transmit HDMI signals up to 4K and #64; 60 Hz (4:2:0, 8-bit) along with Ethernet, USB, IR, and RS-232 over a single Cat.6/7 cable up to 100 meters. It supports Reverse Po. H technology, which allows the unit to be powered directly by a compatible PUV-2600 series receiver, simplifying installation.

The HDMI input accepts content up to 4K UHD and #43; (18 Gbps) and supports Deep Color up to 12-bit, as well as 10/12-bit HDR. The analog audio input can be embedded in the HDBase. T signal.

When paired with the PUV-2606RX standard receiver or the PUV-2600RX matrix receiver, the system offers three selectable USB hosts (Type-B/C) that allow access to five USB device ports (Type-A), enabling a highly flexible KVM configuration. (Note: Only one USB host can be active at a time.)

The USB Type-C input can also provide up to 60 W of power to the connected device, a feature only available when the transmitter is powered locally. All USB ports on the transmitter support speeds up to USB 3.0.

The PUV-2606TX offers advanced EDID management, HDCP management, and event automation via RS-232 or CEC. Control is available via Web. GUI, Telnet, RS-232, or front buttons. The unit can be powered locally via a 24V power supply or via Po. H from a compatible receiver.

HDBase. T output supports resolutions up to 4K and #64; 60 Hz (4:2:0, 8-bit) with automatic conversion to 1080p for sources that exceed HDBase. T bandwidth limitations

• Main features
• Compliant with HDMI 2.0, Display. Port 1.4, and DVI 1.0
• Compatible with HDCP 1.x and 2.2
• 1 HDBase. T output
• Supports video input up to 4K UHD and #43; (18 Gbps, 4K and #64; 60 Hz 4:4:4, 8-bit)
• Supports Deep Color input up to 12-bit
• Supports 10-bit and 12-bit HDR input
• Supported HDBase. T feature set: HD video and amp; audio, Po. H (PD), and Control Extension (bidirectional IR/RS-232/USB)
• Supports pass-through of many audio formats, including LPCM 8 Channels, Bitstream, and HD Bitstream
• Analog audio can be embedded into the HDMI input
• EDID management with internal or external EDID options. Signal event automation (via RS-232 or CEC)
• Supports optional Po. H power supply from a compatible HDBase. T receiver
• Controllable via front button, Web. GUI, Telnet, or RS-232
• User benefits
• Reduced cabling with Reverse Po. H eliminating the need for a local power supply
• Flexible KVM configurations with 3 selectable USB host and 5 USB device ports on compatible receivers
• High performance in KVM applications with USB 3.0 support
• Power devices via USB-C up to 60 W when powered locally
• Reliable integration with any source with advanced EDID management
• Automation via RS-232 or CEC to simplify recurring AV scenarios
• Areas of use
• Conference rooms with presentation and KVM control needs
• Classrooms Education and training centers with USB/host switching
• Corporate with long-distance 4K distribution
• Workstations requiring remote PC control via KVM
• HDBase. T2-based AV installations
