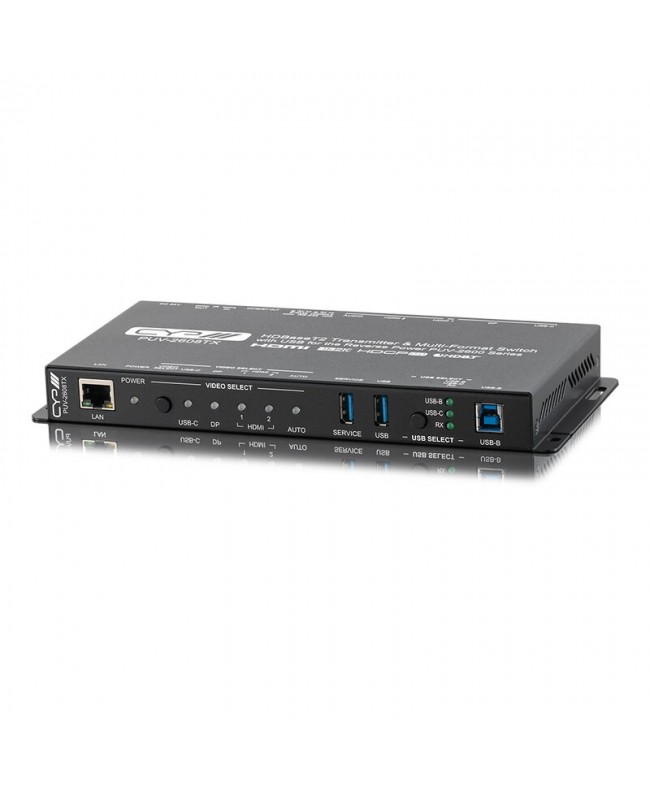

CYP PUV-2608TX

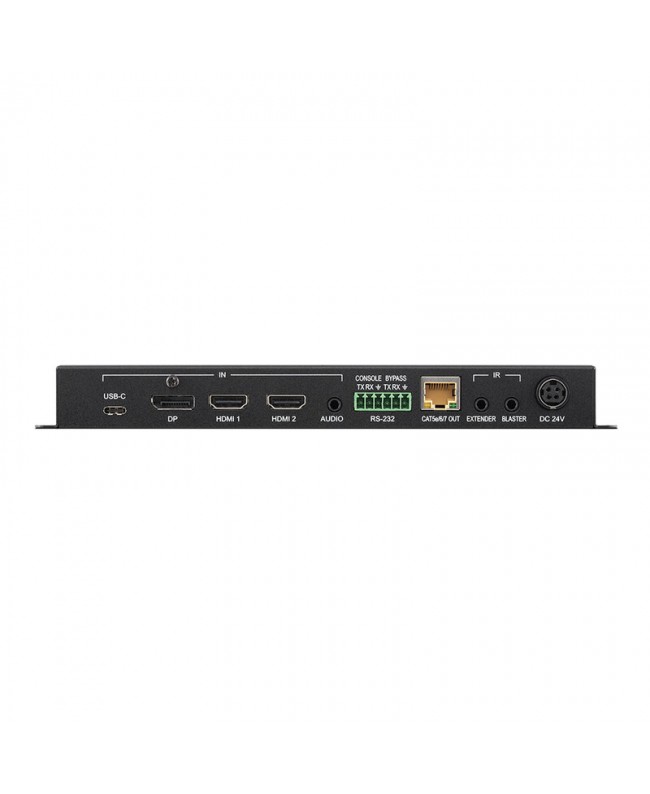

The PUV-2608TX is an HDBase. T2 extender with a built-in multi-format switcher, featuring two HDMI inputs, one Display. Port input, and one USB-C input. It supports USB, audio embedding, and reverse Po. H, like all models in the PUV-2600 series. It allows transmission of uncompressed audio / video, Ethernet, USB, IR, and RS-232 signals over a single Cat.6/7 cable up to 100 meters.

The HDMI, Display. Port, and USB-C inputs support resolutions up to 4K and #64; 60 Hz (4:4:4, 8-bit), with support for up to 12-bit Deep Color and 10/12-bit HDR. The analog audio input can be embedded in the HDBase. T signal. Sources with bandwidth exceeding HDBase. T limits are automatically downscaled to 1080p.

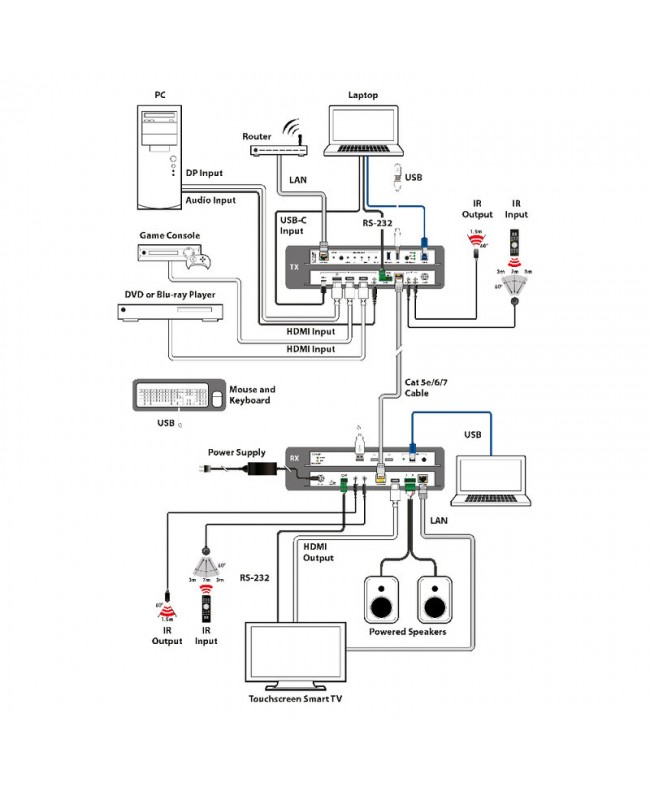

When paired with the PUV-2606RX standard receiver or PUV-2600RX matrix receiver, the system offers three selectable USB hosts (Type-B/C) that allow access to five USB ports (Type-A) on the receivers, enabling an extremely flexible KVM configuration. (N.B. Only one USB host can be active at a time). The USB-C input can also provide up to 60W of power to the connected device, a feature only available when the transmitter is powered locally. All USB ports support speeds up to USB 3.0.

The PUV-2608TX integrates advanced signal management features, such as automatic source selection via signal detection, EDID management for each input, HDCP management, and event automations via RS-232 or CEC. Control is available via Web. GUI, Telnet, RS-232, or front panel buttons.

The unit can be powered locally via a 24V power supply, required for the 60 W USB-C function, or via Po. H from a compatible PUV-2600 series receiver.

HDBase. T output supports resolutions up to 4K and #64; 60 Hz (4:2:0, 8-bit) with automatic conversion to 1080p for sources that exceed HDBase. T bandwidth limitations

• Main features
• HDMI 2.0, Display. Port 1.4, USB-C, and DVI 1.0 compliant
• HDCP 1.x and 2.2 compliant
• 1 HDBase. T output
• Supports video input up to 4K UHD and #43; (18 Gbps, 4K and #64; 60 Hz 4:4:4, 8-bit)
• Supports Deep Color input up to 12-bit
• 10-Bit and 12-bit HDR inputs
• Supported HDBase. T feature set: HD video and amp; audio, Po. H (PD), and control extension (bidirectional IR/RS-232/USB)
• Supports pass-through of many audio formats, including 8-channel LPCM, Bitstream, and HD Bitstream
• Analog audio can be embedded with all sources
• The USB-C input can provide power (up to 60W) to the connected device (local power only)
• EDID management for each input with internal or external EDID options
• Supports manual or automatic source selection with hot-plug detection
• Signal event automation (via RS-232 or CEC)
• Supports optional Po. H power from a compatible HDBase. T receiver

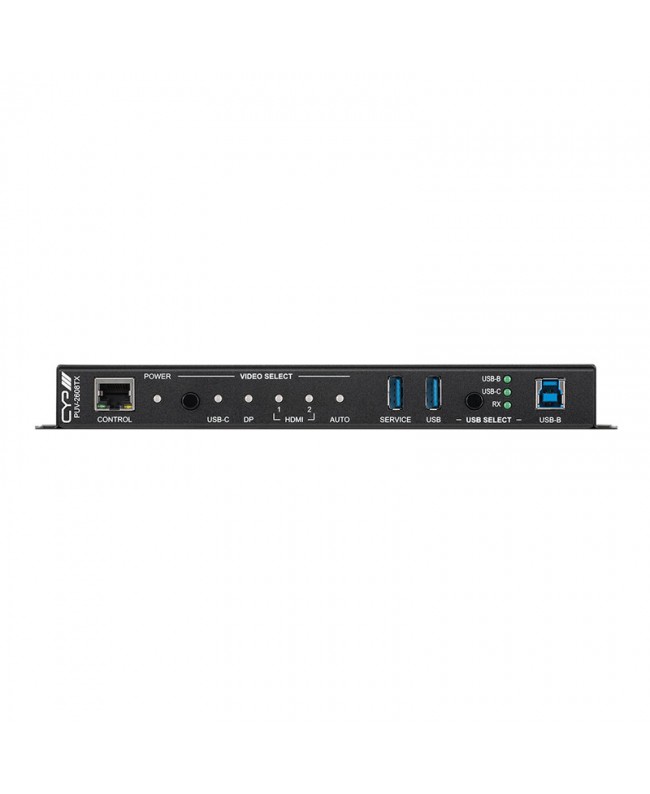

• Controllable via front panel buttons, Web GUI, Telnet, or RS-232
• User benefits
• Reduced cabling with Reverse Po. H eliminating the need for a local power supply
• Great flexibility with the integrated HDMI/DP/USB-C multi-format switcher
• Advanced KVM configurations with 3 selectable USB hosts and 5 USB device ports on compatible receivers
• Powers devices via USB-C up to 60W when powered Locally
• Integrate with any source thanks to EDID management for each input
• Automation via RS-232 or CEC
• Areas of use
• Conference rooms
• Classrooms and training centers with automatic source switching
• Corporate
• Operating stations requiring remote PC control via KVM
• AV installations based on HDBase. T2
• Modular systems with CYP PUV-2606RX and PUV-2600RX receivers
