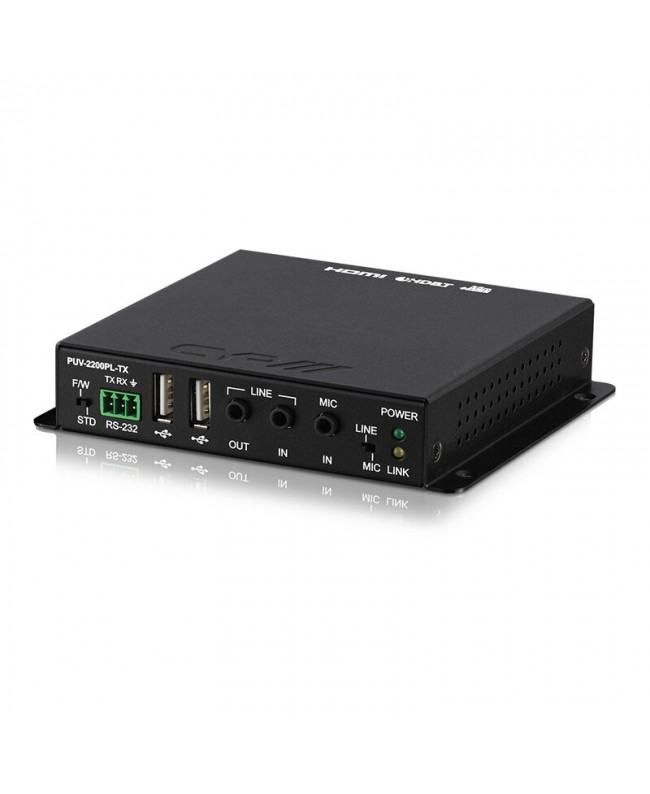

CYP PUV-2200PL-TX

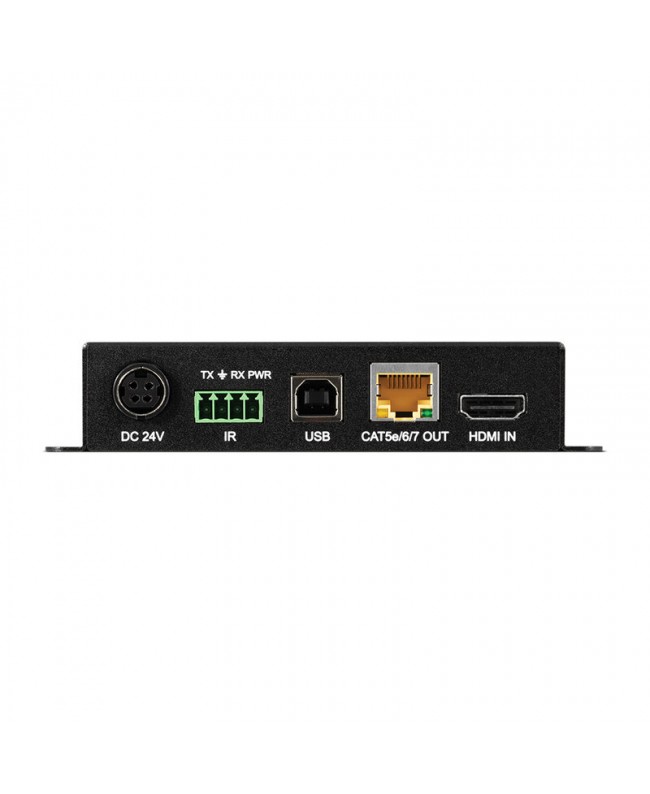

The PUV-2200PL-TX is an HDBase. T 2.0 LITE transmitter capable of sending uncompressed HDMI, HD audio, USB, IR, and RS-232 signals over a single Cat. 5e/6/7 cable up to 35 meters.

It supports resolutions up to 4K and #64; 60 Hz (4:2:0) and popular audio formats, ensuring compatibility with HDMI 2.0, DVI 1.0, and HDCP 2.2/1.x. It integrates analog audio inputs and outputs, USB host/device management, and advanced control functions for great flexibility in AV installations.

Po. H support allows the receiver to be powered directly, simplifying cabling and reducing the need for additional power supplies.

• Main features
• HDBase. T 2.0 compatible
• Supports UHD resolutions up to 3840 x 2160 and #64; 60 Hz (4:2:0, 8-bit) and 4096 x 2160 and #64; 60 Hz (4:2:0, 8-bit)
• Pass-through of audio formats, including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream via HDMI
• HDMI 2.0 and DVI 1.0 compatible
• Compliant with HDCP 2.2 and HDCP 1.x
• Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35 m
• Supports 16-bit Deep Color up to 1080p and #64; 60 Hz
• Supports standard 48 V power from transmitter (PSE) to receiver (PD)
• Users benefits
• Reduced cabling thanks to the simultaneous transmission of audio, video, control, and USB over a single cable
• Simplified installation thanks to Po. H that directly powers the receiver
• Compatibility with professional audio formats for integration into advanced AV systems

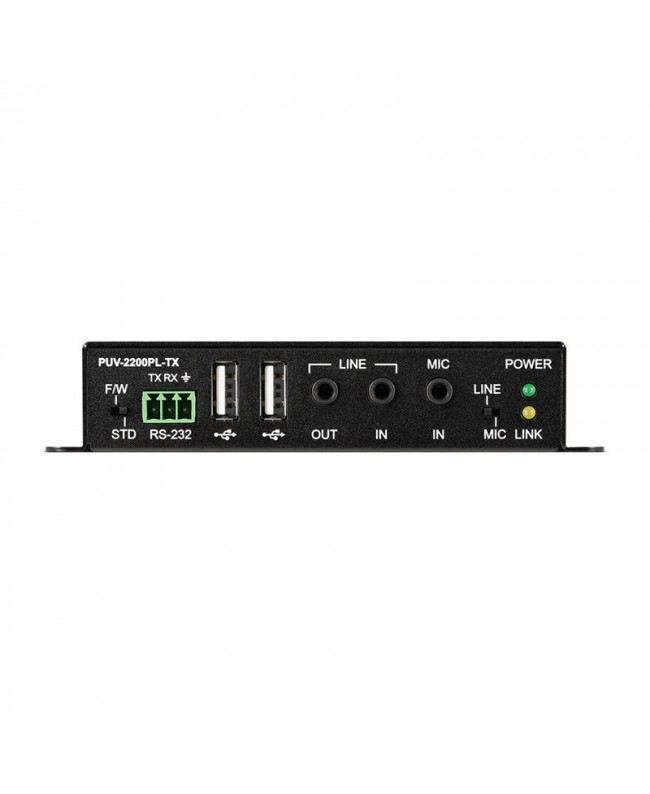

• Greater flexibility thanks to analog audio inputs/outputs and USB host/device management
• Control via IR, RS-232, and USB for interactive, corporate, and educational systems
• Areas of use
• Conference rooms and meeting rooms
• AV installations requiring HDMI reception up to 35 meters
• Corporate environments requiring USB and integrated control

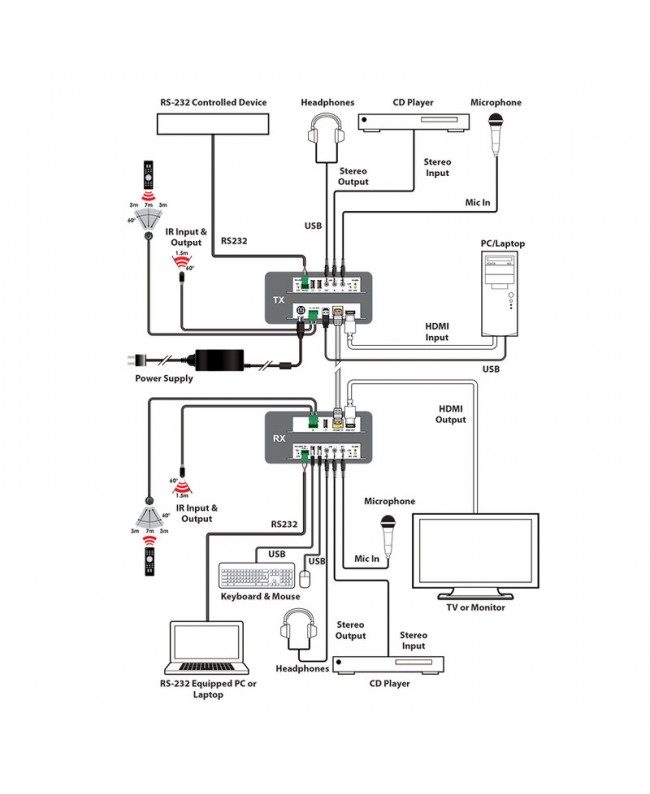

• Systems with local sources (PC, media player, codec) and distribution to remote receivers
• All applications with 4K and #64; 60 (4:2:0) transmission over Cat. 5e/6/7 cabling
