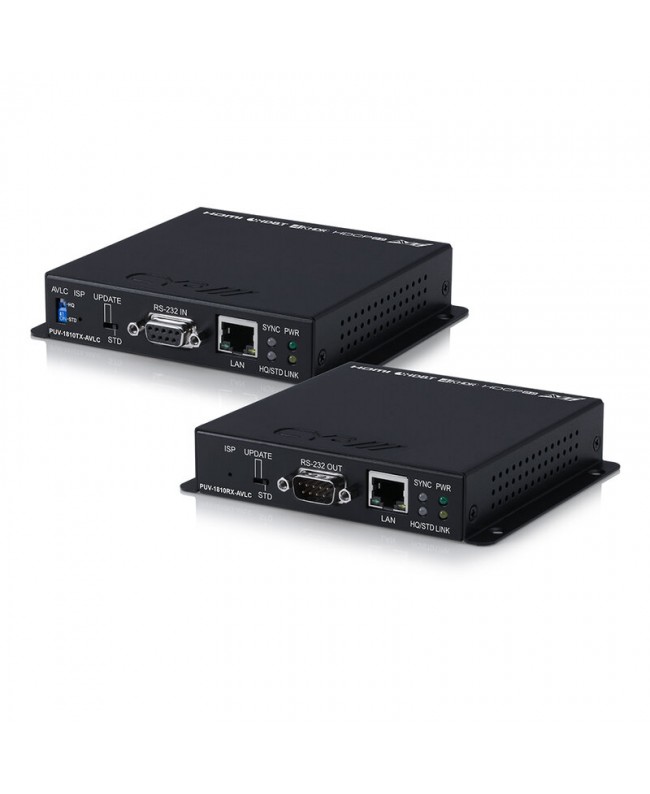

CYP PUV-1810-AVLC-KIT



This HDBase. T transmitter / receiver kit is designed to extend 4K UHD video, audio, Ethernet, and control signals over a single CAT.5e/6/7 cable up to 100 meters.

Compatible with HDMI 2.0, HDCP 2.2, and previous versions, it supports signals up to 4K and #64; 60 Hz 4:4:4 (18 Gbps) thanks to AVLC (Adaptive Visually Lossless Compression) technology, which overcomes the bandwidth limitations of HDBase. T while maintaining visual quality indistinguishable from the original. The system also supports HDR (10/12-bit), Deep Color, CEC, LAN pass-through, bidirectional IR, and RS-232.

The receiver is powered directly by the transmitter via 48 V Po. H, simplifying installation and reducing the need for additional power supplies. An ideal solution for professional applications requiring stable extensions, high video quality, and complete control signal integration.

  • Main features
  • HDMI up to 4K and #64; 60 Hz with HDR, 3D
  • Compatible with HDMI 2.0 / 1.x and HDCP 2.2 / 1.x
  • Video support up to 4K UHD 18 Gbps (4K and #64; 50/60 Hz 4:4:4, 8-bit)
  • Deep Color up to 12-bit
  • 10-Bit and 12-bit HDR support
  • CEC bypass

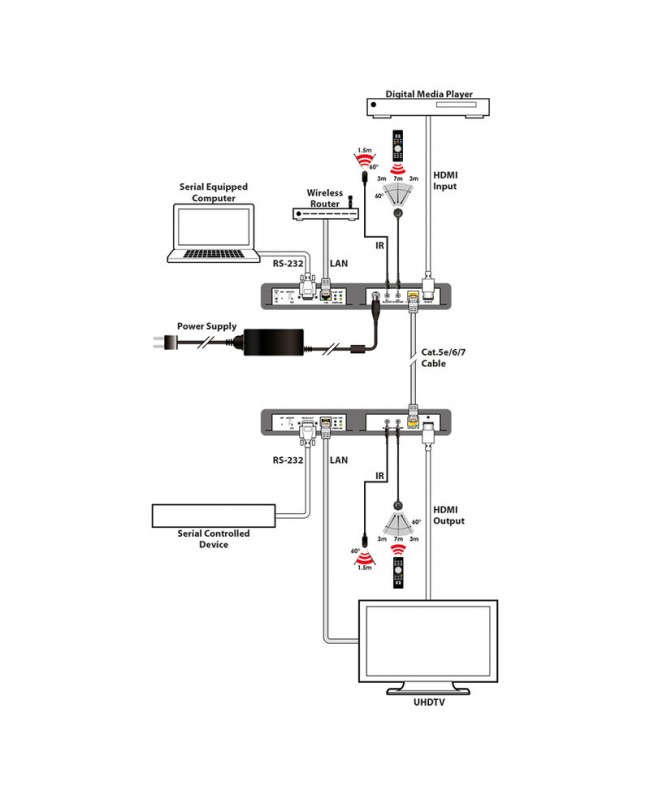

  • Simultaneous transmission of video, audio, LAN, and control over a single CAT5e/6/7 cable
  • Distances: up to 100 m and #64; 1080p, 70 m and #64; 4K
  • AVLC technology to extend signals up to 18 Gbps beyond the HDBase. T limit
  • HQ / STD switch to optimize quality or distance
  • HDBase. T support: HD video / audio, 100Base. T Ethernet, bidirectional IR, RS-232, Po. H
  • 48 V Po. H from TX to RX (PSE PD)
  • User benefits
  • AVLC (Adaptive Visually Lossless Compression) Technology
  • Simultaneous transmission of video, audio, LAN, and control
  • Simplified installation thanks to Po. H
  • Full compatibility with modern 4K HDR sources and displays
  • Perfect integration into control systems via IR and bidirectional RS-232
  • Areas of use
  • Sharing and control of multimedia content in the home
  • Classrooms and conference rooms for presentations and teaching
  • Showrooms and exhibition spaces
  • Meeting rooms and meeting rooms
  • Classrooms and educational environments
  • Technical characteristics

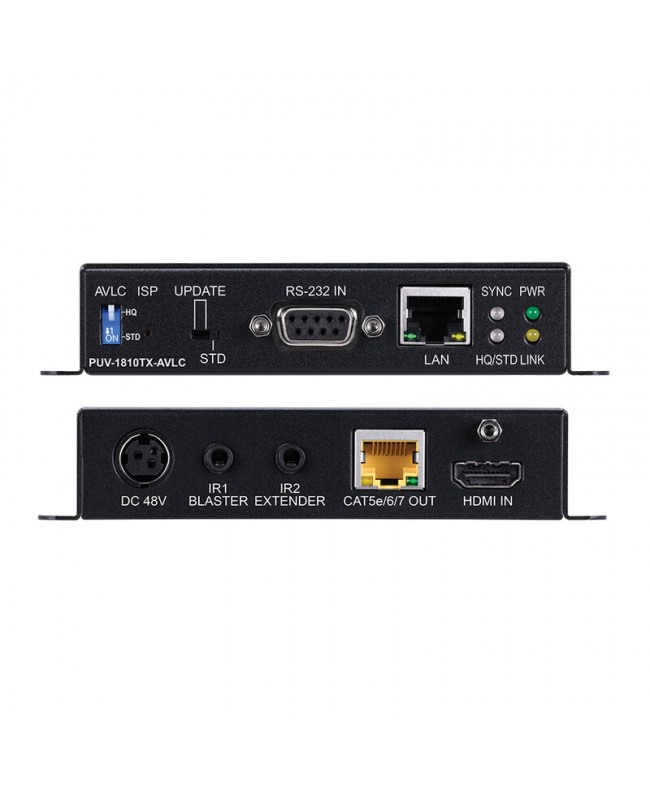

  • Transmitter
  • HDMI bandwidth: 600 MHz / 18 Gbps
  • HDBaseT bandwidth: 340 MHz / 10.2 Gbps
  • Input ports: 1 x HDMI
  • Output ports: 1 x CAT5e/6/7
  • Pass-through ports: 1 x IR Extender (3.5 mm), 1 x IR Blaster (3.5 mm), 1 x RS-232 (9-pin D-sub), 1 x LAN (RJ-45)
  • IR frequency: 30 - 50 kHz (up to 60 kHz under ideal conditions)
  • Baud rate: up to 115,200 bps
  • Power supply: 48 VDC / 0.83 A
  • Power consumption: 8.69 W
  • Chassis material: metal
  • Silkscreen colour: black
  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 60 °C
  • Relative humidity: 20 - 90% RH (non-condensing)
  • Dimensions (W x H x D): 12.8 x 2.5 x 10.8 cm (case only), 12.8 x 2.5 x 11.7 cm (all inclusive)
  • Weight: 385 g

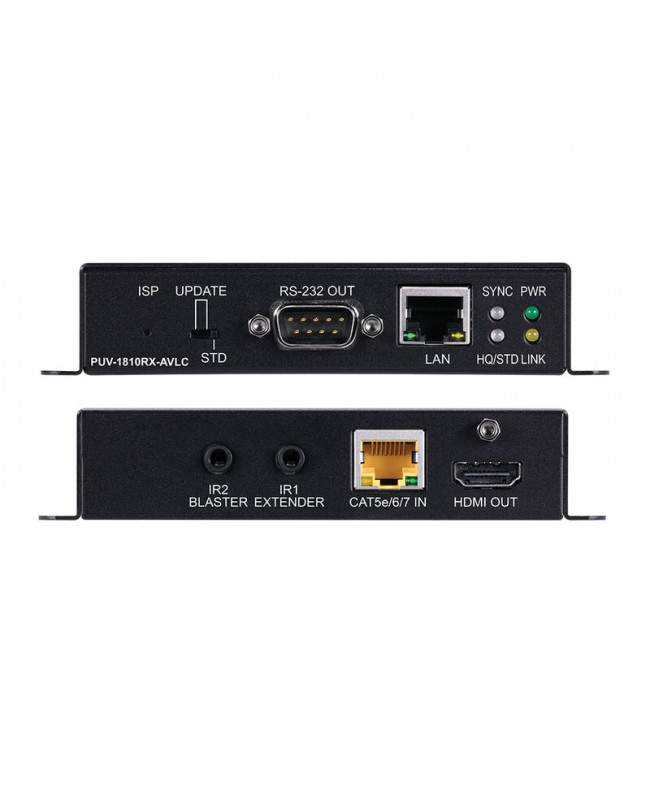

  • Receiver
  • HDMI bandwidth: 600 MHz / 18 Gbps
  • HDBaseT bandwidth: 340 MHz / 10.2 Gbps
  • Input ports: 1 x CAT5e/6/7
  • Output ports: 1 x HDMI
  • Pass-through ports: 1 x IR Extender (3.5 mm), 1 x IR Blaster (3.5 mm), 1 x RS-232 (9-pin D-sub), 1 x LAN (RJ-45)
  • IR frequency: 30 - 50 kHz (up to 60 kHz under ideal conditions)
  • Baud rate: up to 115,200 bps
  • Power supply: PoH (powered by transmitter)
  • Power consumption: 10 W
  • Chassis material: metal
  • Silkscreen colour: black
  • Operating temperature: 0 to 40 °C
  • Storage temperature: -20 to 60 °C
  • Relative humidity: 20 - 90% RH (non-condensing)
  • Dimensions (W x H x D): 12.8 x 2.5 x 10.8 cm (case only), 12.8 x 2.5 x 11.7 cm (all inclusive)
  • Weight: 386 g
