CYP PUV-2010RX

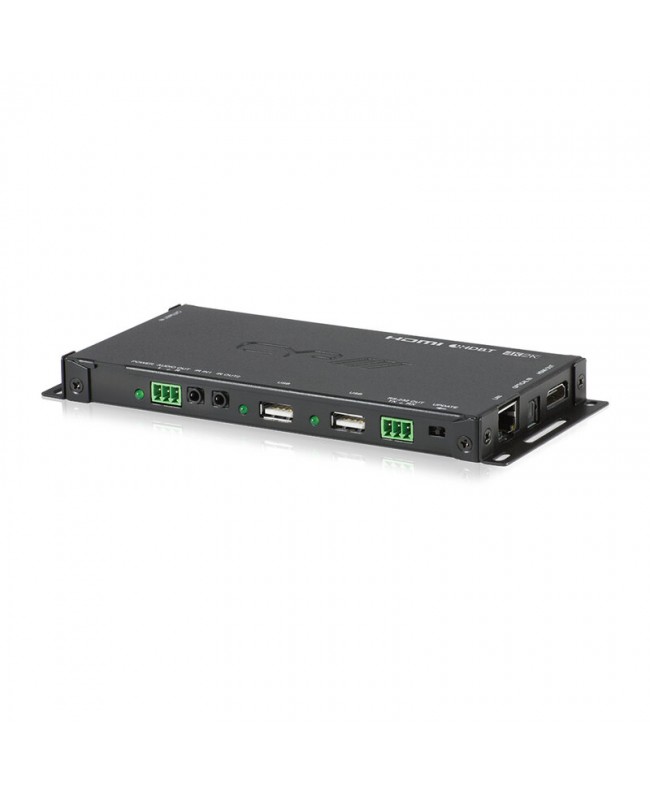

The PUV-2010RX is a slimline HDBase. T 2.0 receiver designed to receive HDMI signals up to 4K UHD, HD audio, LAN, USB 2.0, IR, and RS-232 from a compatible transmitter over a single Cat.6a/7 cable up to 100 meters.

Thanks to HDBase. T 2.0 technology and full 5-Play convergence, the device simultaneously manages video, audio, network, control, and Po. H power, ensuring high performance. It also integrates OAR (Optical Audio Return) and ARC functions, allowing audio to be returned from the display to the transmitter. The ultra-slim design facilitates installation in small spaces, making it ideal for conference rooms, corporate environments, and advanced AV systems.

• Main features
• Supports full HDBase. T 2.0 specification up to 100 m over CAT6a/7
• HDCP 2.2, HDMI, and DVI compatible
• HDBase. T 5-Play convergence: HD video and audio, 100Base. T Ethernet, Po. H, and bidirectional IR/RS-232 control
• Supports resolutions from VGA to WUXGA, 480i to 1080p, 4K UHD and #64; 24/25/30 Hz (RGB 4:4:4 and amp; YUV 4:2:2), 4K UHD and #64; 60 Hz (YUV 4:2:0)
• Pass-through of HD audio formats including Dolby Atmos and DTS-HD Master Audio
• Supports OAR (Optical Audio Return) and ARC (Audio Return Channel)
• Dedicated analog audio path from transmitter to receiver
• 2 x USB 2.0 ports
• Ultra-slim chassis for Compact installations
• User benefits

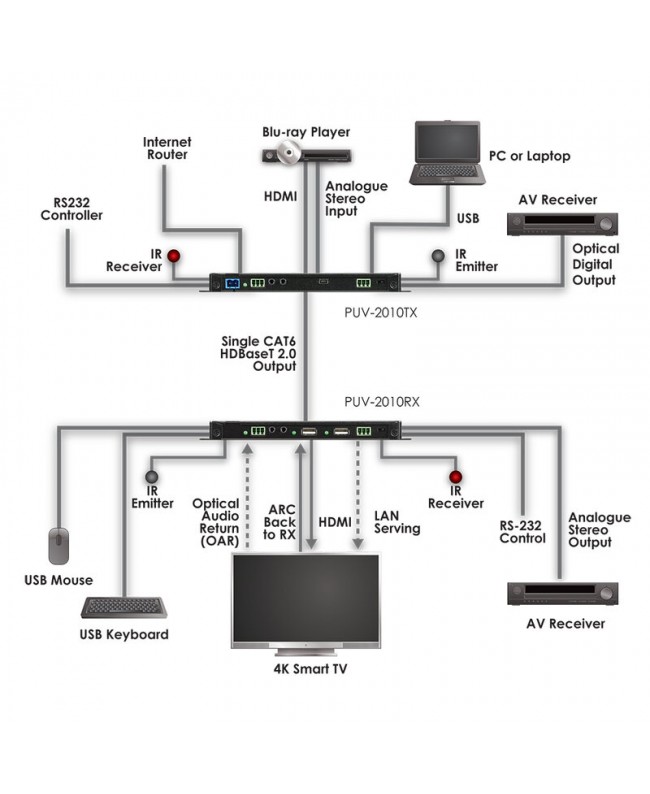

• Reduced cabling thanks to the simultaneous transmission of AV, network, control, and power over a single cable
• Greater flexibility thanks to OAR and ARC support for audio return from the display
• Immediate integration with USB peripherals thanks to USB 2.0 ports with hub function
• Simplified installation (ultra-slim design and Po. H eliminating additional power supplies)
• Full compatibility with audio formats used in advanced AV systems
• Areas of use
• Conference rooms and meeting rooms with centralized AV distribution
• AV installations requiring HDMI extension up to 100 meters
• Corporate environments requiring integrated networking, control, and audio return
• Systems with optical audio return or ARC to matrix switchers or DSPs
• Applications requiring USB management for KVM or interactive peripherals
