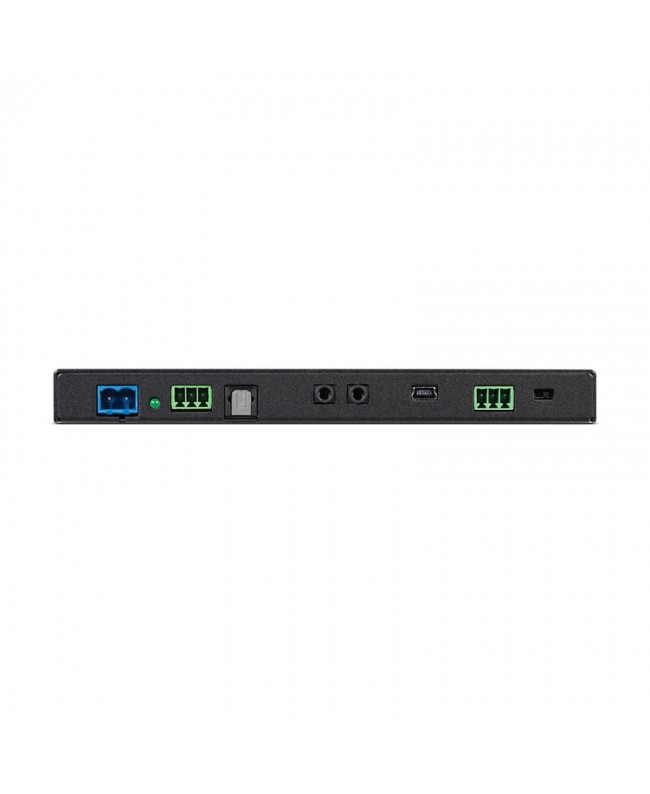

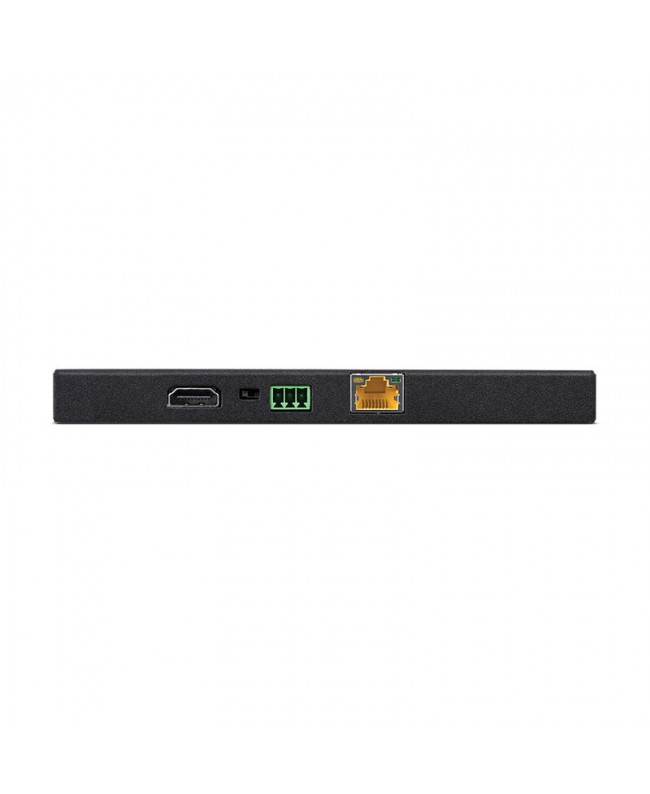

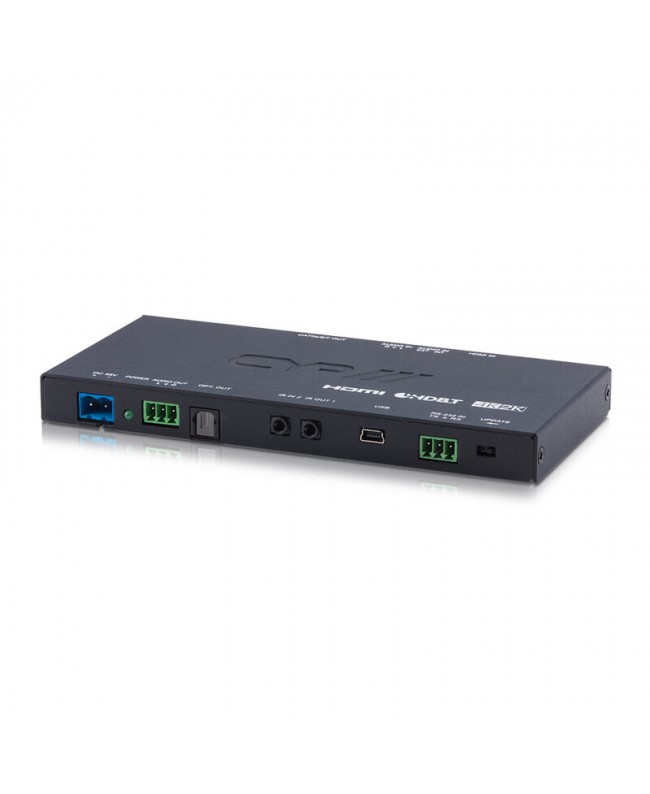

CYP PUV-1230PL-TX

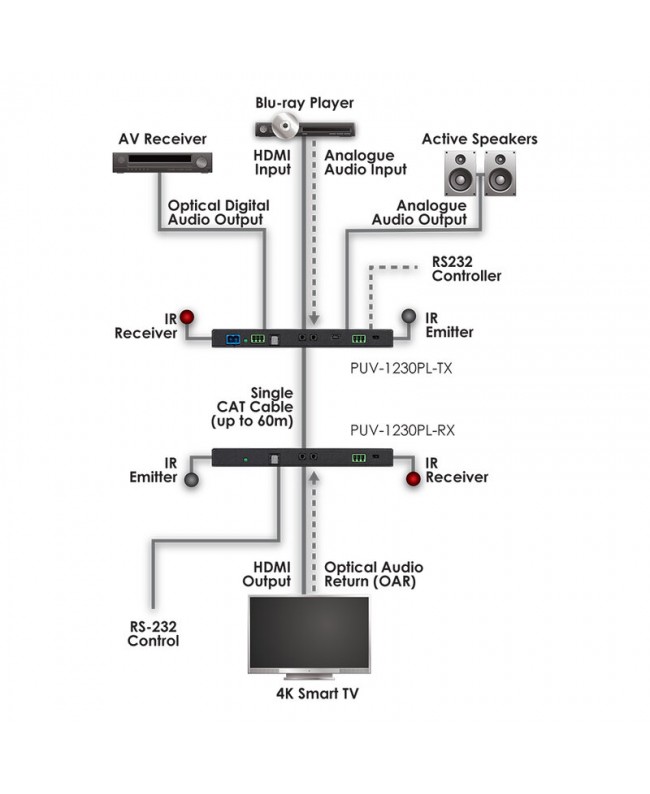

PUV-1230PL-TX is an HDBase. T LITE transmitter designed to extend HDMI signals up to 4K UHD, HD audio, bidirectional control (IR and RS-232), Po. H, and OAR (Optical Audio Return) up to 60 meters over a single Cat.6a/7 cable.

It provides advanced signal management, ensuring stability and high performance even in the most complex installations. It supports all common professional audio formats, resolutions up to 4K and #64; 30 4:4:4 and 4K and #64; 60 4:2:0, as well as features such as HDCP 2.2, CEC, and 3D pass-through.

Supports 4K/2K and #64; 24/25/30 Hz (RGB 4:4:4 and amp; YUV 4:2:2) and 4K/2K and #64; 60 Hz (YUV 4:2:0) based on the display and #039;s EDID4K/2K and 4K UHD transmission up to 35 m via CAT5e/6 and up to 60 m via CAT6a/7

• Main features
• HDCP 2.2 compliant
• HD video and audio support, Po. H, and bidirectional IR and RS-232 control
• Resolutions from VGA to WUXGA, 480i ~ 1080p, 4K UHD and #64; 24/25/30 Hz (RGB 4:4:4 and amp; YUV 4:2:2), 4K UHD and #64; 60 Hz (YUV 4:2:0)
• Format pass-through HD audio: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Digital Plus, Dolby True. HD, Dolby Atmos, DTS HD Master Audio
• Supports OAR (Optical Audio Return), HDCP repeating and CEC functions, and 3D signals
• User benefits
• Reduced cabling thanks to the simultaneous transmission of AV, control, power, and audio return over a single cable
• Greater signal stability thanks to HDBase. T LITE technology
• Compatibility with advanced audio formats for integration into home theater and professional AV systems
• Simplified installation thanks to Po. H, eliminating the need for a power supply on the receiver
• Management of audio return via OAR without the need for additional cabling
• Areas of use
• Conference rooms and meeting rooms
• Corporate environments
• AV installations
• All applications requiring reliable video extension up to 60 m with optical audio return
