CYP QU-4-4K22

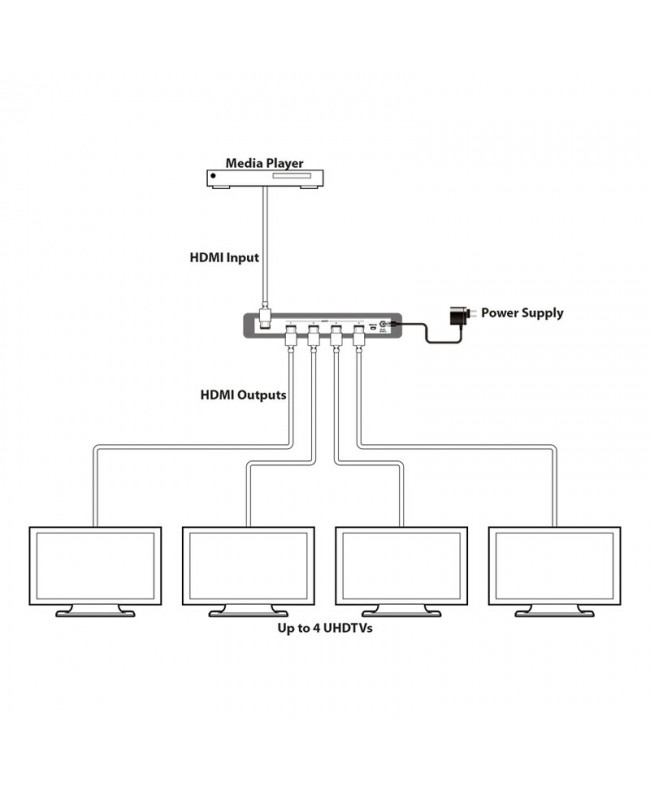

The QU-4-4K22 is a 1 x 4 HDMI distribution amplifier designed to handle video signals up to 4K UHD 18 Gbps, including 10- and 12-bit HDR, 4K and #64; 60 Hz 4:4:4 and 3D content. HDMI sources can be distributed simultaneously to four outputs while maintaining the highest video and audio quality, with support for LPCM 7.1, Bitstream, and Advanced HD Bitstream.

Each output features an independent HDCP engine, ensuring stability even when using displays with different capabilities. The system can automatically apply 4K to 1080p downscaling or color space conversion (4:4:4 to 4:2:0) based on the EDID requirements of each connected display. The unit also supports active source CEC control for periodic resetting of input selection on compatible displays.

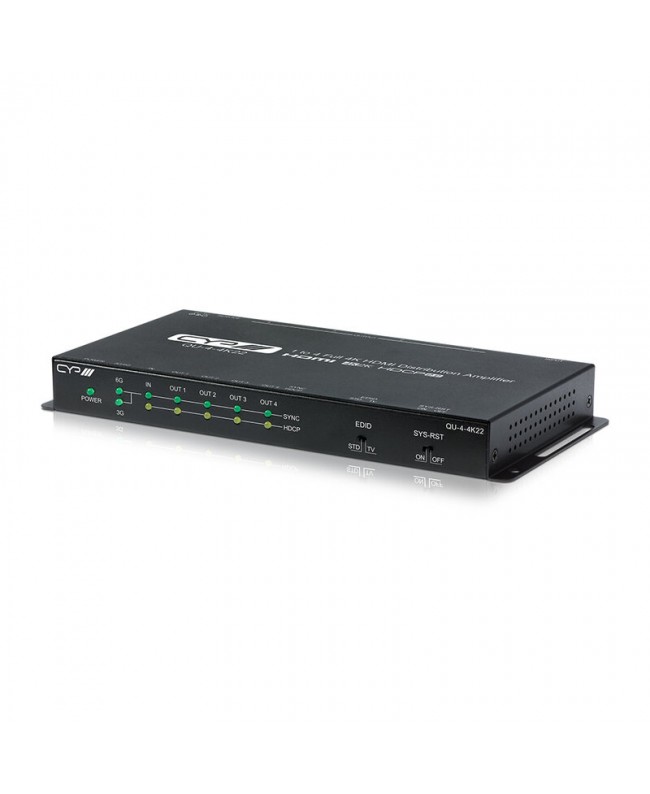

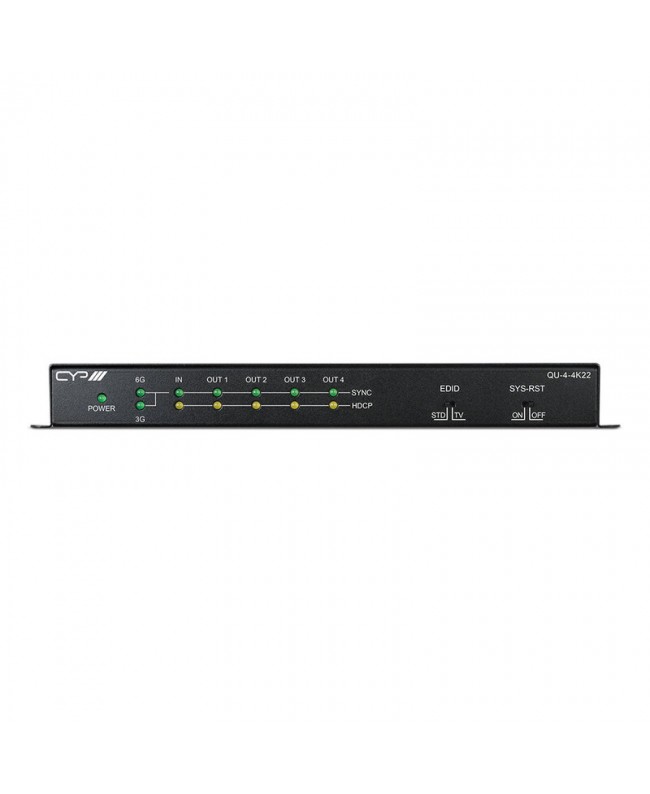

Control of the main functions is via front-panel switches with LED status indicators, simplifying visual verification of operation in installations and multi-display AV systems.

• Main features
• HDMI compliant with HDR 6G (HDR10/Dolby Vision support), 3D, and 4K and #64; 60Hz, DVI 1.0 compatible
• HDCP 2.2 compliant and backwards compatible with HDCP versions

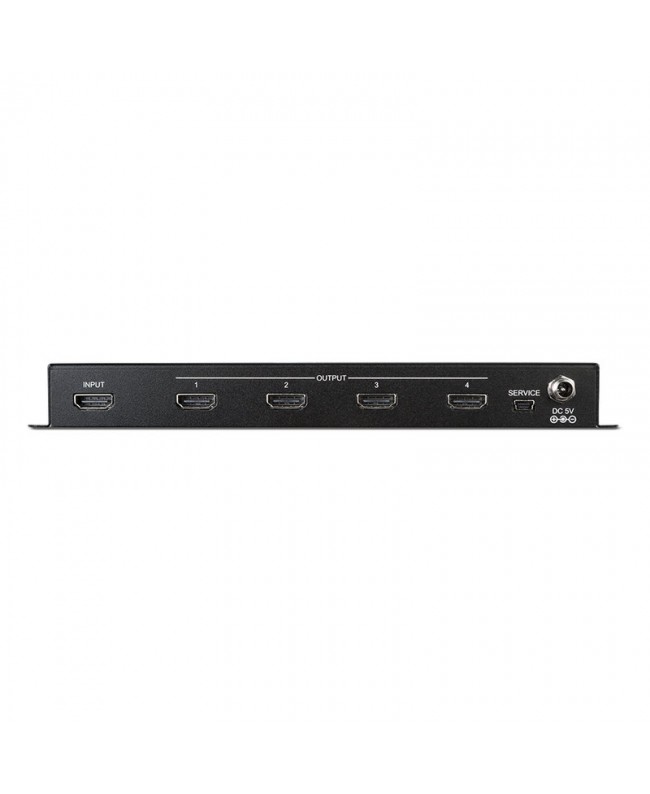

• 1 X HDMI input and 4 x HDMI outputs
• Supports video signals up to 4K UHD (18 Gbps, 4K and #64; 50/60Hz 4:4:4, 8-bit)
• Supports current 10-bit and 12-bit HDR (High Dynamic Range) formats
• Supports LPCM 7.1, Bitstream, and Advanced HD Bitstream audio pass-through
• Automatic 4K to 1080p downscaling and color space conversion (4:4:4 to 4:2:0) for each output based on the EDID of the connected display
• Independent HDCP management engine for each output ensures stable performance
• Options Easy-to-use EDID
• Support for System Reset CEC
• Control via front-panel switch
• User benefits
• Stable signal distribution even with different generation displays
• Reduces compatibility issues with independent HDCP management
• Easy installation thanks to front-panel controls with LED indicators
• Easy integration into AV systems
• Reliable operation in multi-display configurations
• Areas of use
• Meeting rooms and corporate environments
• Classrooms, educational facilities
• Shops, showrooms and digital signage installations
• Hotels, conference centers and hospitality facilities
• Video control rooms, broadcast studios and production environments
• Control rooms and monitoring rooms
• Live events
• Rental
