CYP QU-10-4K22

The QU-10-4K22 is a 1 x 10 HDMI splitter designed to split a single HDMI signal into ten identical outputs, while maintaining full compatibility with 4K and #64; 60 4:4:4, HDMI 2.0, and HDCP 2.2 signals.

It supports high-definition audio formats, 3D signals, and distances of up to 20 meters for 1080p thanks to buffered outputs, with the option of cascading up to three levels. It includes EDID functions, Standard/TV mode, and System Reset via CEC for automatic display input management, with front-panel indicators to monitor input and output status.

• Main features
• HDMI 2.0, HDCP 2.2 and DVI compliant
• HDMI splitter 1 to 10
• Supports UHDTV resolutions up to 4K2K: 3840 x 2160 and #64; 24/25/30/50/60 Hz and 4096 x 2160 and #64; 24/25/30/60 Hz
• High-definition audio passthrough: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby True. HD, DTS-HD Master Audio, and Dolby Atmos
• System Reset function (CEC active source command) that allows the unit to automatically reset the TV to its default HDMI input
• The HDMI input supports and #34;Standard and #34; mode and and #34;TV and #34; mode
• EDID settings

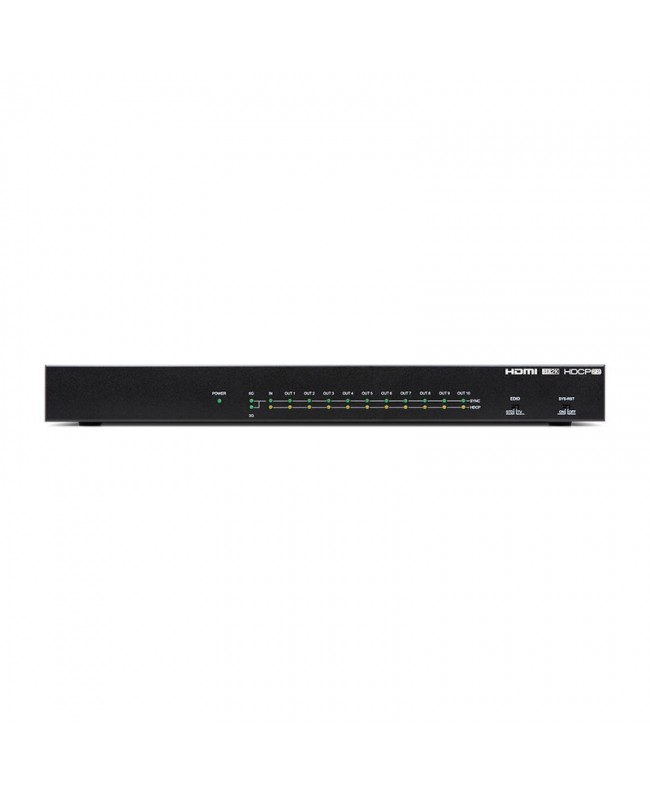

• Input and output status is indicated on the front panel
• Users benefits
• Reliable signal distribution thanks to buffered outputs
• Reduces video and audio compatibility issues with integrated EDID management
• Immediate indication of input and output status
• Full support for 4K formats and HD audio for modern and future-proof installations
• Simplified display automation thanks to the System Reset function via CEC
• Easily expand the system thanks to cascading up to three levels
• Areas of use
• HDMI distribution in professional installations
• Digital Signage
• Conference rooms and meeting rooms
• Classrooms and educational environments
• Corporate multi-display installations
