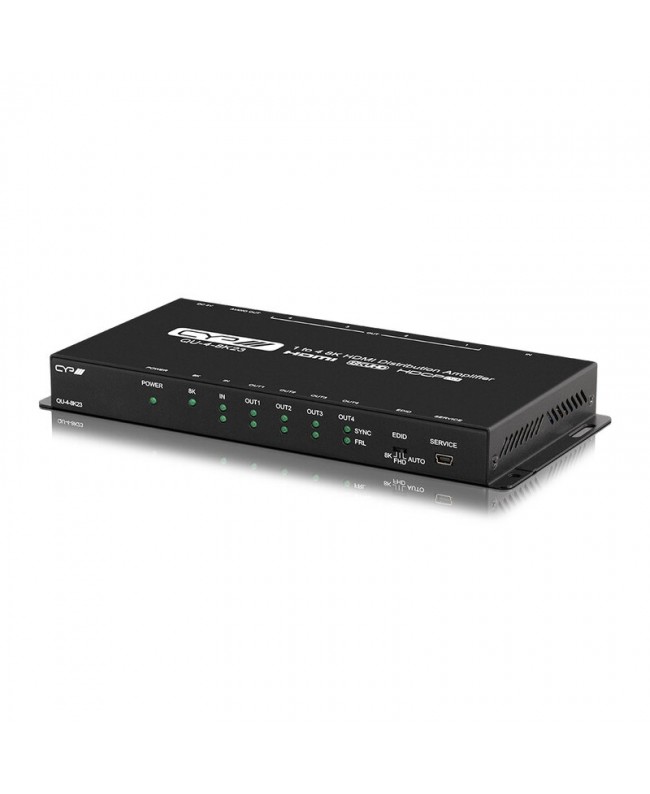

CYP QU-4-8K23

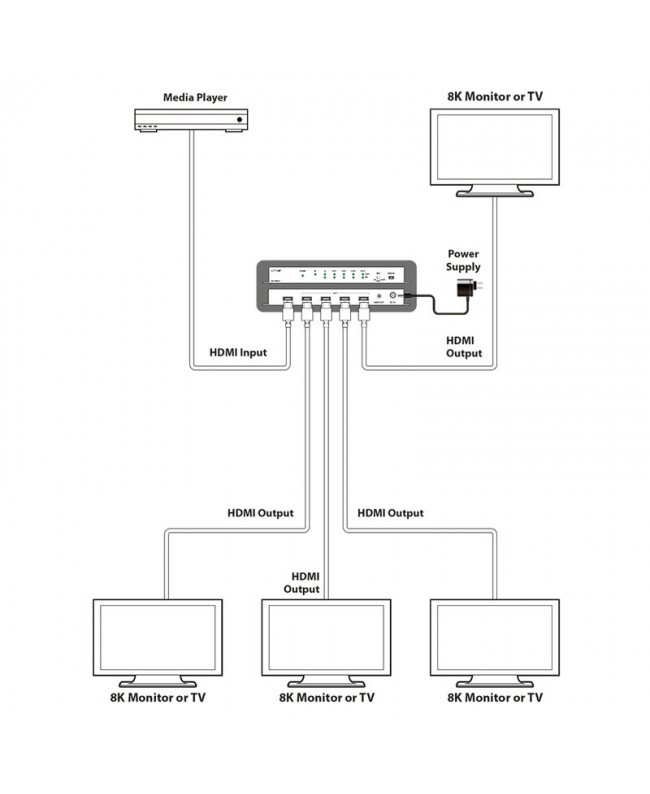

The QU-4-8K23 is a 1 x 4 HDMI distribution amplifier (splitter) designed to handle signals up to 8K UHD at 48 Gbps, compliant with HDMI 2.1 and HDCP 2.3. A single HDMI source can be distributed to four displays while maintaining the highest video quality, with support for resolutions up to 8K and #64; 30 Hz 4:4:4 10-bit and the latest 10-bit and 12-bit HDR formats.

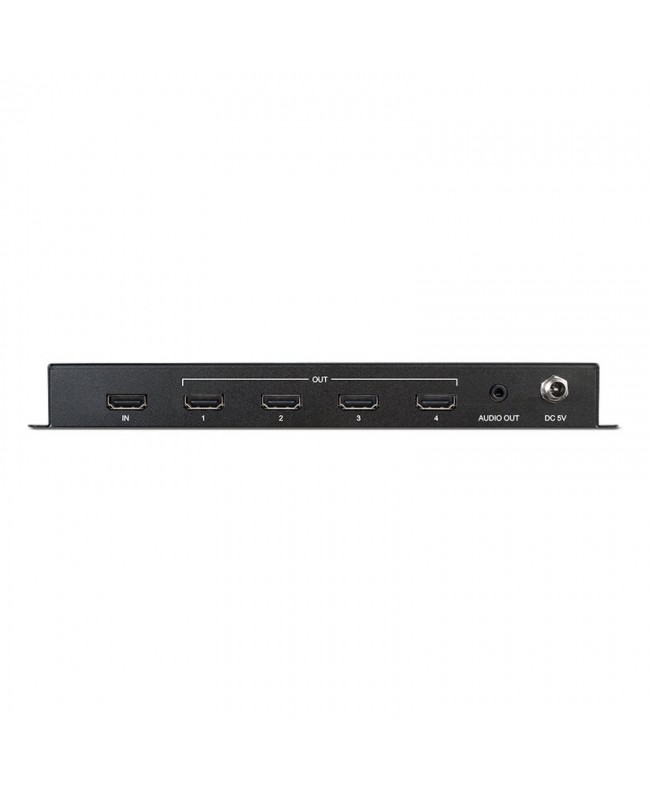

The device supports pass-through of major audio formats, including up to 8-channel LPCM, Bitstream, and Advanced HD Bitstream, and integrates a high-quality DAC that provides a 3.5 mm analog stereo output for quick audio monitoring from LPCM 2.0 sources.

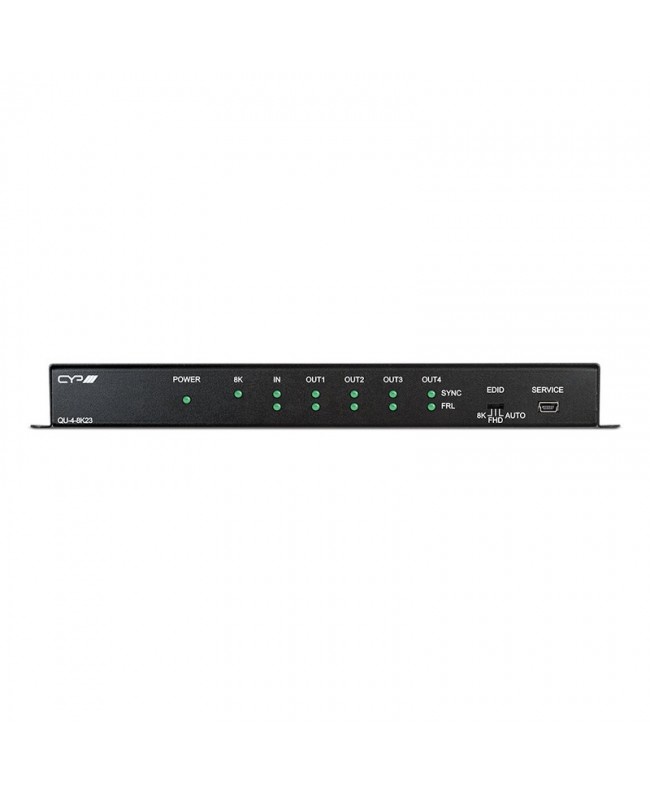

EDID management is simplified with presets selectable from the front panel, allowing you to adapt the source behavior to the capabilities of the connected displays. Front-panel controls and status LEDs provide instant system verification, while the compact form factor facilitates integration into professional and residential AV installations.

• Main features
• HDMI 2.1 and DVI 1.0 compliant
• HDCP 2.3 and HDCP 1.x compliant
• 1 X 4 HDMI splitter
• Supports video signals up to 8K UHD 48 Gbps 8K and #64; 30 Hz 4:4:4 10-bit
• Supports current 10-bit and 12-bit HDR formats
• Supports pass-through of LPCM 8-channel Bitstream and Advanced HD Bitstream audio formats
• High-quality DAC with analog stereo output via 3.5 mm jack for LPCM 2.0 sources
• Easy-to-use EDID options
• EDID settings controllable via a front-panel switch
• User benefits
• Distribute high-bandwidth 8K signals even with heterogeneous displays
• Reduces compatibility issues thanks to simplified EDID management
• At-a-glance operational status monitoring via front-panel LEDs
• Quick integration into professional AV systems thanks to Plug and amp; Play design
• Built-in analog audio output for quick signal monitoring
• Areas of use
• Professional and residential AV installations
• Corporate (meeting rooms, etc.)
• Showrooms and retail spaces with 8K content
• Broadcast and post-production studios
• Live events
• Rental
• Multi-display monitoring and distribution systems
