Omnitronic PAP-650 PA Amplifier 100 V Amplifiers
  • -22%

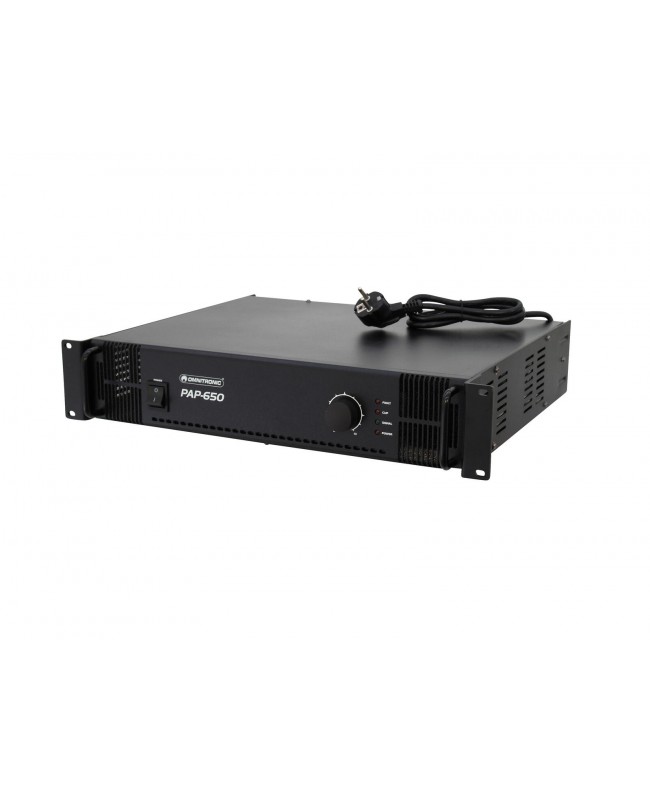

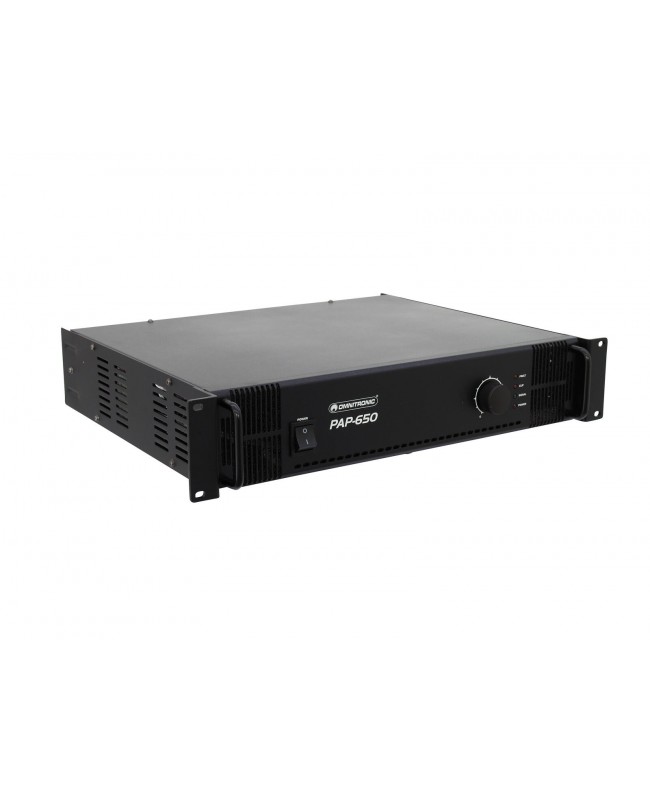

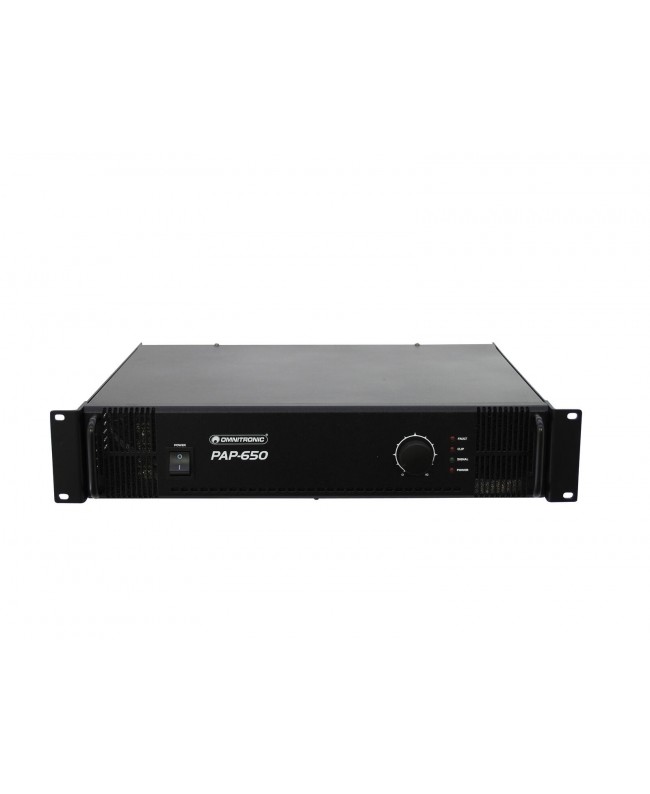

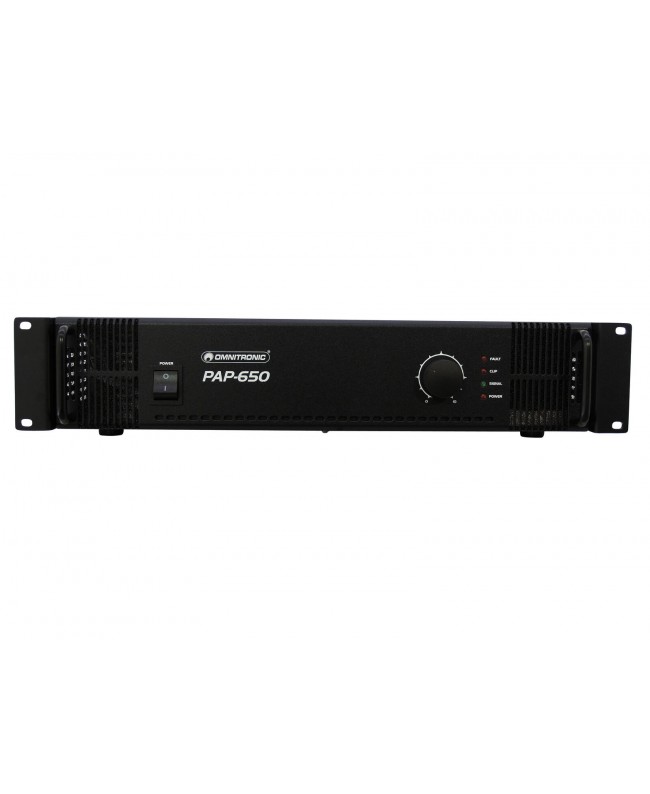

Omnitronic PAP-650 PA Amplifier

€730.00
€570.00 -22%
Tax included
Lowest price within the last 30 days: €570.00

PA power amplifier, 650 W RMS

Qty

In Stock

Delivery

Do You want Your order by Monday, 06/07/2026? Order within 10 hours and 38 minutes

Free shipping

Compare

wishlist

Omnitronic PAP-650 PA Amplifier



  • 1 line input (optionally XLR or 6.3 mm jack)
  • 1 feed-through output (optionally XLR or 6.3 mm jack)
  • Master control
  • LED indicators for power, level, clip and fault
  • Load detection and power control
  • (19) 48.3 cm rack installation 2 U
  • Highly efficient air flow from front to rear
  • The device is cooled by temperature-controlled fan
  • For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms

Scope of delivery

  • 1 x amplifier
  • 1 x user manual
  • Power supply: 230 V AC, 50 Hz
  • Protection class: Protection class I
  • Output power: 650 W RMS
  • Power connection: Fixed power supply cord with safety plug
  • Cable length: 1.2 m
  • Device fuse: 5 x 20 mm, T 8 A fuse replaceable
  • Frequency range: 80 - 16000 Hz
  • S/N ratio: 90 dB line
  • THD: 0.5 % at 1 kHz
  • Cooling: 1 x temperature-controlled fan , air flow from front to rear
  • Impedance: 4-16 ohms; public address systems 100V; Public address systems 70V
  • Housing color: Black
  • Circuitry: Class AB
  • Control elements: Power switch, level control
  • Controls: Softstart; overheat; overload; short-circuit; DC voltage
  • Status LED: Signal, power, fault, clip

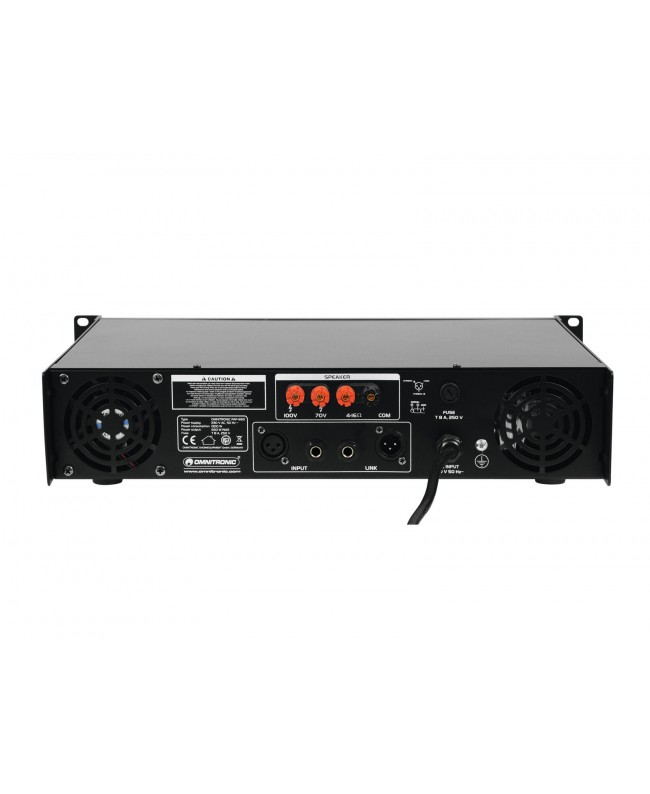

  • Connections: Input: line via 1 x 6.3 mm jack socket (mono) mounting version, Input: line via 1 x 3-pin XLR 0.3 V, Output: line via 1 x 6.3 mm jack socket (mono) mounting version, Output: line via 1 x 3-pin XLR, Output: speaker via 4 x screw terminal
  • Housing design: (19) 48.3 cm rack installation 2 U
  • Dimensions: Width: 48.3 cm, Depth: 38.5 cm, Height: 8.9 cm
  • Weight: 15.00 kg

80709820

Data sheet

Color
Black
Giorni di elaborazione
4
