Audiophony PA PMX34 Installation Mixers
  • -22%
  • New

Audiophony PA PMX34

€767.00
€598.00 -22%
Tax included
Lowest price within the last 30 days: €598.00

Mixer / zoner, 3 inputs 4 outputs, with multimedia reader

Qty

In Stock

Delivery

Do You want Your order by Monday, 25/05/2026? Order within 11 hours and 1 minutes

Free shipping

Compare

wishlist

Audiophony PA PMX34

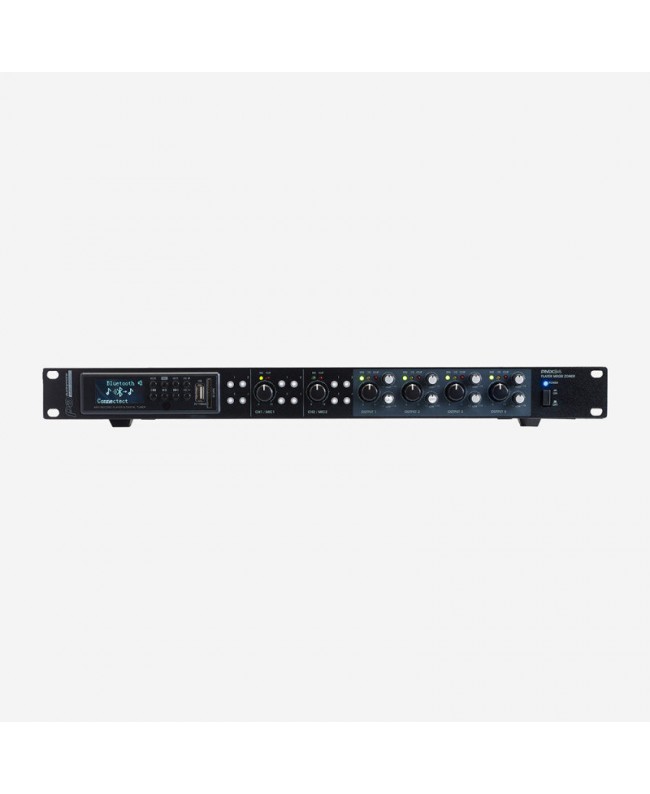

The PMX34 mixer-zoner is designed for professional installation and offers a media player, 2 mono or stereo MIC / line inputs, tone control on each input and 4 outputs. Each input can be sent independently to each of the 4 zones, or to all 4 at the same time, in order to offer maximum versatility.

  • Main features

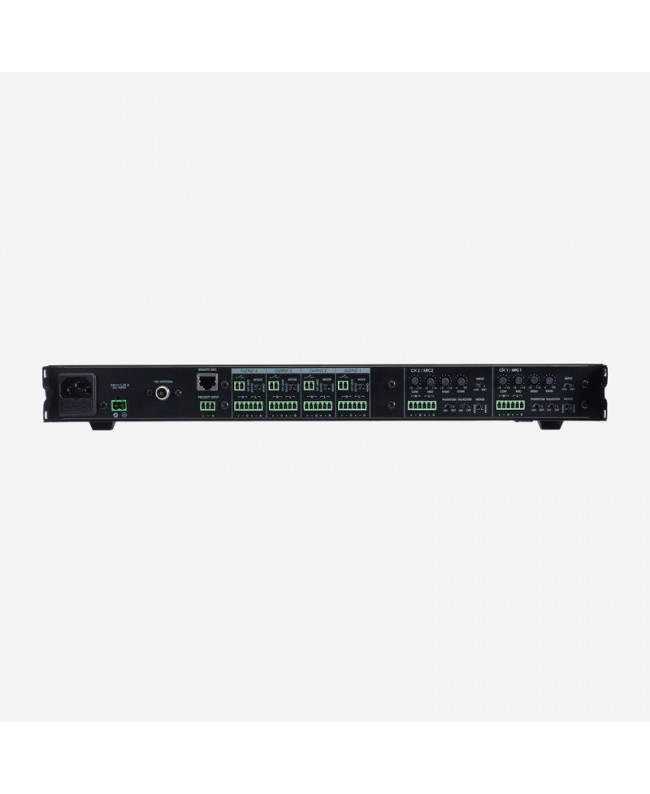

  • Inputs: 2 balanced MIC / line in, Euroblocks connectors, mono or stereo
  • 1 X USB / SC / BT / tuner media player /recorder
  • 4 Mono balanced outputs on Euroblock connectors
  • Priority microphone
  • Phantom power: inputs 1 and 2
  • Gain and tone control (3 bands) on channels 1 and 2
  • Gain adjustment on all inputs
  • RJ45 connector for MIC-DESK4 micro control desk
  • Mute contact on outputs 1 to 4
  • Assignment of zones 1 to 4 on each input channel
  • Signal and clip display on each input channel
  • Output level display per zone via VU meter 3 LEDs
  • 2-Band front-panel equalization for outputs 1 to 4

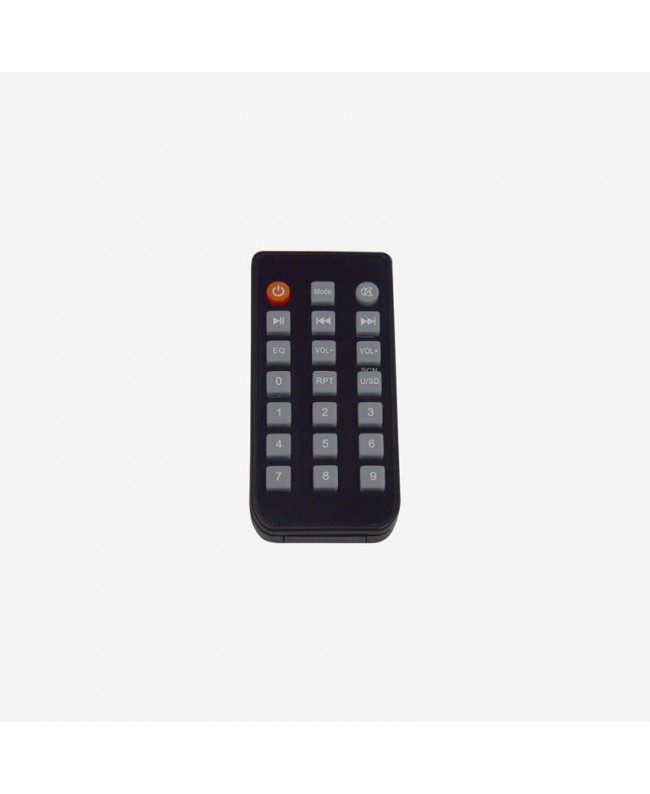

  • Remote control supplied
  • Technical characteristics
  • Power and output impedance: balanced outputs, OUTPUT 1 to 4, 0 dB / 600 ohm

Input sensitivities

  • MIC channels - 50 dB to -16 dB / 20 kohm
  • Line channels: -20 dB to +4 dB / 20 kohm
  • T.H.D: less than 0.1%
  • Frequency response: 20 Hz - 20 kHz +-1 dB
  • Equalization of inputs 1 and 2:
  • HIGH (12 kHz): +-15 dB
  • MID (2.5 kHz): +-15 dB
  • LOW (80 Hz): +-15 dB

Output equalization

  • HIGH (10 kHz): +-15 dB
  • LOW (100 Hz): +-15 dB
  • Crosstalk: more than 70 dB
  • Phantom power supply: +-15 VDC (channels 1 and 2)
  • Rescue power supply: +24 VDC / 350mA
  • Power supply: 220 - 240 VAC 50/60 Hz or +24 VDC
  • Power consumption: 20 W
  • Dimensions: 48.2 x 4.4 x 32 cm
  • Weight: 3.5 kg

HIT-H11017
