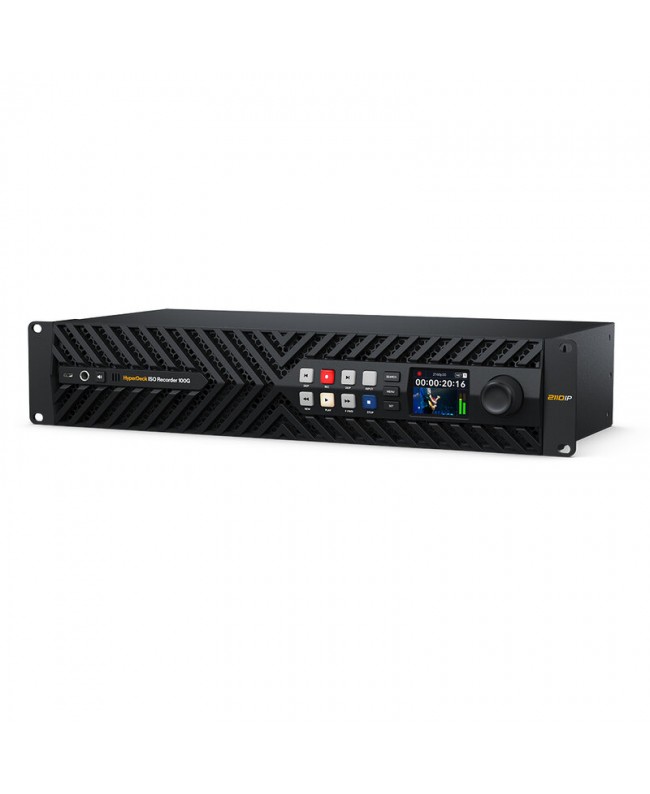

Hyper. Deck ISO Recorder 100G is designed for SMPTE-2110 based broadcast workflows. It can simultaneously record up to eight independent Pro. Res video streams directly to high speed network storage. 100G Ethernet allows all eight channels of video to be transported over a single IP link, allowing for seamless integration into professional IP infrastructures with full support for NMOS, PTP and SMPTE-2110 standards for stream synchronization, discovery and routing.
The system is optimized for complex multi-camera productions. Each stream is recorded as a separate Pro. Res file with full metadata and synchronized timecode, allowing for instant multi-camera editing in Da. Vinci Resolve. Integration with Da. Vinci Resolve Replay also allows the recorder to be used as a live replay engine, allowing you to review action, create clips and manage playlists quickly and easily, making it ideal for sports events and live productions.

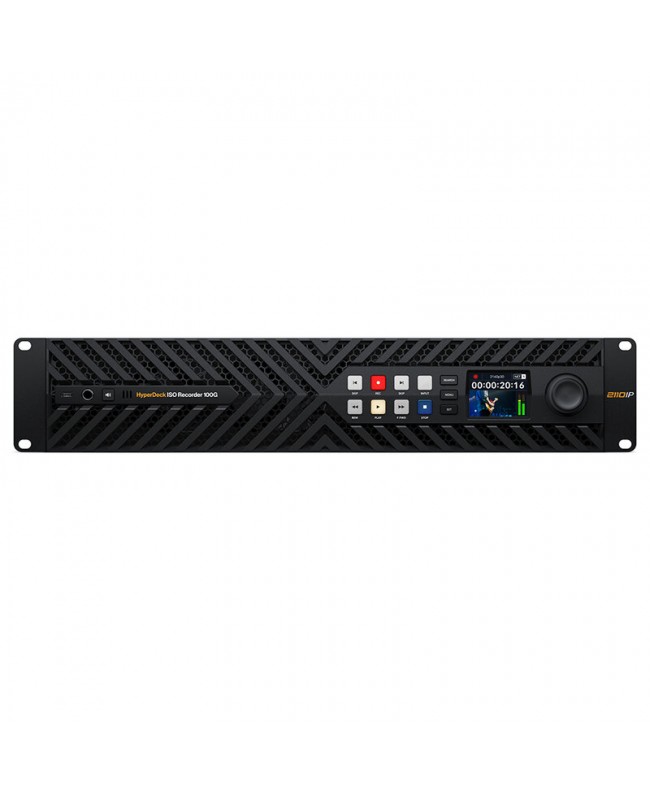

The front panel features a 2.2 and #34; LCD display that shows video, audio, standard, and Time Code, along with an electronic search dial for quickly scrolling through inputs and monitoring streams. There and #039;s a headphone jack and a built-in mono speaker for direct audio monitoring, with a multifunction button for muting or adjusting the volume using the search dial.
SDI and HDMI monitoring outputs allow you to view signals in real time, while the optional 8 x 12G SDI expansion port allows you to integrate traditional SDI sources into IP workflows. The built-in hardware encoder can encode eight Ultra HD streams simultaneously in Pro. Res with absolute stability, ensuring consistent quality and reliability even on long production runs. Recording directly to network storage eliminates the limitations of local media and allows you to work on NAS or shared servers, simplifying file management and speeding up the entire post-production process.
User benefits
Record eight ISO streams simultaneously in Pro. Res with pristine quality Broadcast
Native SMPTE-2110 integration with 100G Ethernet
Compatibility with Da. Vinci Resolve Replay for quick clip management during sports events and live productions
Immediate monitoring via front-facing LCD, headphone jack, built-in speaker, and dedicated SDI/HDMI outputs
Built-in hardware encoder
Optional 8x12G SDI expansion for integrating traditional SDI sources into hybrid IP workflows
Areas of use
Multi-camera productions requiring simultaneous ISO recording
Sports events and live shows
SMPTE-2110-based broadcast control rooms
TV studios and OB vans
Network storage-based workflows
Technical characteristics
Connections

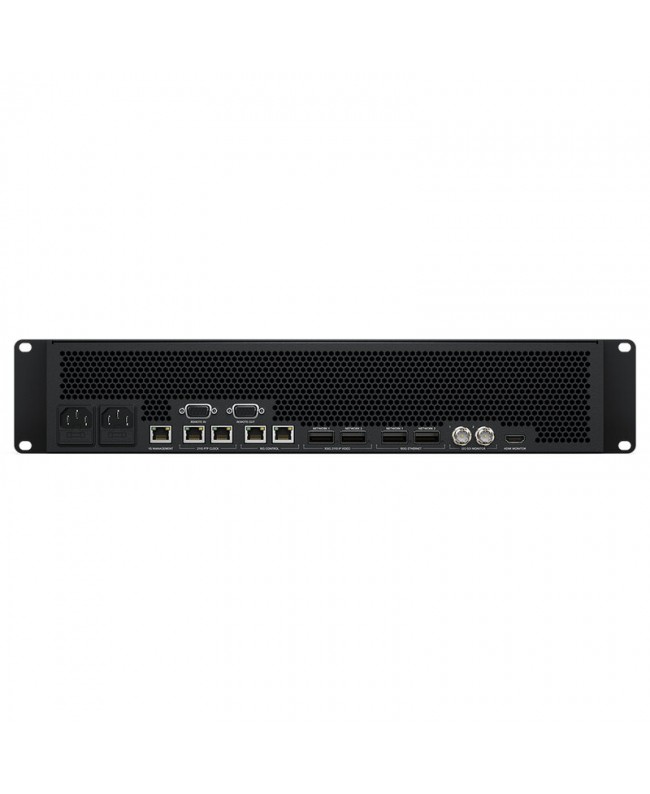

100G 2110 IP networks: 2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks
Senders and receivers per 100G pair: 8 x Ultra HD or 8 HD
100G Ethernet: 2 x 100G QSFP28 connections
10G control network: 2 x 10G RJ45 Ethernet for NMOS control
Reference network: 2 x RJ45 Ethernet for 2110 PTP clock
1G management: 1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates
SDI monitor outputs: 2
HDMI monitor outputs: 1
SDI rates: 1.5G, 3G, 6G, 12G
Analog audio outputs: 1 x 6.35 mm headphone jack
SMPTE ST 2110 IP audio inputs: up to 64 CH embedded audio on each 2110 IP video stream over 100G Ethernet
SMPTE ST 2110 IP audio outputs: up to 64 CH embedded audio on each 2110 IP video stream over 100G Ethernet
SDI audio outputs: 16 channels embedded audio
HDMI audio outputs: 8 channels embedded audio
Computer interface: 1 x USB-C for HyperDeck Setup utility and software updates
Power: 2 x IEC C14 power inputs
Standards
HD video standards: 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60
Ultra HD video standards: 3840 x 2160p 23.98, 3840 x 2160p 24, 3840 x 2160p 25, 3840 x 2160p 29.97, 3840 x 2160p 30, 3840 x 2160p 50, 3840 x 2160p 59.94, 3840 x 2160p 60
4K DCI video standards: 4096 x 2160p 23.98 DCI, 4096 x 2160p 24 DCI, 4096 x 2160p 25 DCI, 4096 x 2160p 29.97 DCI, 4096 x 2160p 30 DCI
Supported HDMI formats: 1280 x 720p 50, 1280 x 720p 59.94, 1280 x 720p 60, 1920 x 1080i 50, 1920 x 1080i 59.94, 1920 x 1080i 60, 1920 x 1080p 23.98, 1920 x 1080p 24, 1920 x 1080p 25, 1920 x 1080p 29.97, 1920 x 1080p 30, 1920 x 1080p 50, 1920 x 1080p 59.94, 1920 x 1080p 60, 3840 x 2160p 23.98, 3840 x 2160p 24, 3840 x 2160p 25, 3840 x 2160p 29.97, 3840 x 2160p 30, 3840 x 2160p 50, 3840 x 2160p 59.94, 3840 x 2160p 60
SMPTE 2110-40 (Ancillary Data): full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata
Codec: Blackmagic IP10 codec optional for 2160 x 3840p 59.94 and 2160 x 3840p 60 as 2110 IP video
Precision Time Protocol: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
NMOS: IS-04 discovery and registration: v1.3.2, peer-to-peer via mDNS/DNS-SD
NOMS IS-05 connection management: v1.1.2
NMOS BCP-002-01: natural grouping
NMOS BCP-004-01: receiver capabilities
Audio
Headphones: front panel headphone outputs active monitor
Built in speaker: front panel mono speaker outputs active monitor
Audio controls: front panel button functions as single press for momentary speaker ON, double press for speaker ON/OFF plus press and hold for volume control using search dial
Processing
ProRes encoder: built-in hardware encoder supports up to 8 x Ultra HD simultaneous real-time ProRes encoding
Media
Media: records over 100G Ethernet to network storage
Supported codecs
Video codecs: ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 3840 x 2160p 60
Audio codecs: PCM 2, 4, 8 or 16 channels
Control
Built in control panel: 16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 color display
External control: RS-422 deck control, 2110 IP video start/stop, Time Code run. Includes Blackmagic HyperDeck Ethernet Protocol and REST API for HyperDeck. Supports remote FTP and HTTP Web Media Manager
Displays
Built in 2.2 LCD for monitoring video, audio, video standard and Time Code plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel
High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.
