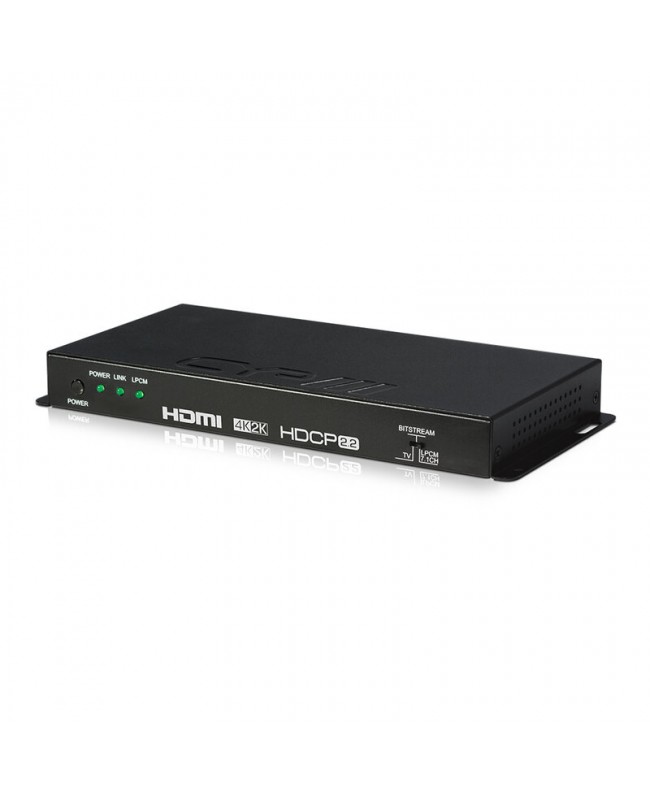

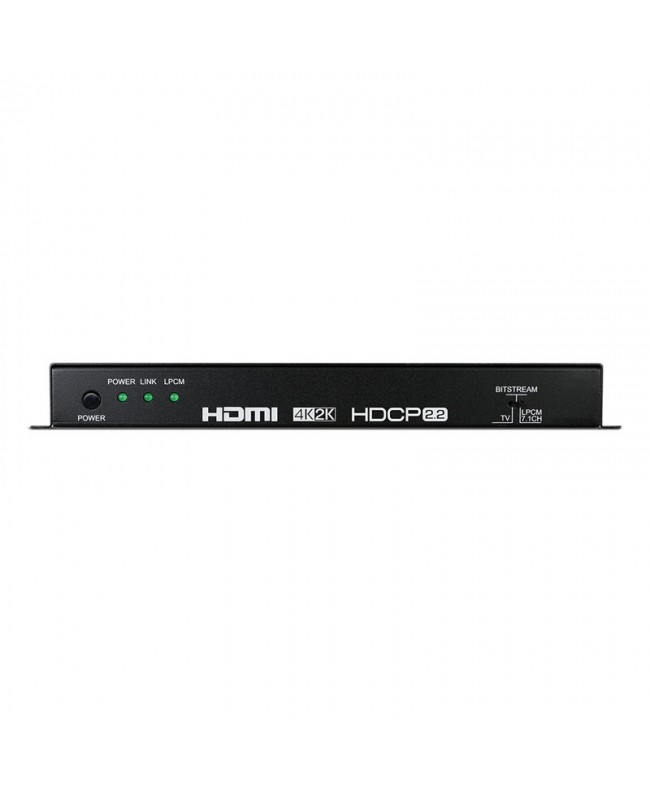

CYP AU-11SA-4K22

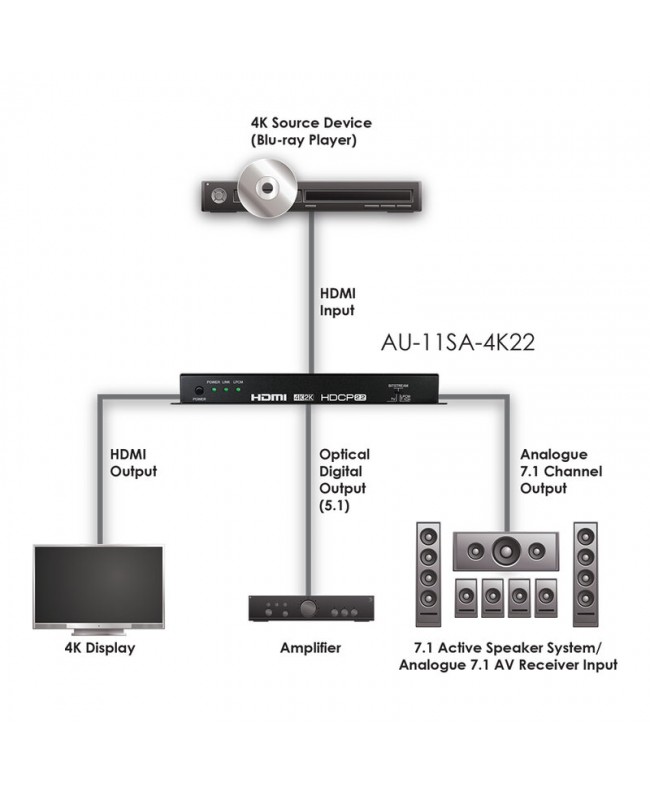

4K HDMI audio de-embedder designed to extract stereo or multi-channel audio from an HDMI source and convert it to 7.1 analog outputs, 5.1 optical output, and HDMI bypass output. It supports high-resolution audio formats such as LPCM 7.1, Dolby True. HD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with sampling rates up to 192 k. Hz.

The device is compatible with 4K and #64; 60 4:4:4 video, HDMI 2.0, and HDCP 2.2, and features an integrated HDMI repeater to ensure maximum signal stability.

• Main features
• Compatible with HDMI 2.0, HDCP 2.2, and DVI
• HDMI audio decoder with built-in repeater
• Supports resolutions up to 4K x 2K 60Hz YUV 4:4:4
• Optical output supports LPCM, Dolby Digital, and DTS up to 5.1
• HDMI bypass output supports Dolby True. HD, Dolby Digital Plus, and DTS-HD Master Audio

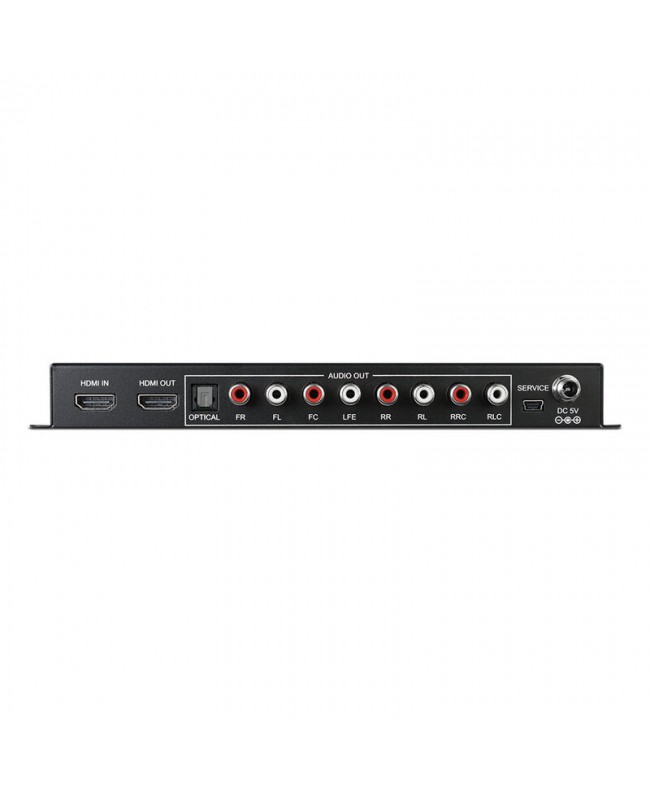

• Analog outputs support LPCM 2.0, 5.1, and 7.1
• Audio sampling rate up to 192 k. Hz
• HDMI High-Speed Audio (HBR) support
• User benefits
• Allows connection to amplifiers and multi-channel analog audio systems that are not compatible with the HDMI interface standard
• Ensures full compatibility with UHD 4K 60 content and high-resolution audio formats
• 5.1 Optical output for older soundbars and AV receivers
• HDMI bypass output to preserve the original video signal No degradation
• Maximum signal stability thanks to the integrated HDMI repeater
• Areas of use
• Home theater installations with analog multichannel amplifiers
• Professional AV systems requiring 7.1 audio extraction from HDMI sources
• Conference rooms and corporate environments with advanced audio/video routing
• Integration of soundbars or AV receivers via 5.1 optical output
• Setups requiring separation of multichannel audio signals from 4K video
