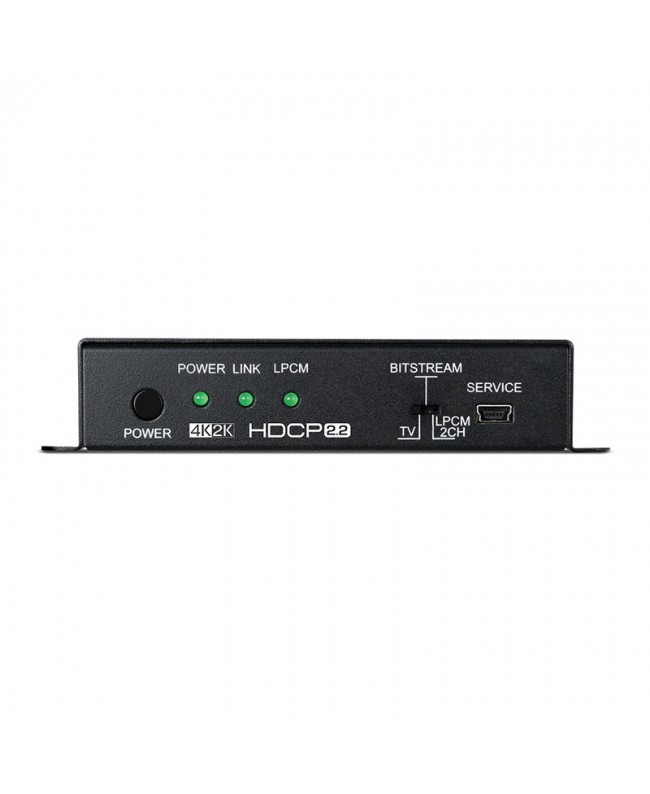

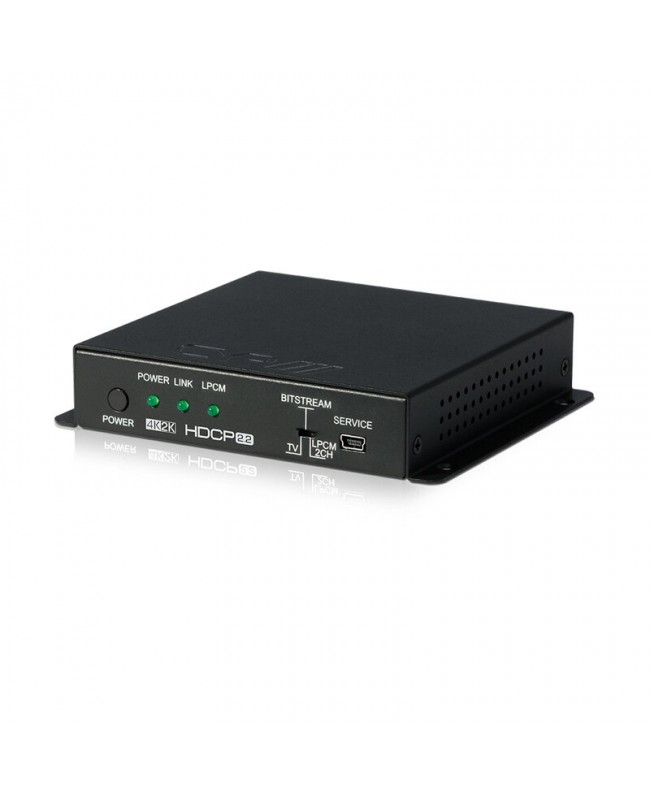

CYP AU-11CD-4K22

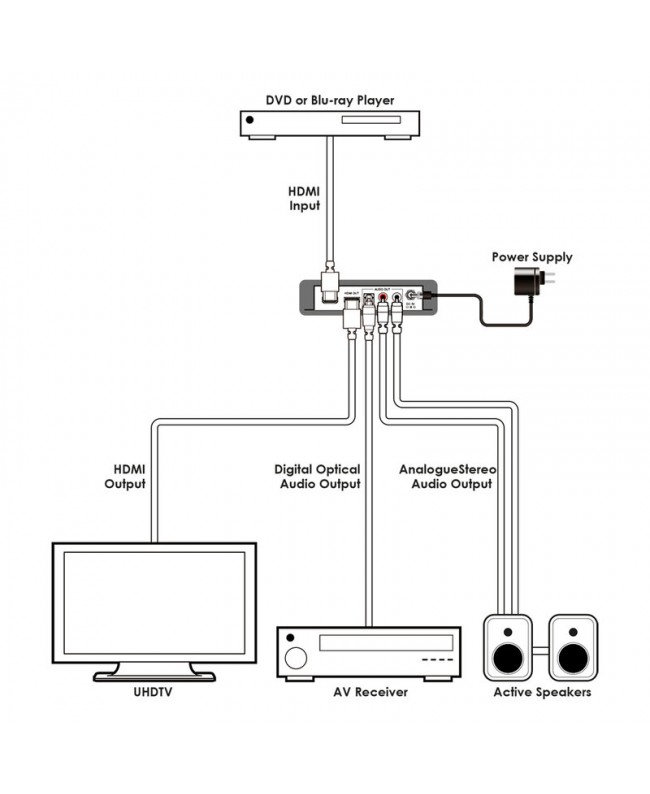

4K HDMI audio de-embedder with built-in repeater, designed to extract digital or analog audio from an HDMI signal while maintaining full compatibility with 4K 60Hz 4:4:4, HDMI 2.0, and HDCP 2.2 video. Installed between the source and display, it allows you to select the desired audio format and send it via the optical S/PDIF output or stereo RCA outputs, without altering the UHD video stream.

The internal HDMI repeater also allows you to extend the transmission distance by up to an additional 5 meters at 4K 60.

• Main features
• HDMI 2.0, HDCP 2.2, and DVI compliant
• Supports resolutions up to 4K x 2K 60 Hz YUV 4:4:4
• Supports bypass of high-resolution audio formats: LPCM 7.1, Dolby True. HD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio
• HDMI audio sampling up to 192 k. Hz
• S/PDIF optical audio sampling up to 192 k. Hz
• Supports HDMI and gt; optical or analog stereo de-embedding
• Supports HBR (High Bit Rate) audio
• Compatible with HDMI and gt; DVI conversion via adapter

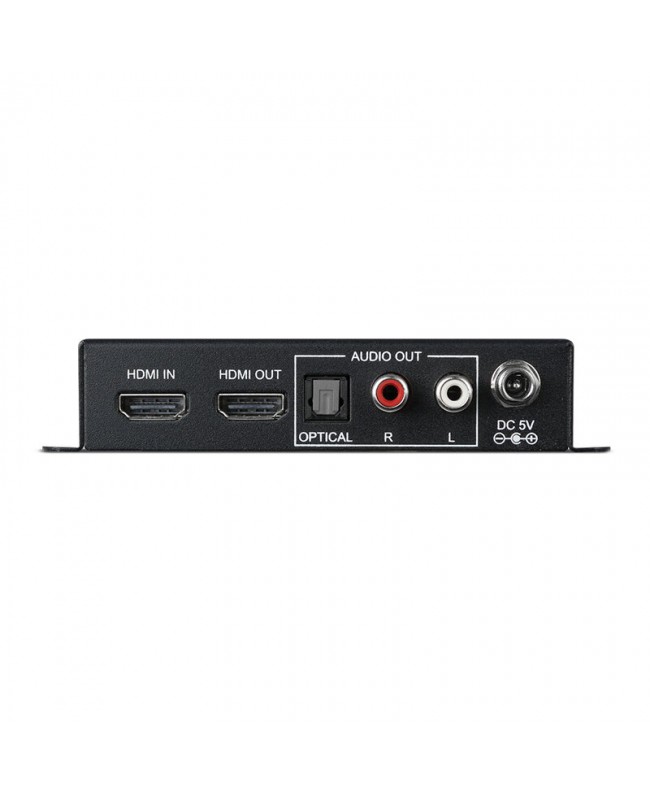

• Audio outputs: L/R stereo and optical S/PDIF
• User benefits
• Full compatibility with UHD 4K 60 sources and HDCP 2.2-protected content
• Supports all Major home theater audio formats, including high-resolution ones
• Built-in HDMI repeater to extend signal distance
• Compact and rugged metal design, easy to integrate into installations
• Areas of use
• Conference rooms and meeting rooms
• Professional AV integration with HDMI matrix switchers and matrices
• Home theater
• Digital signage with separate audio/video routing
• Installations where audio needs to be sent to external mixers, amplifiers, or DSPs
