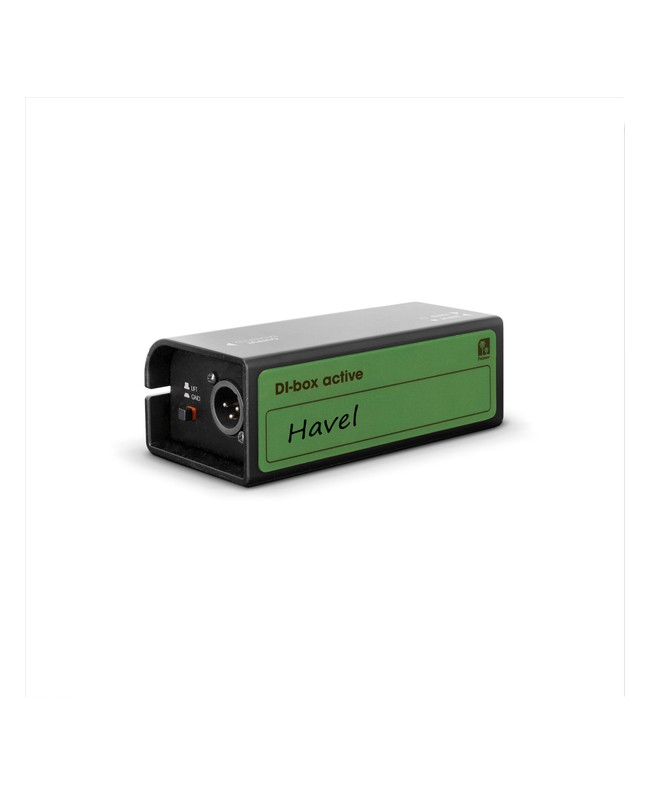

Palmer RIVER havel Active DI Boxes
  • New

Palmer RIVER havel


€93.00
Tax included

DI Box active


Qty

In Stock

Delivery

Do You want Your order by Wednesday, 04/02/2026? Order within 3 hours and 47 minutes



wishlist

Palmer RIVER havel



Do you want to capture the pure signal of a guitar, bass or electric piano, with all its brilliance and without tonal alterations? An active DI box is the best solution-but only if it has a structure of the quality of the Palmer havel DI box. Because of its low-noise active circuitry, the havel has a higher input impedance than a passive DI box. That is, the sound of the instrument is captured without loss of treble or bass. High input impedance is especially important in interacting with magnetic pickups of electric guitars, electric basses, and electromechanical electric pianos (e.g., Rhodes), but also with piezoelectric (passive) pickups of acoustic instruments. The Palmer havel DI Box, however, is also perfectly suited for synthesizers and other electronic keyboards because it provides enough headroom to handle even high-level inputs without unwanted distortion. The Palmer havel of course has a THRU output for transmitting the input signal to the instrument's power amp. With 30 dB pre-attenuation enabled, you can loop the Palmer havel between the power amp output and the speaker if you want to hear the power amp sound instead of the "original" instrument signal. The balanced, low-impedance output signal of the Palmer havel is resistant to interference. Therefore, long cable runs are possible without losing sound quality. Thanks to the built-in transformer, the XLR output is galvanically isolated. Any ground buzz can be easily eliminated by pressing the ground lift switch. A 48 V phantom power supply unit or a standard 9 V battery can be used as the power supply. We have the assurance that you have spent a lot of hours looking for YOUR sound and invested time and money to get your instrument to the right sound. The Palmer havel ensures faithful and interference-free sound transmission. That is, the sound reaches the listener exactly as nature intended!

  • General: Type
  • Included Accessories: Rubber feet, Tour label
  • Isolated transformer: Yes
  • 1: 1
  • Ground Lift: Yes
  • 20: 20,000 Hz
  • Number of Inputs: 1
  • Number of outputs: 1
  • Number of channels: 1
  • Inputs: Input signal type
  • Input connector types: 6.3 mm Jack TS
  • Number of instrument inputs: 1
  • Maximum input level: 9.5 DBu
  • Input impedance: 500 KΩ
  • Input pad: 0 DB, 30 dB
  • Output signal type: Balanced
  • Output connector types: XLR 3-pole male
  • Connected outputs per channel: 1
  • 4.5 DBu: Balanced output impedance (1 kHz)
  • Signal processing: Min. SNR (+4 dBu, 22 kHz BW, unity, unweighted)
  • Max. IMD (SMPTE, 7 kHz, 4: 1, +4 DBu)
  • Max. IMD (SMPTE, 60 Hz, 4: 1, +4 DBu)
  • Operating voltage: 48 V phantom power supply
  • Power rating: 0.5 W
  • Batteries: 1 X 9 V block (6LR61)
  • Housing: Chassis material
  • Continuously cast aluminum: Color
  • Black: Environment
  • 20: 70 °C
  • Maximum air humidity (non-condensing): 80 %
  • Width: 140 mm
  • Height: 50 mm
  • Depth: 68 mm
  • Weight: 0.41 kg

PHAVEL
