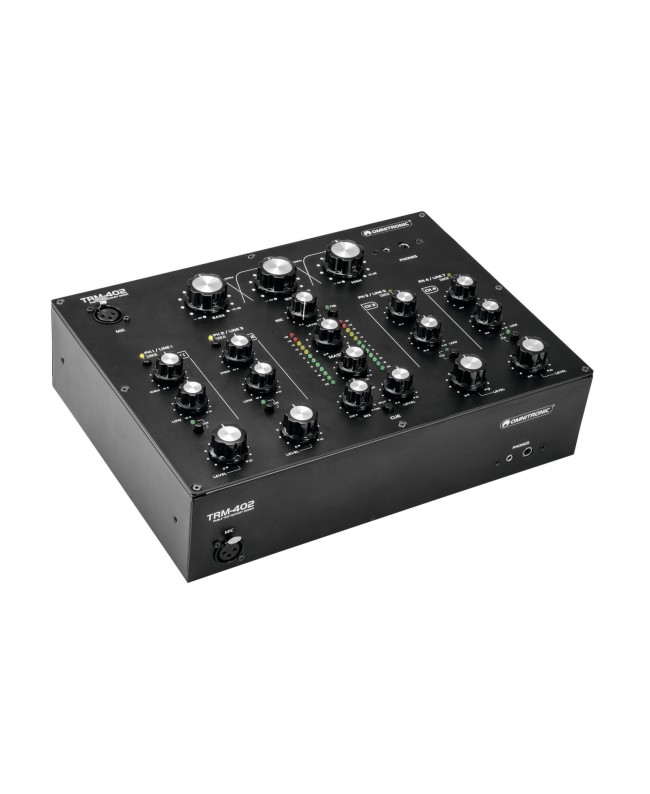

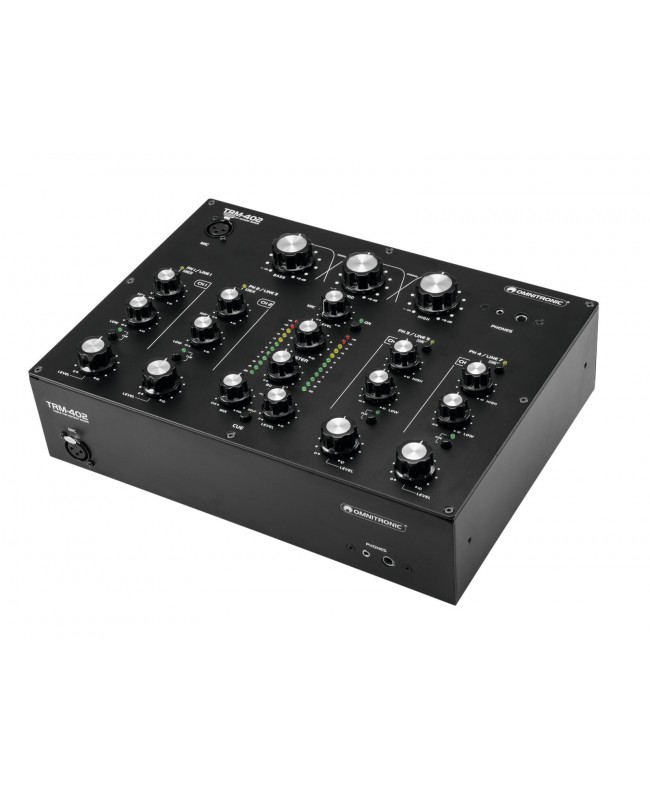

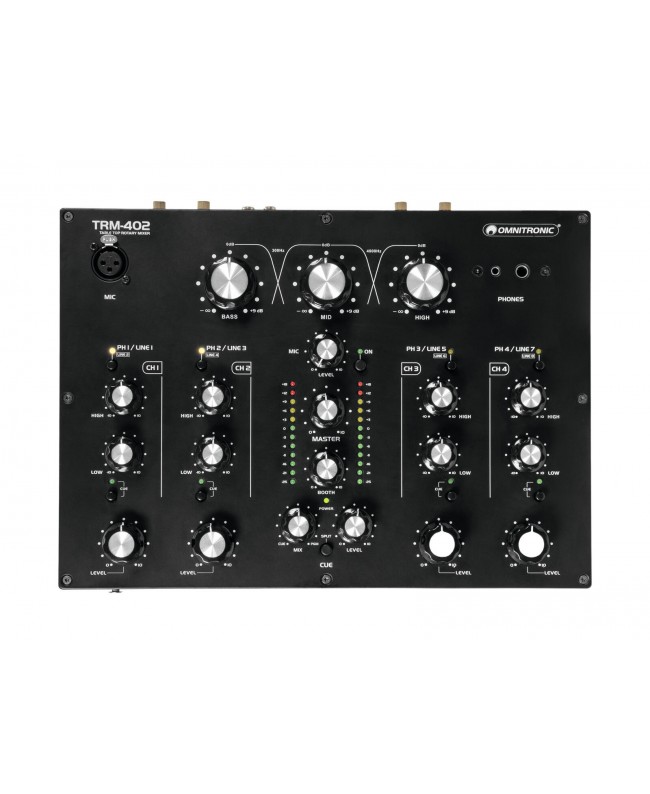

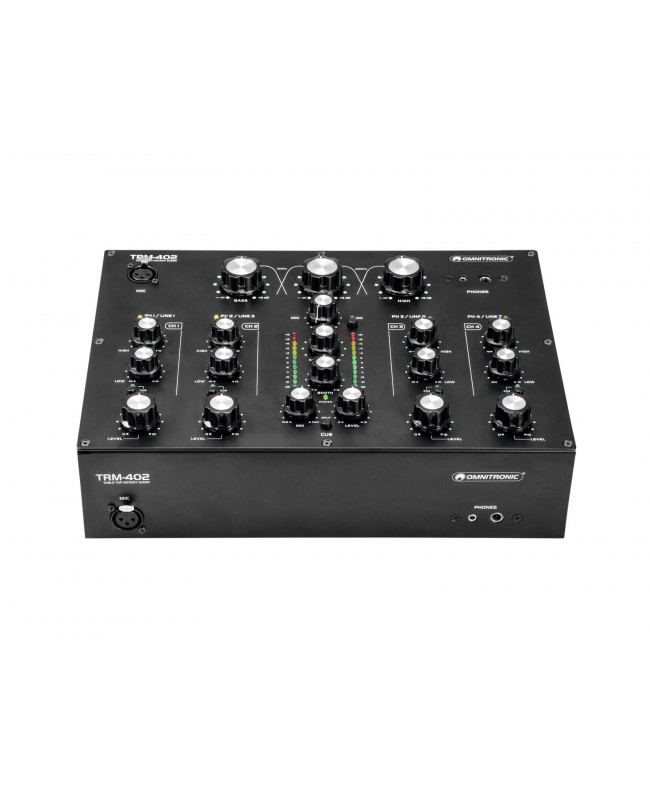

Omnitronic TRM-402 4-channel Rotary Mixer

• Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
• Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
• Dedicated boost and kill cut
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• Classic ALPS potentiometers (Blue Velvet RK27)
• High-grade components ensure long life and excellent sound quality
• DJ microphone input with separate level control
• Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
• 12-digit stereo LED level meter and master level control
• Booth output with separate level control
• Dual inputs for DJ microphone and headphones on the top and front panel
• Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
• Desktop console housing
• For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Scope of delivery

• 1 x device
• 1 x power cord
• 1 x user manual

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 7.2 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz microphone, 20 - 20000 Hz line, 40 - 18000 Hz phono
• S/N ratio: 77 dB phono, 80 dB microphone, 85 dB line
• THD: Line 0.03 % at 1 kHz, Phono 0.1 % at 1 kHz
• Gain: Microphone 44 dB, Line 20 dB, Phono 60 dB to +75 dB
• Isolators: Master Gain:- bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
• Control elements: Power switch, source selector, cue mix split function, tone control
• Status LED: Power, master level meter, chanal source, CUE, microphone

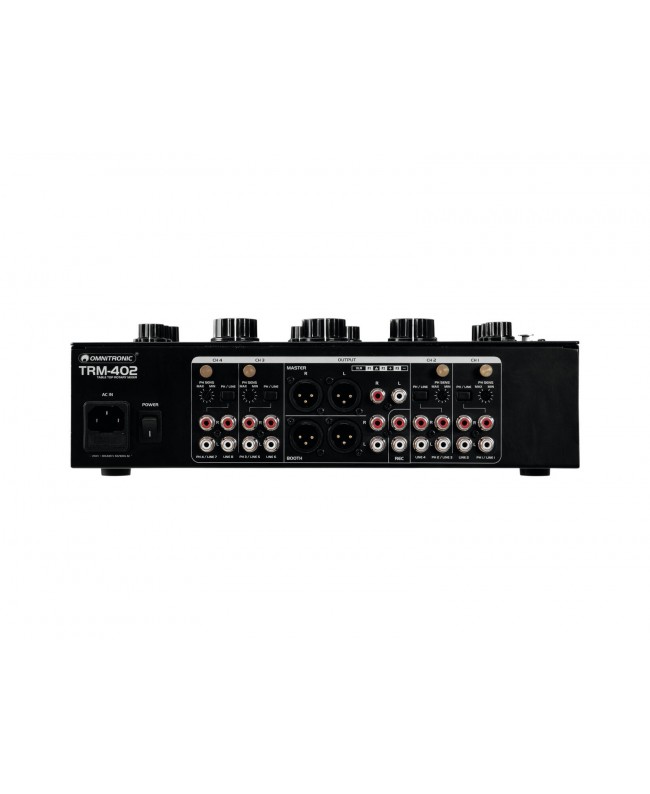

• Connections: Input: line via 4 x stereo RCA, Input: line/phono via 4 x stereo RCA, Input: microphone via 2 x 3-pin XLR, Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 2 x 3.5 mm jack (stereo) mounting version, Output: rec. via 1 x stereo RCA, Output: booth via 2 x 3-pin XLR, Output: booth via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: master via 1 x stereo RCA
• Channels: Input chanel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, gain control, phono gain rotary, CUE switch, source selector, Microphon chanal: 1 x mono via XLR, channel control via rotary dial, ON AIR switch, Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial, Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function
• Max. level: Output: +22 dBu
• Material: Metal
• Color: Black
• Housing design: Desktop console housing
• Dimensions: Width: 33 cm, Depth: 24.7 cm, Height: 10.7 cm
• Weight: 4.05 kg
