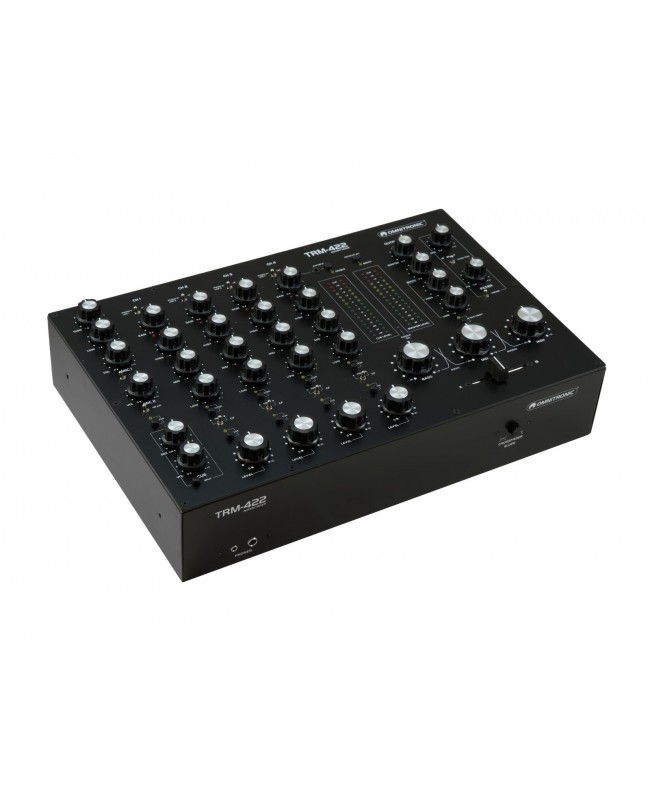

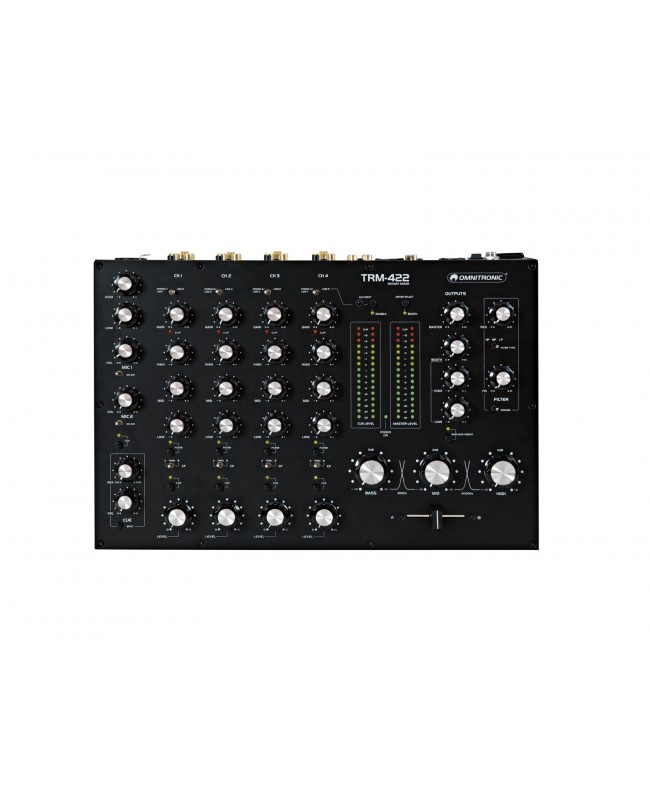

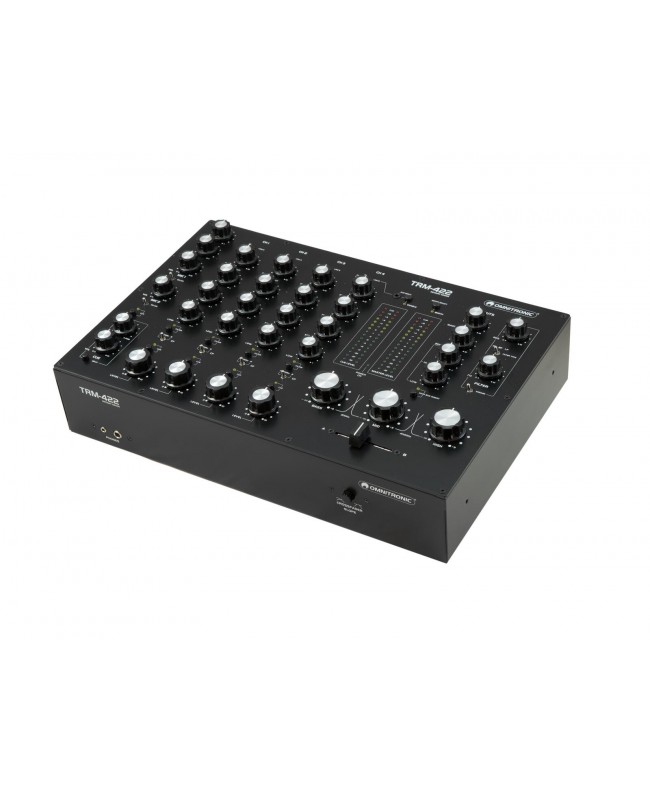

Omnitronic TRM-422 4-channel Rotary Mixer

• 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• Filter section with resonance and sweep control for creative sound shaping
• 4 stereo input channels with gain control, clip LED, 3-way equalizer and phono/line switching
• 2 microphone input channels with gain control, 2-way equalizer on air switch
• High-grade components ensure long life and excellent sound quality
• 16-digit stereo LED level meter, switchable between master and booth outputs
• Booth output with separate 2-way equalizer and level control
• PFL section with 16-digit stereo LED level meter, level control, PFL/master mix control and cue mix/split option
• Fully assignable VCA crossfader with adjustable curve
• 2 effects send/return paths
• Direct outputs for Timecode applications
• Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
• DJ filter LPF, BPF, HPF routable
• Desktop console housing
• (19) 48.3 cm rack installation possible
• For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Scope of delivery

• 1 x mixer
• 1 x power cord
• 2 x mounting bracket
• 6 x screw
• 8 x RCA cable
• 1 x user manual

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 24 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Frequency range: 20 - 20000 Hz microphone, 20 - 20000 Hz line, 40 - 18000 Hz phono
• S/N ratio: 97.2 dB line, 91.7 dB microphone
• THD: Line 0.04 % at 1 kHz, Phono 0.13 % at 1 kHz, Microphone 0.008 % at 1 kHz
• Gain: Microphone 44 dB, Line -16.5 dB to +8.5 dB, Phono -48.5 dB to +23.5 dB
• DJ filter: Routable: LPF, BPF, HPF
• Isolators: Master Gain:- bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
• Housing color: Black
• Crosstalk: -68 dB
• Control elements: Power switch, source selector, crossfader, crossfader selector switch, crossfade curve switch; cue mix split function, tone control
• Status LED: Power, master level meter, clip, CUE

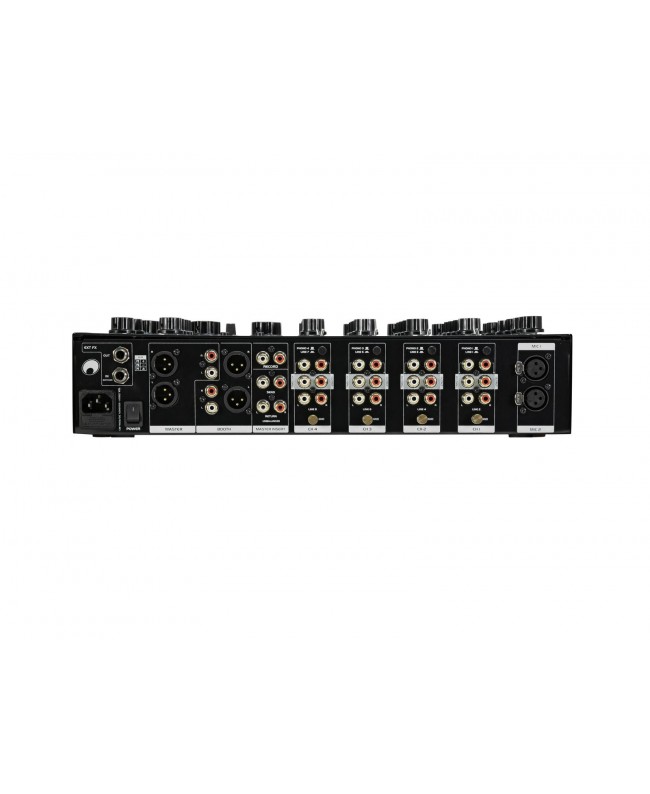

• Connections: Input: line via 4 x stereo RCA, Input: line/phono via 4 x stereo RCA, Input: microphone via 2 x 3-pin XLR, Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 1 x 3.5 mm jack (stereo) mounting version, Output: rec. via 1 x stereo RCA, Output: booth via 2 x 3-pin XLR, Output: booth via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: master via 1 x stereo RCA, Output: AUX sends via 1 x 6.3 mm jack socket (stereo) mounting version, Output: AUX returns via 1 x 6.3 mm jack socket (stereo) mounting version, Output: Timecode via 4 x stereo RCA
• Channels: Input chanel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, crossfader selector switch, Microphon chanal: 2 x mono via XLR, channel control via rotary dial, ON AIR switch, Master output: 2 x stereo via XLR, channel control via rotary, cue mix split function, Booth output: 2 x stereo via XLR, channel control via rotary, Rec. output: 1 x stereo via RCA, Headphones output: 1 x stereo via jack, channel control via rotary dial
• Max. level: Output: +18 dBu
• Material: Metal
• Housing design: Desktop console housing, (19) 48.3 cm rack installation possible
• Dimensions: Width: 41 cm, Depth: 28.5 cm, Height: 10.5 cm
• Weight: 5.74 kg
