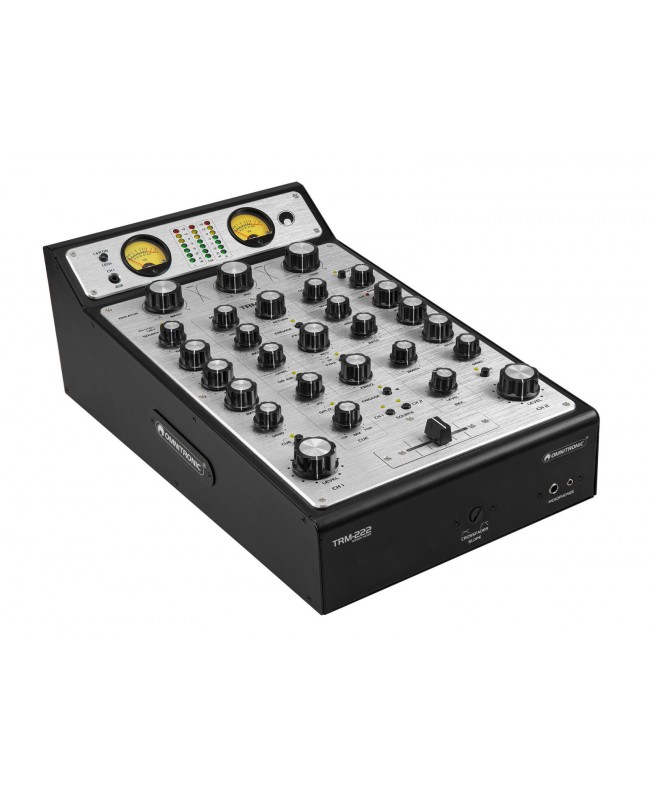

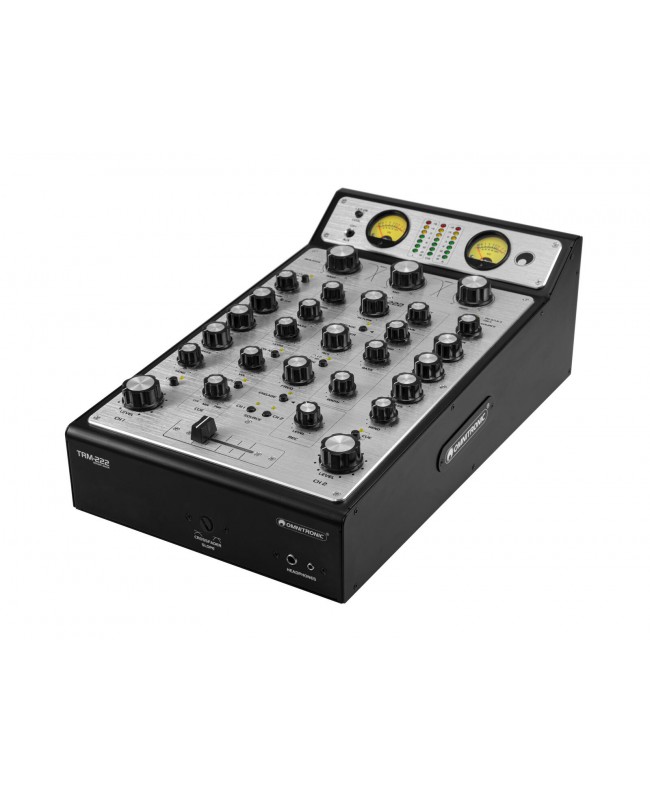

Omnitronic TRM-222 2-channel Rotary Mixer

• Filter section with resonance and sweep control for creative sound shaping
• 3-band master frequency isolator with vintage ALPS potentiometers (Blue Velvet RK27)
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• 2 stereo input channels with gain control, clip LED, 3-way equalizer, FX Send and phono/line switching
• 2 microphone input channels with gain control, 2-way equalizer on air switch
• 2 effects send/return paths
• Dual analog VU meter
• Direct outputs for Timecode applications
• High-grade components ensure long life and excellent sound quality
• Booth output with separate 2-way equalizer and level control
• Record output, independent of the master
• Fully assignable VCA crossfader with adjustable curve
• Outputs: master and booth (XLR/RCA L/R), record (RCA L/R), master insert send/return (RCA L/R), FX in/out (stereo jack)
• DJ filter LPF, HPF routable
• Desktop console housing
• For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios

Scope of delivery

• 1 x mixer
• 1 x power cord
• 1 x cover
• 1 x user manual

• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 15 W
• Protection class: Protection class I
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
• Cable length: 1.5 m detachable
• Frequency range: 20 - 20000 Hz
• S/N ratio: 100 dB
• THD: 0.05 % at 1 kHz
• Gain: Line -12 dB to +12 dB, Phono -40 dB to +5 dB, FX 20 dB, Microphone 55 dB
• DJ filter: Routable: LPF, HPF,
• Isolators: Master Gain:- bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
• Housing color: Black; silver
• Control elements: Power switch, source selector, crossfader, crossfader selector switch, crossfade curve switch; cue mix split function, tone control
• Status LED: Power, master level meter, clip, CUE

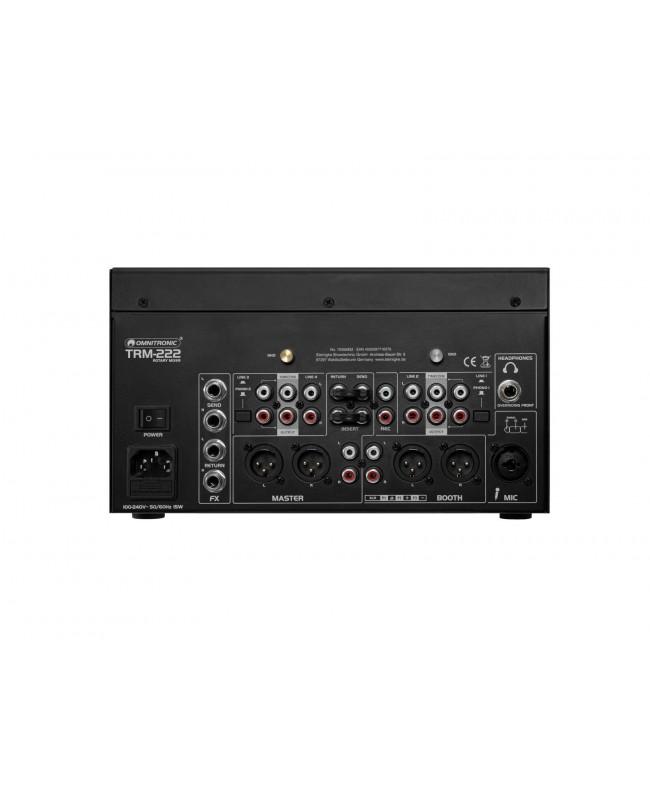

• Connections: Input: line via 2 x stereo RCA, Input: line/phono via 2 x stereo RCA, Input: microphone via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: AUX returns via 2 x 6.3-mm-jack (bal.), Output: Timecode via 2 x stereo RCA, Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 1 x 3.5 mm jack (stereo) mounting version, Output: rec. via 1 x stereo RCA, Output: booth via 2 x 3-pin XLR, Output: booth via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: master via 1 x stereo RCA, Output: AUX sends via 2 x 6.3-mm-jack (bal.)
• Channels: Input chanel: 2 x stereo with line-line/phono switch via RCA, channel control via rotary, 3-band tone control EQ, source selector, gain control, CUE switch, FX routing switch, Microphon chanal: 1 x mono via Combination socket (XLR/jack), channel control via rotary, 2-band tone control EQ, ON AIR switch, Master output: 1 x stereo via XLR or RCA, channel control via rotary, Booth output: 1 x stereo via XLR or RCA, channel control via rotary, 2-band tone control EQ, Rec. output: 1 x stereo via RCA, channel control via rotary, Headphones output: stereo via jack, channel control via rotary
• Max. level: Output: +21 dBu
• Material: Metal; aluminum
• Housing design: Desktop console housing
• Dimensions: Width: 45 cm, Depth: 26 cm, Height: 16 cm
• Weight: 5.80 kg
