Omnitronic Set TRM-402 + Case Home
  • New

Omnitronic Set TRM-402 + Case

€483.00
Tax included

4-Channel rotary mixer with 3-band frequency isolator for DJs

Qty

Available upon request

Free shipping

Compare

wishlist

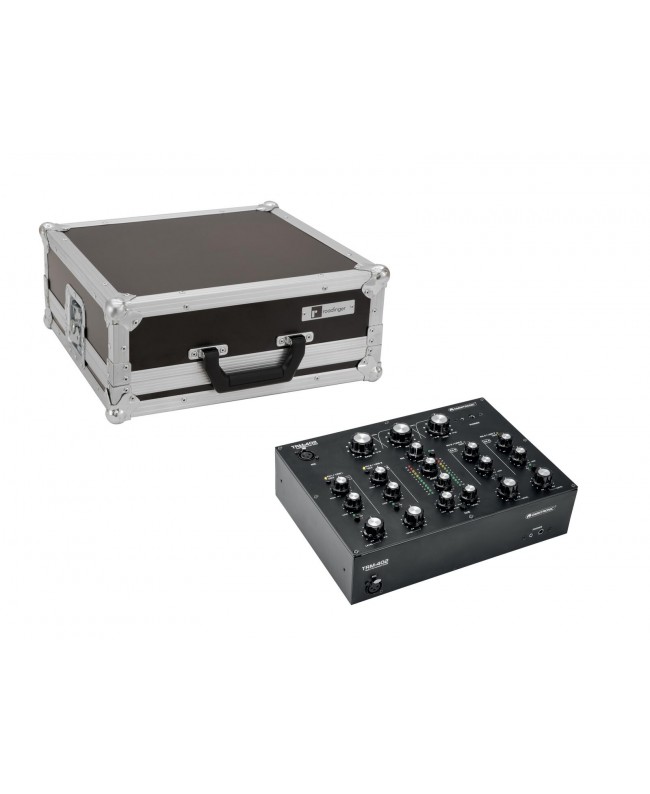

Omnitronic Set TRM-402 + Case

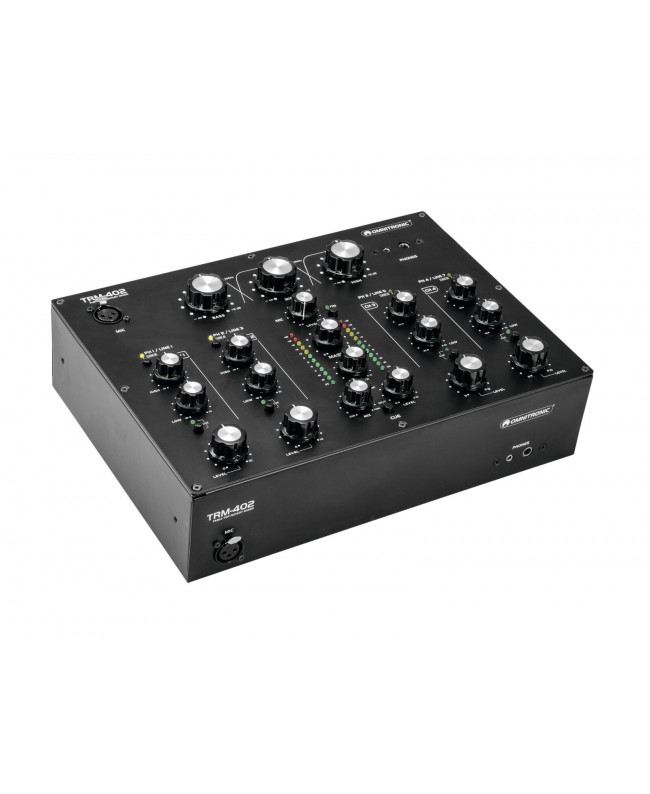

OMNITRONIC TRM-402 4-channel Rotary Mixer

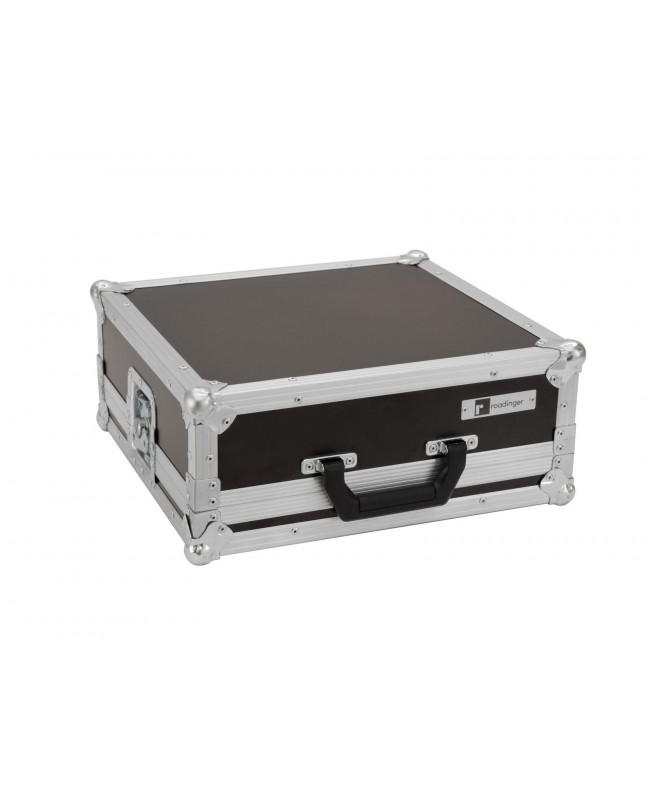

ROADINGER Flightcase TRM-402

Carrying case, PRO version



Scope of delivery

1 x OMNITRONIC TRM-402 4-channel Rotary Mixer

  • Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
  • Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
  • Dedicated boost and kill cut
  • Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
  • Classic ALPS potentiometers (Blue Velvet RK27)
  • High-grade components ensure long life and excellent sound quality
  • DJ microphone input with separate level control
  • Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
  • 12-digit stereo LED level meter and master level control
  • Booth output with separate level control
  • Dual inputs for DJ microphone and headphones on the top and front panel
  • Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
  • Desktop console housing
  • For application areas such as: Clubs/dancing school; mobile use; mobile djs / entertainer; homerecording and studios
  • High-quality workmanship with birch multiplex 6.5 mm, dark brown, laminated
  • Interior with foam padding
    cover with foam padding
  • Removable cover
  • Aluminum profile frames 22mm with rounded edges
  • Rugged carrying handle
  • 2 high-quality spring locks
  • Rubber feet
  • Branded hardware
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under Downloads
  • 1 x device
  • 1 x power cord
  • 1 x user manual
  • Weight: 7.90 kg
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 7.2 W
  • Protection class: Protection class I
  • Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
  • Frequency range: 20 - 20000 Hz microphone, 20 - 20000 Hz line, 40 - 18000 Hz phono
  • S/N ratio: 77 dB phono, 80 dB microphone, 85 dB line
  • THD: Line 0.03 % at 1 kHz, Phono 0.1 % at 1 kHz
  • Gain: Microphone 44 dB, Line 20 dB, Phono 60 dB to +75 dB
  • Isolators: Master Gain:- bis +9, Low/mid 300 Hz, 18db/oct , Butterworth, Mid/high 4000 Hz, 18db/oct , Butterworth
  • Control elements: Power switch, source selector, cue mix split function, tone control
  • Status LED: Power, master level meter, chanal source, CUE, microphone
  • Connections: Input: line via 4 x stereo RCA, Input: line/phono via 4 x stereo RCA, Input: microphone via 2 x 3-pin XLR, Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version, Output: headphones via 2 x 3.5 mm jack (stereo) mounting version, Output: rec. via 1 x stereo RCA, Output: booth via 2 x 3-pin XLR, Output: booth via 1 x stereo RCA, Output: master via 2 x 3-pin XLR, Output: master via 1 x stereo RCA
  • Channels: Input chanel: 4 x stereo with line-line/phono switch via RCA, channel control via rotary, 2-band tone control EQ, gain control, phono gain rotary, CUE switch, source selector, Microphon chanal: 1 x mono via XLR, channel control via rotary dial, ON AIR switch, Booth output: 1 x stereo via XLR or RCA, channel control via rotary dial, Master output: 1 x stereo via XLR or RCA, channel control via rotary dial, Headphones output: 1 x stereo via jack, channel control via rotary dial, cue mix split function
  • Max. level: Output: +22 dBu
  • Material: Metal
  • Color: Black
  • Housing design: Desktop console housing
  • Dimensions: Width: 33 cm, Depth: 24.7 cm, Height: 10.7 cm
  • Weight: 4.05 kg
  • Maximum load: 25 kg
  • Removable covers: 1 pc/pcs
  • Aluminum profile frames: 22 mm
  • Carrying handle: 1 pc/pcs
  • Lock: Spring lock: 2 pc/pcs
  • Transport aid: Rubber feet
  • Use of brands: Branded hardware
  • Material: Birch multiplex, 6.5 mm
  • Color: Dark brown, laminated
  • Device compartment: 33 cm x 23.5 cm x 4 cm
  • Accessory compartment: 37 cm x 6.5 cm x 4.5 cm
  • Inside dimensions: 37 cm x 30 cm x 4.5 cm
  • Dimensions: Width: 40 cm, Depth: 37 cm, Height: 17.5 cm
  • Weight: 3.85 kg

20000896
