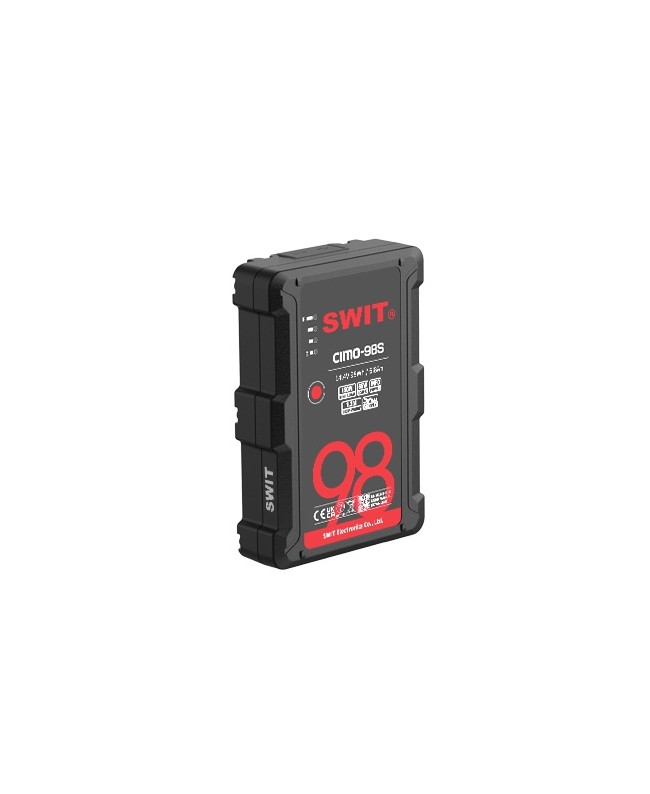

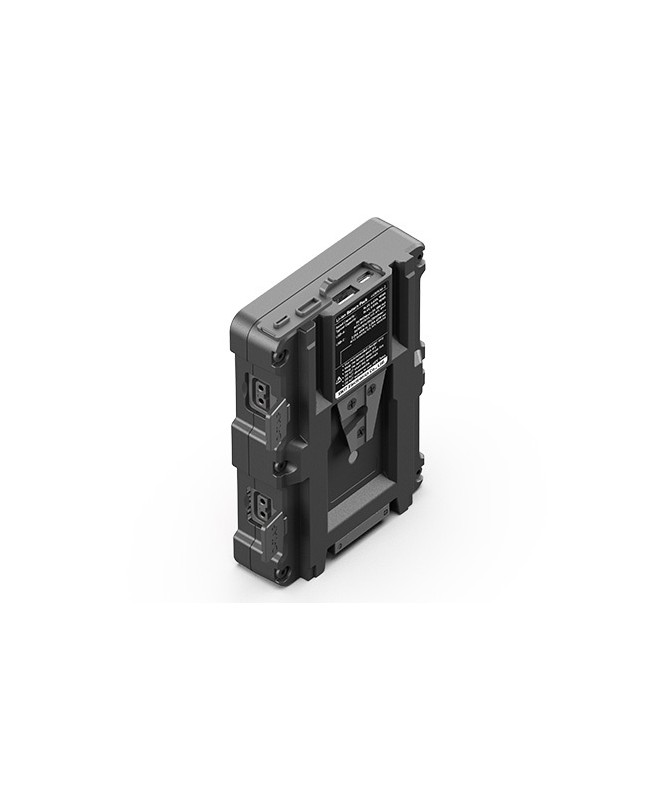

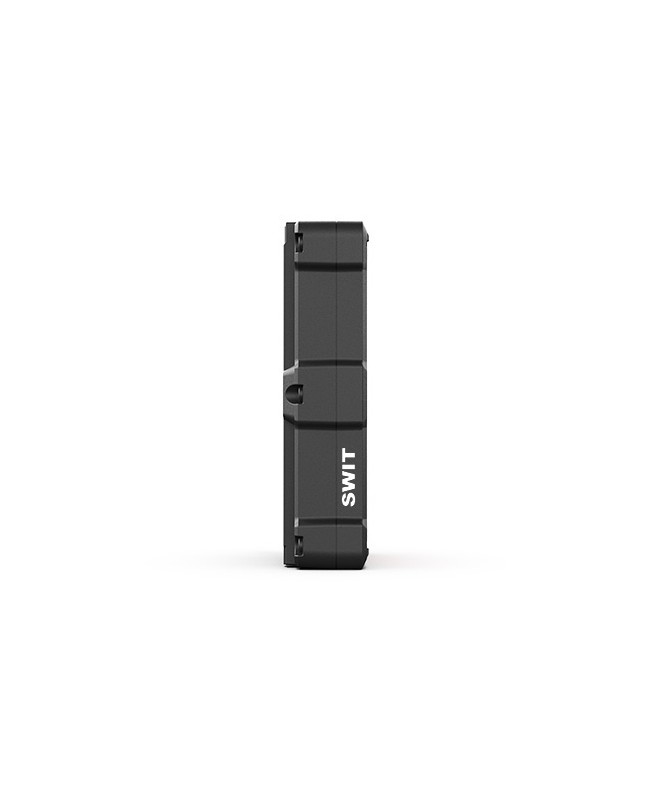

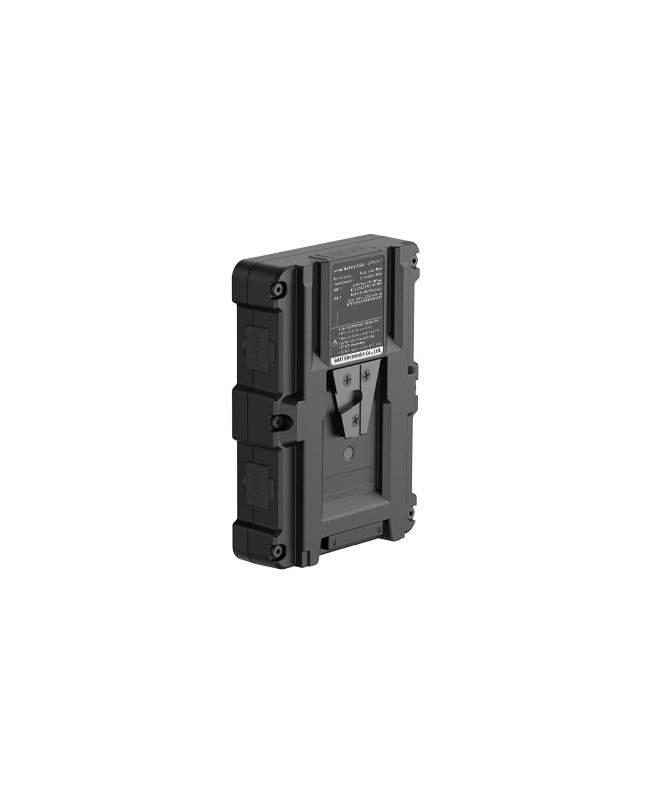

SWIT CIMO-98S

• Slim Size V-mount battery
• Fly-friendly capacity 98Wh/6.8Ah
• Constant high load 150W/12A, peak 200W
• 2×D-tap output and charging input
• 1x regulated DC output Barrel 8.4V
• 1x USB-A output 5V/9V 2A 18W
• 1x USB-C 65W output and 45W input
• 4-LED remaining charge indicator
• Rear LED flashlight for dark environments
• Robust 1.2 m drop-proof housing
• Multiple BMS circuit protections

CINE V-mount battery

The CIMO series cine-grade V-mount batteries feature high-output, 2× D-tap, 65W USB-C, OLED display with power information, battery life inspection and 1.2 m drop-proof for professional cinematographers.

14.4 V, 98 Wh Slim Size

CIMO-98S is composed of 8 ternary lithium cells, nominal voltage 14.4 V, 98 Wh, fly-friendly capacity 6.8 Ah.

Ternary lithium cells provide greater energy density, achieve greater capacity with smaller dimensions and excellent low-temperature performance, capable of providing energy in cold environments at -20 °C.

150 W constant / 200 W peak (high load output)

CIMO-98S delivers at least 150 W/12 A high load even at 1% capacity (peak load up to 200 W), to drive high power Cine cameras and on-camera devices together.

The high-load cells will also ensure battery life compared to normal load batteries in the event of a prolonged full-load output.

USB-C 65W output

The USB-C port of the CIMO-98S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with universally compatible protocols BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0.

USB-C 45W charging input

The battery can also be charged via USB-C chargers from PD2.0/3.0 = 45W power, fully charged in 2.5 hours.

Please note that low power USB-C chargers <45W are not able to charge this battery.

LED flashlight

You can double press the Power Check button to turn on the LED flashlight on the back of the battery, to help you find the V-mount plate in a dark production environment. Double press the Power Check button again to turn off the light, which will turn off automatically after 60 seconds.

1.2-meter drop proof

CIMO series batteries are designed with a double housing and can withstand drops from 1.2 meters at any angle, making them durable and reliable for filmmakers.
