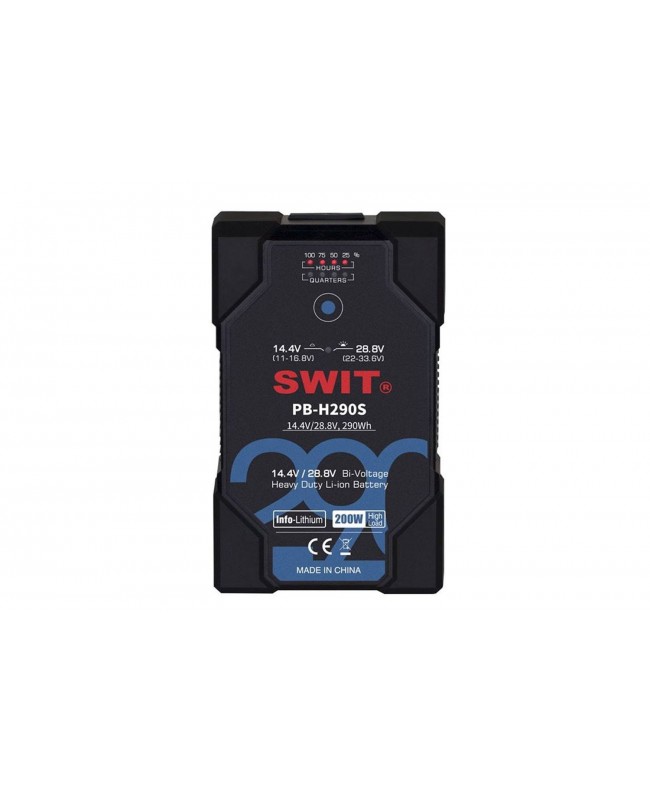

SWIT PB-H290S

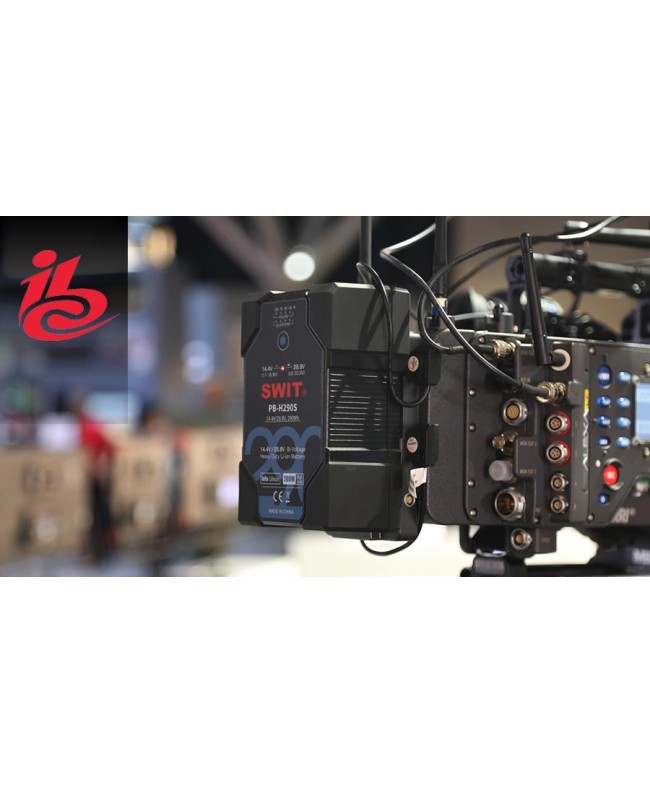

Power ENG and cinema cameras with V-mount brackets using this robust IP54 battery-powered PB-R290S+ with 290 Wh and V-mount from SWIT. The PB-R290S+ has IP54 protection for outdoor use and a capacity of 290 Wh at 14.4 V. A high continuous load of 250 W/20 A allows your ENG camera to operate for eleven hours.

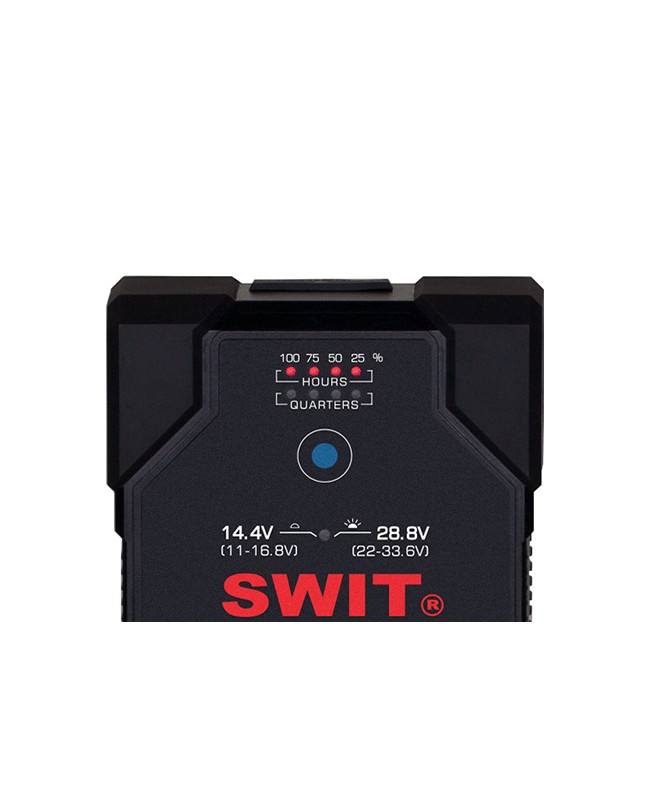

You can even power additional accessories simultaneously via the integrated D-Tap DC output with 10 A current. An 8-step LED display informs you of the battery's charge status, and integrated SMBUS technology can display the remaining time in minutes on the viewfinder of your Sony or RED camera. When the battery is empty, it can be recharged with a compatible 6 A fast charger and is ready for use in 3.8 hours.

Features at a glance

• Intelligent SMBUS technology, compatible with SONY and RED camera information systems to display remaining operating time in the viewfinder
• Powers ENG cameras for 11 hours
• Powers the ARRI ALEXA film camera for 3.5 hours
• Supports 6 A fast charging via the SWIT PC-P461A or S-3812A charger
• Charges from 0 to 80% in 2.5 hours, fully charged in 3.8 hours
• The battery can withstand a fall from a height of 4.9 m thanks to its double housing and rubber cover
