Weighing less than 249g, the Mini 4 Pro is designed for complete mobility. No training or exams are required in most countries and regions.
Fly longer, get more done
The intelligent flight battery offers up to 34 minutes of autonomy, enough to meet your recording needs.
Oversized images
The 1/1.3-inch CMOS sensor supports 4K/60 fps vertical HDR recording. 10-bit D-Log M/HLG color mode to capture up to a billion colors.
Stable and reliable video transmission
The drone is equipped with DJI's O4 video transmission. Enjoy an ultra-smooth live feed at 1080p/60fps up to 20 km.
Fly in complete safety
The first drone in the mini-series to be able to quickly and accurately detect and avoid obstacles thanks to omnidirectional detection. Perfect even for inexperienced pilots.
A touch of cinema
Try ActiveTrack 360° and customize multiple tracking routes for any shooting scenario. Guaranteed results
Technical Data Sheet
Aircraft
Takeoff weight < 249 g
Standard aircraft weight (including Intelligent Flight Battery, propellers and a microSD card). Actual product weight may vary due to slight differences in materials and external factors. Examination and training not required in some countries or regions. Always check local laws and regulations before use. With the Intelligent Flight Battery Plus*, the drone will weigh more than 249 g. Check and follow local laws and regulations before flying.
Dimensions
Closed (propellers not included): 148×94×64 mm (L×W×H)
Open (propellers included): 298×373×101 mm (L×W×H)
Maximum ascent speed
5 m/s (Mode S)
5 m/s (Mode N)
3 m/s (Mode C)
Maximum descent speed
5 m/s (Mode S)
5 m/s (Mode N)
3 m/s (Mode C)
Maximum horizontal speed (at sea level, in still air)
16 m/s (Mode S)
12 m/s (Mode N)
12 m/s (Mode C)
Maximum horizontal speed is subject to local restrictions, which may change. Always follow local laws and regulations when flying.
Maximum takeoff altitude
With Intelligent Flight Battery for DJI Mini 4 Pro: 4000 m
With Intelligent Flight Battery Plus for DJI Mini 3 series*: 3000 m
Increased aircraft weight may affect flight propulsion. When the aircraft is using the Intelligent Flight Battery Plus, do not install additional loads such as parachutes or third-party accessories, as this will decrease propulsion.
* The Intelligent Flight Battery Plus is not available in Europe.
Data acquired in a controlled test environment. The specific test conditions were as follows: forward flight at a constant speed of 21.6 km/h in a windless laboratory environment 20 meters above sea level, in photo mode (no photo capture during flight), with Obstacle Avoidance Action set to Off and from 100% battery level to 0%. Results may vary depending on environment, usage method and firmware version.
* Intelligent Flight Battery Plus is not available in Europe.
Data was obtained in a controlled test environment. Specific test conditions include: hovering in a windless lab environment at 65 feet above sea level in Photo mode (no photo capture while flying), with Obstacle Sensing set to Off, and from 100% to 0% battery power. Results may vary depending on the environment, method of use, and firmware version.
* Intelligent Flight Battery Plus is not available in Europe.
Maximum flight distance
18 km (with the Intelligent Flight Battery and measured at a flight speed of 40.7 km/h in a windless environment at 20 meters above sea level)
25 km (with Intelligent Flight Battery Plus* and measured at a flight speed of 44.3 km/h in a windless environment at 20 meters above sea level)
* Intelligent Flight Battery Plus is not available in Europe.
Maximum wind speed resistance 10.7 m/s
Pitch angle (max.) 35°
Operating temperature Between -10° and 40°C (14° - 104°F)
Global Navigation Satellite System GPS + Galileo + BeiDou
Hovering accuracy (in the absence of wind or haze)
Vertical:
±0.1 m (with visual positioning)
±0.5 m (with GNSS positioning)
Horizontal:
±0.1 m (with visual positioning)
±0.5 m (with GNSS positioning)
Internal memory 2 GB
Class C0 (EU), with the option to request C1 (EU) in the DJI Fly app.
Camera
1/1.3” CMOS image sensor, effective pixels: 48 MP
Lens FOV: 82.1°
Equivalent format: 24 mm Aperture: f/1.7
Focus: from 1 m to ∞ ISO range
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
12 MP: 100-6400
48 MP: 100-3200
Shutter speed
12 MP photo: 1/16000-2 s (2.5-8 s for long exposure)
48 MP photos: 1/8000-2 s
Maximum image size 8064×6048
Photo modes
Single shot: 12 MP and 48 MP
Burst shot:
12 MP, 3/5/7 frames
48 MP, 3/5 frames
Auto Exposure Bracketing (AEB):
12 MP, 3/5/7 frames at 0.7 EV step
48 MP, 3/5 frames at 0.7 EV step
Time:
12 MP, 2/3/5/7/10/15/20/30/60 s
48 MP, 5/7/10/15/20/30/60 s
Photo format JPEG/DNG (RAW)
Video resolution H.264/H.265
4K: 3840×2160 at 24/25/30/48/50/60/120*fps
FHD: 1920×1080 at 24/25/30/48/50/60/120*/200*fps
* Frame rate during recording. The corresponding video is played back in slow motion. 4K/100fps and HLG/D-Log M only support H.265 encoding.
Video format MP4 (MPEG-4 AVC/H.264, HEVC/H.265)
Max. video bit rate H.264/H.265: 150 Mbps
Supported file systems exFAT
Color mode and sampling method
Normal: 4:2:0 8-bit (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)
Digital zoom 12 MP photos: 1-3x
4K: 1-3x FHD: 1-4x
Stabilizer
Stabilization
3-axis mechanical (tilt, roll and horizontal rotation)
Mechanical range
Tilt: -135° to 80°
Roll: from -135° to 45°
Panorama: from -30° to 30°
Controllable radius
Tilt: from -90° to 60°
Roll: from -90° to 0°
Maximum control speed (tilt) 100°/s
Angular vibration interval ±0.01°
Sensors
Detection type
Omnidirectional binocular vision system, integrated with a 3D infrared sensor in the lower part of the aircraft.
Front
Precision measurement range: 0.5-18 m
Detection range: 0.5-200 m
Effective detection speed: flight speed ≤ 12 m/s
FOV: horizontal 90°, vertical 72°
Rear
Precision measurement range: 0.5-15 m
Effective detection speed: flight speed ≤ 12 m/s
FOV: horizontal 90°, vertical 72°
Side
Precision measurement range: 0.5-12 m
Effective detection speed: flight speed ≤ 12 m/s
FOV: horizontal 90°, vertical 72°
Upper
Precision measurement range: 0.5-15 m
Effective detection speed: flight speed: ≤ 5 m/s
FOV: front and rear 72°, side 90°
Lower
Accuracy measurement range: 0.3-12 m
Effective detection speed: flight speed: ≤ 5 m/s
FOV: front and rear 106°, side 90°
Operating environment
Front, rear, side and upward:
Surfaces with recognizable patterns, with adequate lighting (>15 lux)
Lower:
Surfaces with distinguishable patterns, diffuse reflectivity >20% (e.g. walls, trees, people) and adequate lighting (lux > 15)
3D infrared sensor
Measurement range: 0.1-8 m (reflectivity > 10%)
FOV: Front and rear 60°, side 60°
Video transmission
Video transmission system O4
Image transmission quality (Live View)
Radio control:
Up to 1080p/60fps (available when the aircraft is in Photo or Video mode)
Up to 1080p/30fps (available when the aircraft is in Video mode)
Up to 1080p/24fps (available when the aircraft is on the ground in standby mode)
Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
The 5.170-5.250 GHz frequency may only be used in countries and geographic areas where permitted by local laws and regulations.
Transmitter power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)
Maximum transmission distance (without obstacles or interference)
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km
Data acquired in an outdoor environment free of obstacles and interference. The data shown displays the farthest communication distance for one-way and round-trip flights based on each standard. Always pay attention to RTH notifications in the DJI Fly app during flight.
Maximum transmission distance (without obstacles or interference)
High interference: urban areas, approx. 1.5-4 km
Medium interference: suburban areas, approx. 4-10 km
Low interference: outskirts/seaside, approx. 10-20 km
Data is measured in accordance with FCC standards, in open space free of interference. Used for reference purposes only and does not guarantee actual transmission distance.
Maximum transmission distance (in the presence of obstacles, with interference)
Low interference and obstruction from buildings: approx. 0-0.5 km
Low interference and obstruction from trees: approx. 0.5-3 km
Data is measured in accordance with FCC standards, in low-interference obstructed environments. Used for reference purposes only and does not provide any guarantee for the actual transmission distance.
Maximum download speed
O4:
10 MB/s (with DJI RC-N2)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s*
* Data acquired in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, with footage saved to internal memory. Download speed may vary depending on actual conditions.
Lowest latency
Aircraft + Remote Control: approx. 120 ms
Depending on the scenario and mobile device.
Antennas
4 antennas, 2T4R
Battery
Compatible battery
Intelligent Flight Battery for DJI Mini 4 Pro, Intelligent Flight Battery Plus for DJI Mini 3 series*
The Intelligent Flight Battery Plus is not available in Europe.
Capacity
Intelligent Flight Battery: 2590 mAh
Intelligent Flight Battery Plus*: 3850 mAh
* The Intelligent Flight Battery Plus is not available in Europe.
Weight
Intelligent Flight Battery: approx. 77.9 g
Intelligent Flight Battery Plus*: approx. 121 g
* Intelligent Flight Battery Plus is not available in Europe.
Nominal voltage
Intelligent Flight Battery: 7.32 V
Intelligent Flight Battery Plus*: 7.38 V
* Intelligent Flight Battery Plus is not available in Europe.
Charging voltage (max.)
Intelligent Flight Battery: 8.6 V
Intelligent Flight Battery Plus*: 8.5 V
* The Intelligent Flight Battery Plus is not available in Europe.
Type
Li-ion
Energy
Intelligent Flight Battery: 18.96 Wh
Intelligent Flight Battery Plus*: 28.4 Wh
* The Intelligent Flight Battery Plus is not available in Europe.
Charging temperature
5° – 40°C
Charging time
Intelligent Flight Battery:
70 minutes (with the 30 W USB-C DJI charger and the battery installed on the aircraft)
58 minutes (with the 30 W USB-C DJI charger and the battery inserted in the Two-Way Charging Station)
Intelligent Flight Battery Plus*:
101 minutes (with the DJI 30W USB-C charger and the battery installed on the aircraft)
78 minutes (with the DJI 30W USB-C charger and the battery inserted in the Two-Way Charging Station)
The Intelligent Flight Battery Plus is not available in Europe.
Charger
Recommended charger
DJI 30 W USB-C Charger or other USB Power Delivery (30 W) chargers*
When charging the battery while mounted on the drone or inserted in the Two-way Charging Dock, the maximum supported charging power is 30 W.
Charging dock
Input
5 V, 3 A
9 V, 3 A
12 V, 3 A
Output
USB-A: maximum voltage: 5 V; maximum current: 2 A
Charging type
3 batteries charged in sequence
Compatibility
DJI Mini 4 Pro Intelligent Flight Battery, Intelligent Flight Battery/Intelligent Flight Battery Plus for DJI Mini 3 series

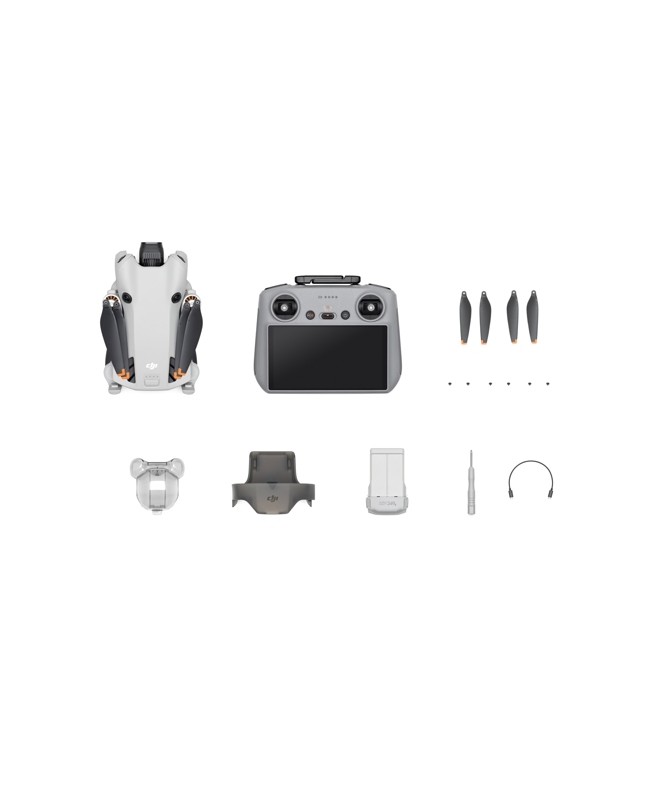

Package contents
DJI Mini 4 Pro × 1
DJI RC-N2 remote controller × 1
Intelligent Flight Battery × 1
Spare propellers (pair) × 1
Screws × 6
Screwdriver × 1
Cable for DJI RC-N2 remote controller (USB-C connector) × 1
Cable for DJI RC-N2 remote control (Lightning connector) × 1
