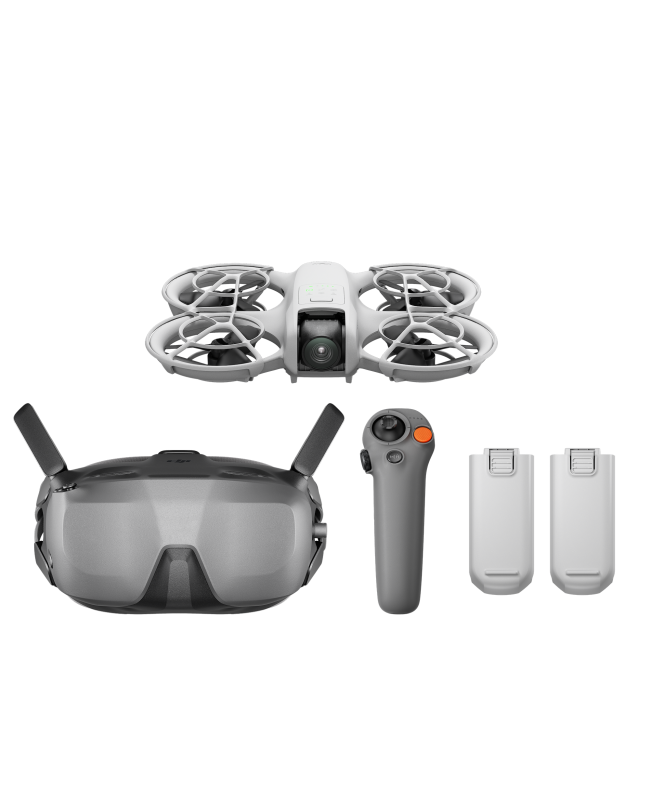

DJI NEO Motion Combo

Drone

Maximum climb rate:

• 0.5 m/s (Cine mode)
• 2 m/s (Normal mode)
• 3 m/s (Sport mode)

Maximum descent rate:

• 0.5 m/s (Cine mode)
• 2 m/s (Normal mode)
• 2 m/s (Sport mode)

Maximum horizontal speed (near sea level, no wind):

• 6 m/s (Normal mode)
• 8 m/s (Sport mode)
• 16 m/s (Manual mode)
• Maximum takeoff altitude: 2000 m

Data acquired in a windless environment during takeoff from an altitude of 2000 m and a vertical climb of 120 m, using Sport mode and battery level from 100% to 20%.
The data is for reference only.
Always pay attention to the notifications in the camera view during flight.

• Maximum flight time: Approximately 18 min (17 min with propeller guards)
• Hovering time: Approximately 18 min (17 min with propeller guards)
• Maximum flight distance: 7 km
• Data acquired while flying forward at a speed of 8 m/s in a windless environment at 20 m above sea level, with the camera settings set to 1080p/30fps, video mode off, and battery level from 100% to 0%.
• Results may vary depending on the environment, usage method, and firmware version.
• Maximum wind speed resistance; 8 m/s (Level 4)
• Operating temperature: -10° to 40°C
• Global Navigation Satellite System: GPS + Galileo + BeiDou
• Internal memory: 22 GB
• Class: C0 (EU)

Camera

• Image sensor: 1/2" image sensor
• Lens:
• FOV: 117.6°
• Equivalent format: 14 mm
• Aperture: f/2.8
• Focus: 0.6 m to infinity

ISO range:

• 100 - 6400 (auto)
• 100 - 6400 (manual)

Shutter speed:

• Video: 1/8000 - 1/30s
• Photo: 1/8000 - 1/10s

Maximum size of image:

• 12MP Photo
• 4000 x 3000 (4:3)
• 4000 x 2256 (16:9)
• Photo modes: Single, Timed Shot
• Photo format: JPEG

Video resolution:

• Without EIS: 4K (4:3): 3840x2880 @ 30fps | 1080p (4:3) 1440x1080 @ 60/50/30fps
• With EIS: 4K (16:9): 3840x2160 @ 30fps | 1080p (16:9): 1920x1080 @ 60/50/30fps
• Video format: MP4
• Maximum video bitrate: 75 Mb/s
• Supported file systems: exFAT
• Color mode: Normal

Stabilizer

• Stabilization: Single-axis mechanical stabilizer (tilt)
• Mechanical range: Tilt: -120° to 120°
• Controllable range: Tilt: -90° to 60°
• Maximum control speed (Tilt): 100°/s
• Angular vibration range: ±0.01°
• Image roll correction: Supports correction of footage recorded on the drone | Live correction is not available only when using the headset

Detection

• Detection type: Downward visual positioning
• Downward: Precise hovering range: 0.5 - 10 m
• Operating environment:
• Downward: Defined non-reflective surfaces with diffuse reflectivity of >20% (e.g. walls, trees or people) | Adequate lighting (lux > 15 in normal indoor lighting conditions)

Video Transmission

• Video Transmission System: O4
• Image Transmission Quality (Live View):
• With DJI RC-N3 Remote Controller: Up to 1080p/30fps
• With DJI Goggles 3 and DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps

Operating Frequency:

• 2.400-2.4835GHz
• 5.170-5.250GHz
• 5.725-5.850GHz

The permitted operating frequency varies by country and region. For more information, refer to local laws and regulations.

Transmitter Power (EIRP):

• ° 2.4 GHz:
• < 26 dBm (FCC)
• < 20 dBm (CE/SRRC/MIC)
• ° 5.1 GHz:
• < 23 dBm (CE)
• ° 5.8 GHz:
• < 26 dBm (FCC)
• < 14 dBm (CE)
• < 26 dBm (SRRC)
• Frequency Band: Max. 40 MHz
• Max. Download Speed: Wi-Fi: 25 Mbps

Data acquired in a laboratory environment with little interference, in countries/regions that support both 2.4 GHz and 5.8 GHz.

Download speed may vary depending on actual conditions.

Lowest latency:

• With DJI RC-N3 remote controller: Approximately 120 ms
• Depending on actual environmental conditions and mobile device.
• Maximum video bitrate: 50 Mbps
• Antennas: Dual antennas, 1T2R

Wi-Fi

• Protocol: 802.11a/b/g/n/ac
• Operating frequency:
• 2.400-2.4835 GHz
• 5.725-5.850 GHz

The permitted operating frequency varies by country and region. Please refer to local laws and regulations for more information.

Transmitter power (EIRP):

• ° 2.4 GHz:
• < 20 dBm (FCC/CE/SRRC/MIC)
• ° 5.8 GHz:
• < 20 dBm (FCC/SRRC)
• < 14 dBm (CE)
