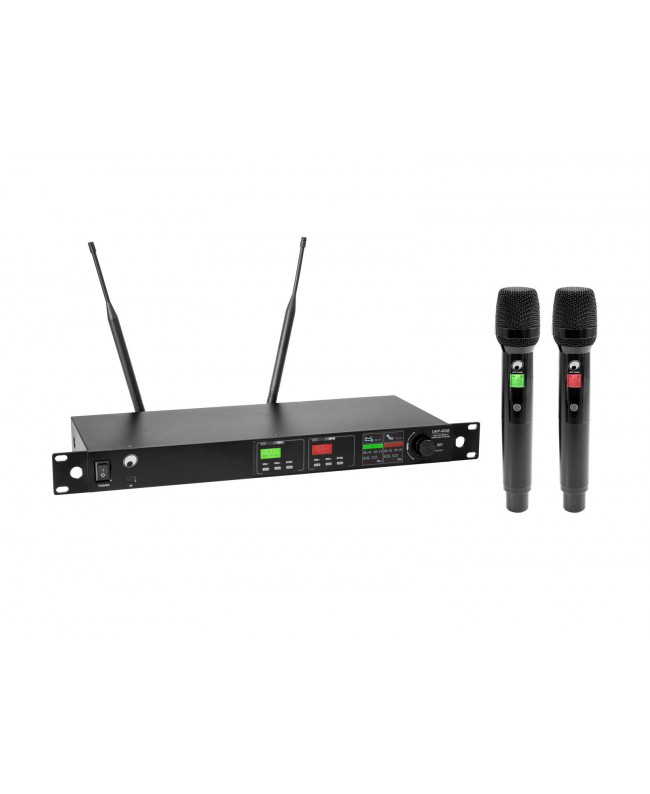

Omnitronic UHF-602 2-channel Wireless Mic System 520-554 MHz

Scope of delivery

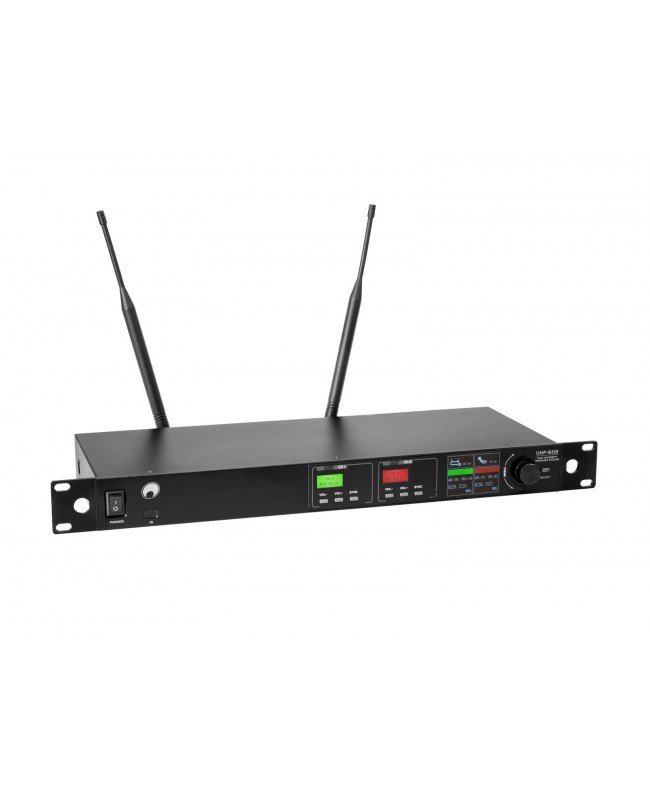

• 1 x receiver
• 2 x antenna
• 1 x external mains adapter

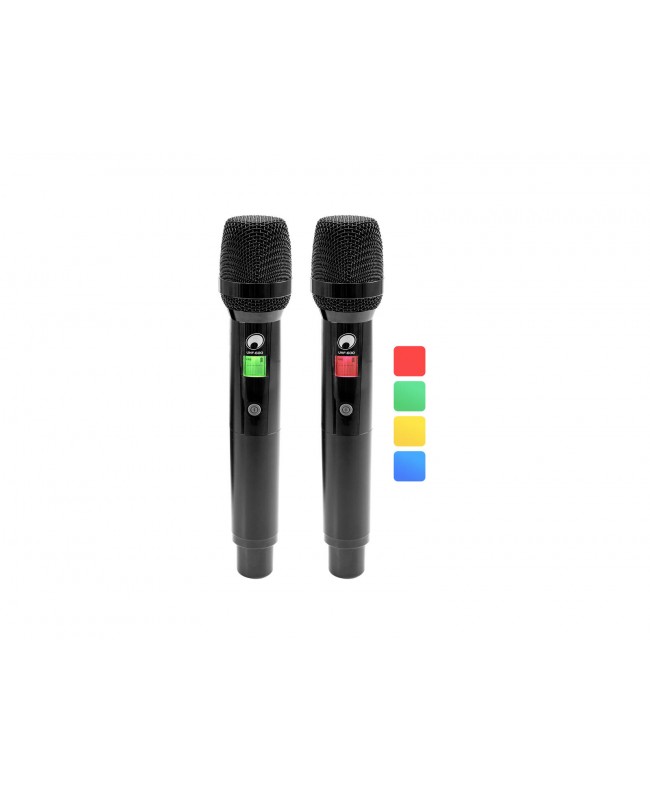

• 2 x microphone
• 2 x holder
• 4 x foot
• 1 x jack cable
• 1 x user manual
• 1 x declaration of conformity

• Type: Wireless set
• Range: Range up to 60m with line-of-sight
• Frequency band: UHF 520 - 554 MHz
• Switching bandwidth: 34 MHz
• Parallel mode: Max. 24 transmitter in 2 bands
• Frequency selection: Frequencies automatically scannable
• Weight: 2.52 kg
• Power supply: 100-240 V AC, 50/60 Hz, 12V DC 1000 mA
• Power consumption: 4.5 W
• Protection class: Protection class III
• Power connection: Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
• Number of channels: 2
• Frequency range: 50 - 16000 Hz
• S/N ratio: 80 dB
• THD: 0.5 % at 1 kHz
• Diversity: True diversity
• Latency: 3 ms
• Modulation: FM
• Housing color: Black
• Display type: 3 x multicolor TFT display
• Display: Frequency , goup , channel , RF signal level; AF audio level , Mute
• Control elements: Level control per channel, power switch, encoder, menu

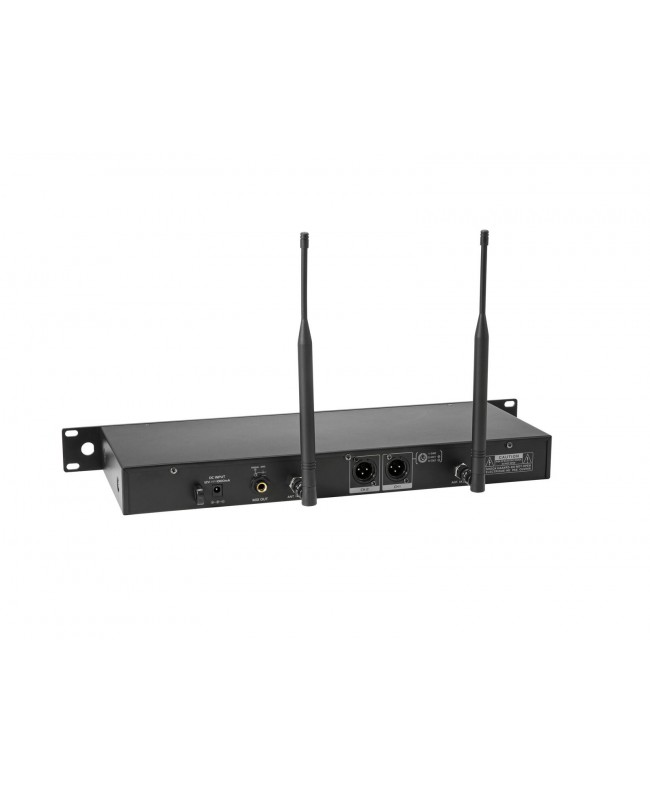

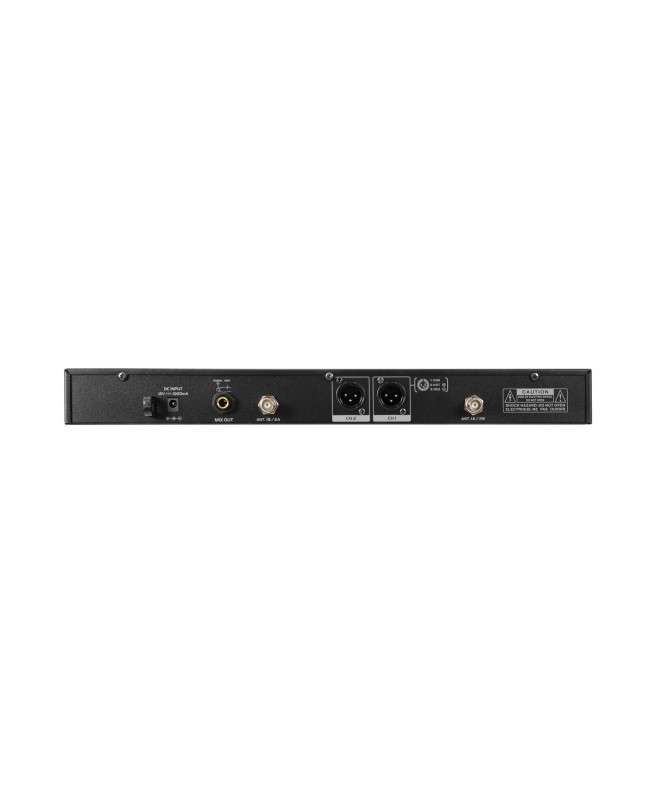

• Connections: Input: antenna via 2 x BNC (F), Output: microphone via 2 x 3-pin XLR (M) mounting version, Output: microphone via 1 x 6.3 mm plug (unbal.)
• Equalizer: Graphic equalizer 7-band
• Material: Metal
• Housing design: (19) 48.3 cm rack installation 1 U
• Mounting depth: 21 cm
• Dimensions: Width: 48.5 cm, Depth: 21 cm, Height: 4.4 cm
• Weight: 1.5 kg
• Power supply: 3V DC 118 mA
• Capsule type: Dynamic, Size: Ø 2.54 mm
• Polar pattern: Cardioid
• Battery: 2 x Mignon (AA) (not included)
• RF power output: 30 mW (HI); 20 mW (LO)
• Housing color: Black
• Display type: Multicolor LCD display
• Display: Frequency , charge status indicator , Mute , RF signal level
• Switch: On/off/mute switch
• Material: Metal
• Dimensions: Length: 25.9 cm, Diameter: Ø 4.95 cm
• Weight: 0.351 kg
