SE Electronics RN17 Microphones
  • New

SE Electronics RN17


€939.00
Tax included

Microphone for pencil-size instruments


Out of Stock

Free shipping


wishlist

SE Electronics RN17

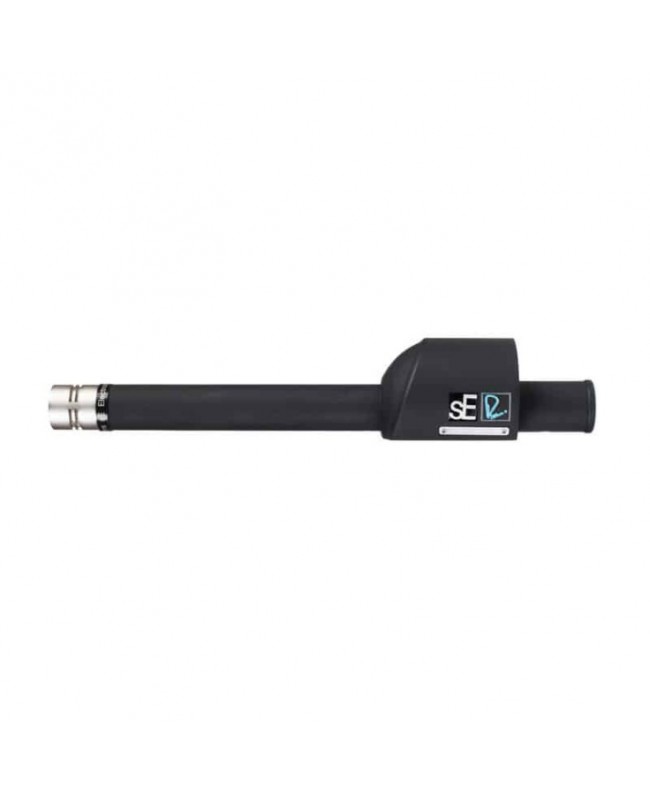

The RN17 is the newest model in the sE Rupert Neve range of microphones. The hand-wound transformer has a custom design that makes the RN17 the world's first pencil microphone with a large transformer and outstanding performance.

  • For the RN17 sE Electronics specially designed a new 17 mm capsule, the world's smallest gold-sprayed Mylar capsule, which gives this microphone magnificent output and an incredible level of definition and detail. The Rupert Neve-designed transformer ensures extremely high headroom. The combination of the two provides an excellent result inside an elegant chassis with a satin finish.

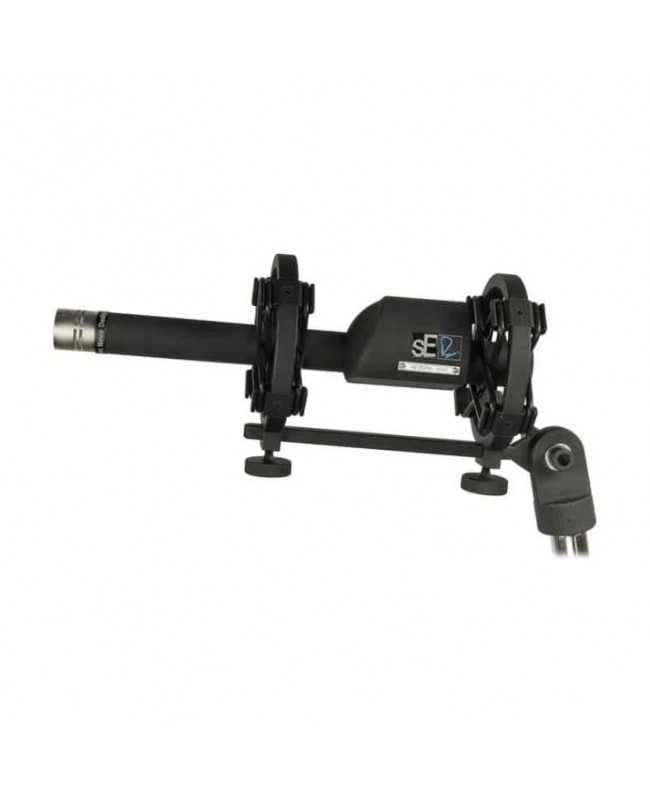

  • The microphone comes with a cardioid capsule inside a beautiful wooden case that also allows storage of optional capsules: supercardioid, omni, hypercardioid and figure-of-eight. The entire system comes with a custom shock-mount inside a top-quality flight case.
  • The sE RN17 represents the perfect pencil microphone...ideal for all types of applications. Exactly like the sE Rupert Neve RNR1, this microphone will change the way you record forever.
  • Weight: 248 g
  • Main features:
  • Generating element: condenser
  • Polar pattern: cardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity at 1 kHz in 1 kOhm: -44.5+-0.5dBV/ Pa(6mV/Pa)
  • Rated impedance: 200 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR (1): 23 dB
  • Equivalent noise level, A-weighted (1): 18 dB
  • Signal-to-noise ratio, CCIR (1) (rel. 94 dB SPL): 69 dB
  • Signal-to-noise ratio, A-weighted (1) (rel. 94 dB SPL): 74 dB
  • Maximum SPL for THD 0.5% (2): 150 dB
  • Maximum output voltage: 4V
  • Dynamic range of the microphone amplifier (A-weighted): 131 dB
  • Supply voltage (P48, IEC 61938): 48 V +- 4 V
  • Current consumption (P48, IEC 61938): 3mA
  • Matching connectors: XLR3F
  • Diameter: 44 mm
  • Length: 200 mm

SERN17
