A Ø 3.5 mm TRS jack provides left/right 100 mW @16 Ω output for earphones. Optional standard or professional Ø 3.5 mm TRS noise-isolating earphones are available.
The system offers Engineer Mode (ENG MODE) so the sound engineers have full control in any live performance.
Specs

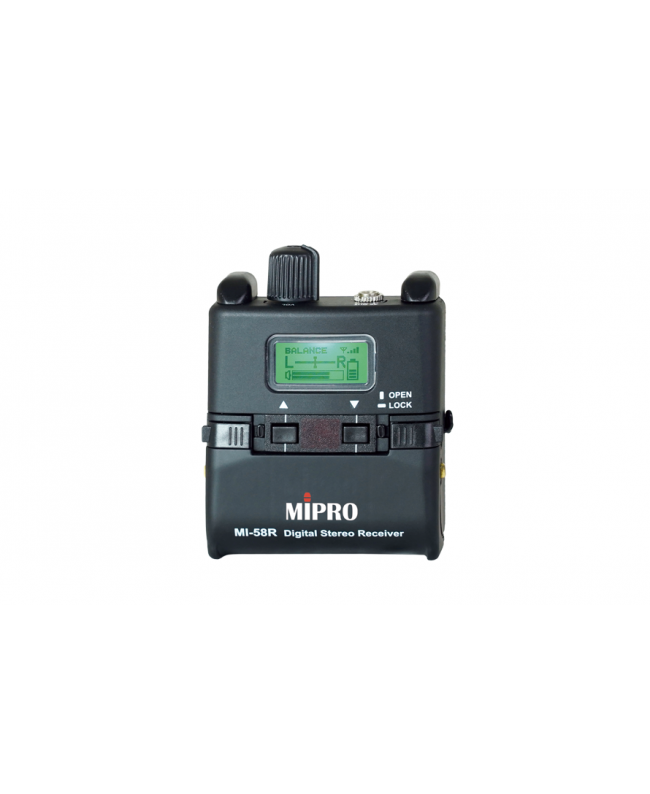

Model MI-58R
Name 5 GHz Digital Stereo Bodypack Receiver
Housing Glass-fiber reinforced plastic
Display Backlit LCD
Frequency BandISM 5.8 GHz
Modulation TypeDigital modulation
Channel SettingACT™ sync
Receiving ModeTrue diversity
Latency < 1.8 ms
Frequency Response 20 Hz – 23 kHz (stereo)
Stereo Separation > 100 dB
S/N Ratio109 dBA
THD0.03% @ 1 kHz
Sensitivity5 μV input level, S/N > 100 dB
Earphone Jack 3.5 mm TRS
Battery Type One 18500 Li-ion battery
Battery Charging MP-8 single-slot charging station
