Mipro ACT-5814A Receivers
  • New

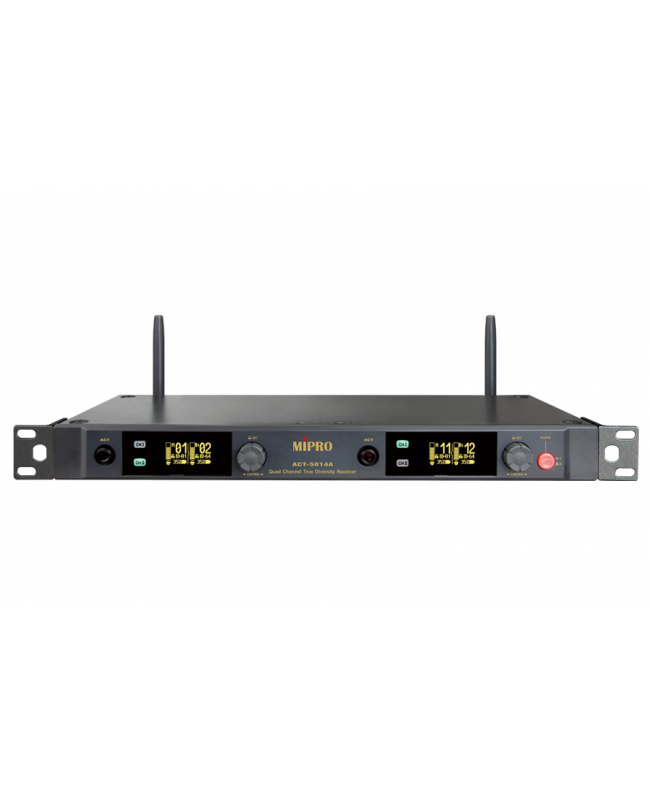

Mipro ACT-5814A

€899.00
Tax included

5 GHz Digital Quad-Channel Receiver

Qty

In Stock

Delivery

Do You want Your order by Monday, 04/08/2025? Order within 14 hours and 28 minutes

Free shipping

Compare

wishlist

Mipro ACT-5814A



  • The ACT-5801/5802 receiver has a built-in high efficiency antenna on the front panel.
  • The ACT-5812A/5814A receiver has antenna connectors on the rear panel for connecting the external antenna system.
  • MIPRO’s unique control panel equips a graphic OLED, providing a larger field of view without a blind angle.
  • Stable digital modulation circuitry. All frequencies are located in one frequency band.
  • Dual tuner true diversity receiving ensures long reception distance and eliminates signal drop-out.
  • ACT-5812A/5814A equipped with TNC connectors for daisy chain output which can be daisy-chained up to three receivers.
  • MIPRO Auto Scan and ACT™ function provide the transmitter’s frequency with precise and rapid sync to the receiver.
  • Effectively avoids RF interference from UHF, Bluetooth, Wi-Fi and all 2.4 GHz communication products.
  • Presets Group A and B. There are 12 interference-free channels in Group A and total of 24 interference-free channels in Group B1 & B2.
  • Antenna connector provides bias for MIPRO antenna systems to boost reception distance and signal.
  • External AC 100 – 240 V switching power supply to ensure stable operation of the system even under drastic voltage change.
  • Pairs with ACT-580H handheld and ACT-580T bodypack transmitter.
  • All are designed and made in Taiwan to ensure high quality and value.

Specifications

  • Name 5 GHz Digital Quad-Channel Receiver
  • Channel Quad
  • Chassis EIA standard full-rack (19") metal chassis
  • Display Graphic OLED
  • Frequency Band ISM 5.8 GHz
  • Preset Channels Presets Group A and B. There are 12 interference-free channels in Group A and a total of 24 interference-free channels in Group B1 & B2. 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered on the same occasion.
  • Receiving Mode True diversity
  • Sample Rate 48 kHz / 24-bit
  • Frequency Response 18 Hz – 23 kHz
  • Latency < 1.5 ms (Group B)
  • Dynamic Range > 120 dBA
  • Output Connector Balanced XLR & Unbalanced Ø 6.3 mm phone jack, -10 to +20 dB adjustable range
  • Antenna 50 Ω TNC female connectors provide bias for boosters. TNC connectors for daisy chain
  • Power Supply DC 12 – 15 V. External AC 100 – 240 V switching power supply
  • Dimensions 420 × 44 × 162 mm (W × H × D)
  • Weight Approx. 1.6 kg
