SEETEC ATEM156S-CO

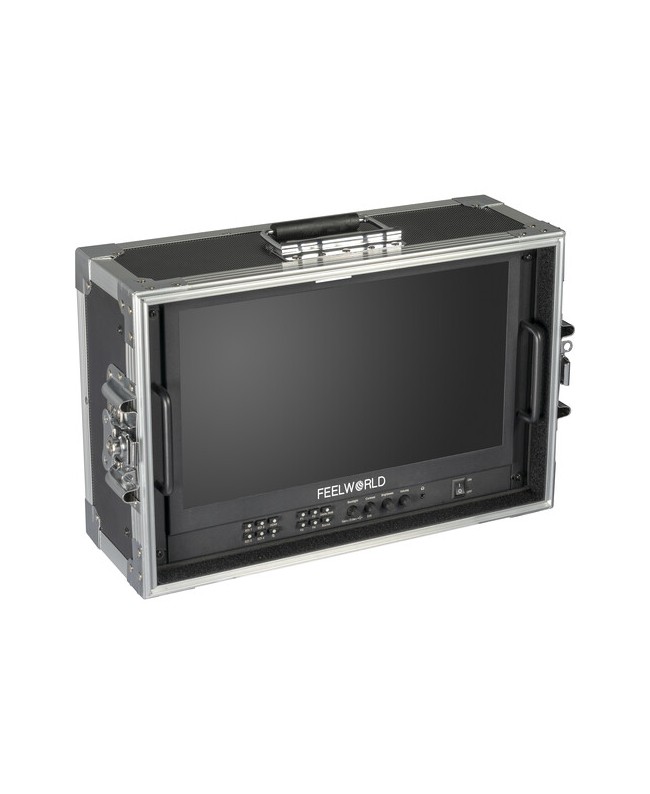

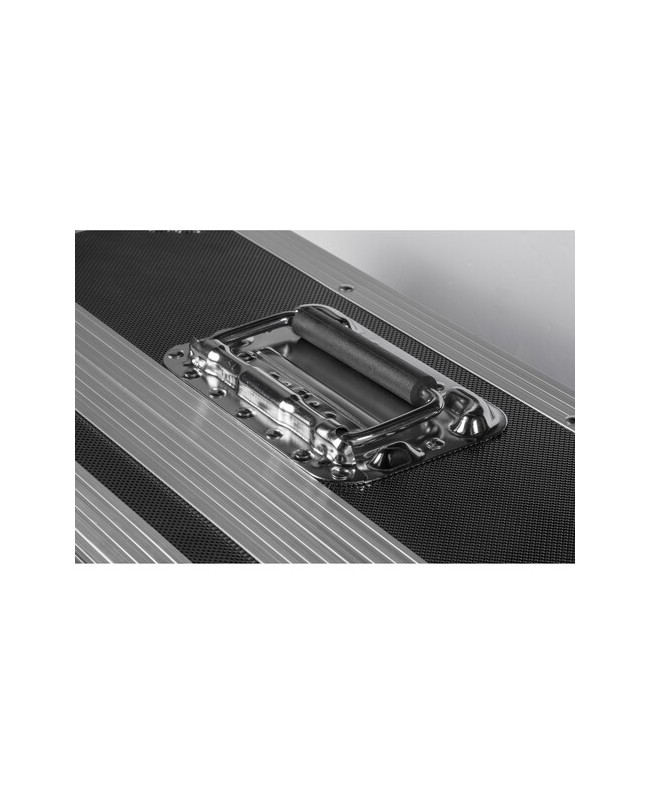

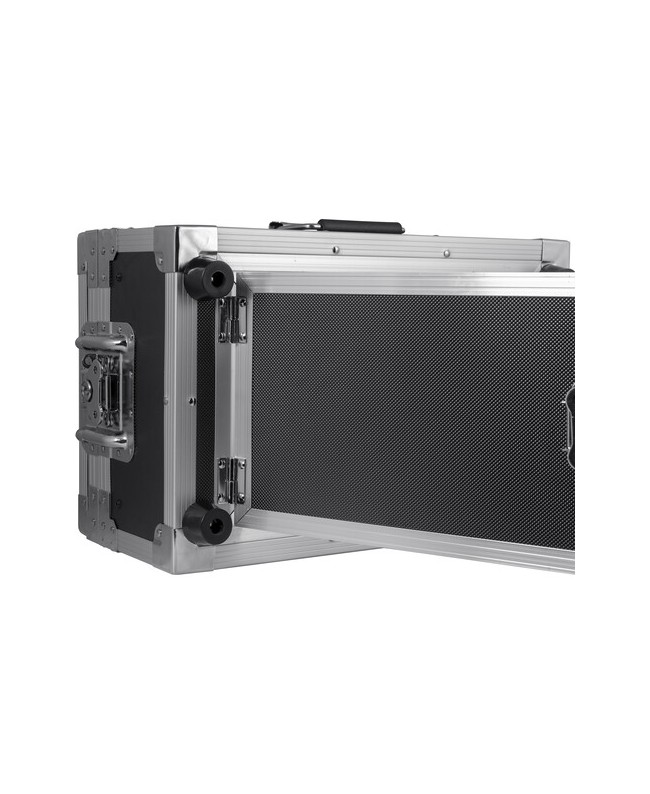

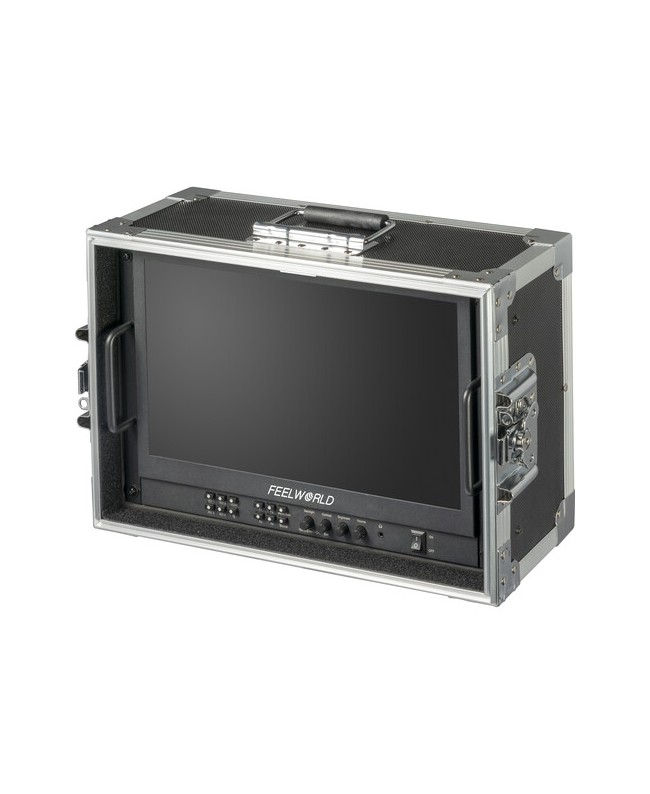

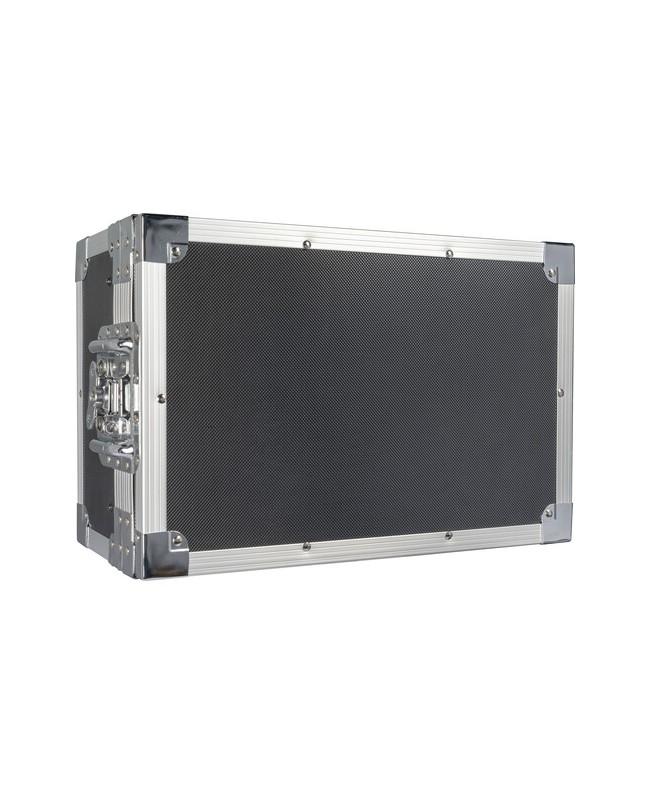

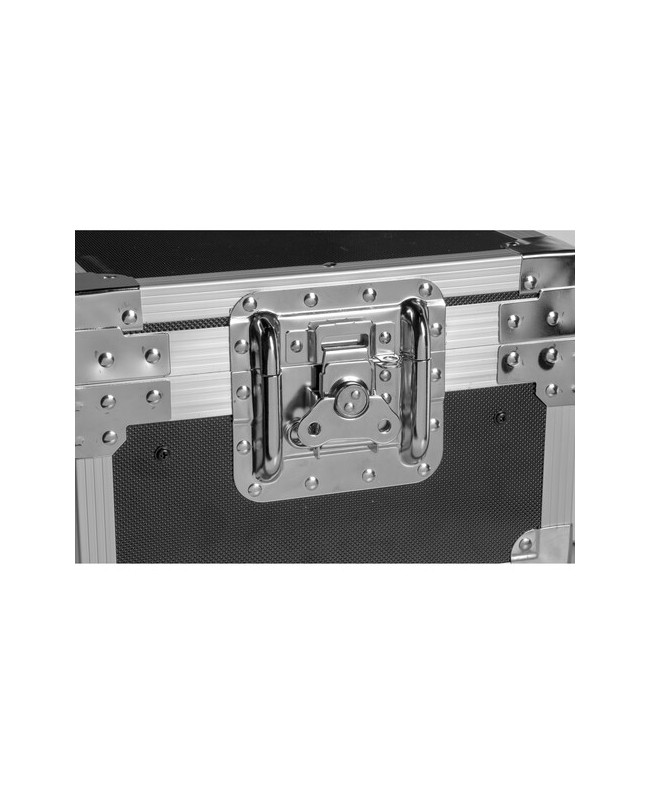

The 15.6-inch Broadcast Director multicamera monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and a brightness of 200 cd/m 2. The rear panel features an HDMI input, four 3G-SDI inputs and four 3G-SDI outputs and supports quad-view and PiP display layouts so you can view the inputs simultaneously. The monitor is installed in an aluminum case that has a back cover for access to the connectors and battery, and the front cover is attached for transport to protect the monitor. It can be carried by the top handle.

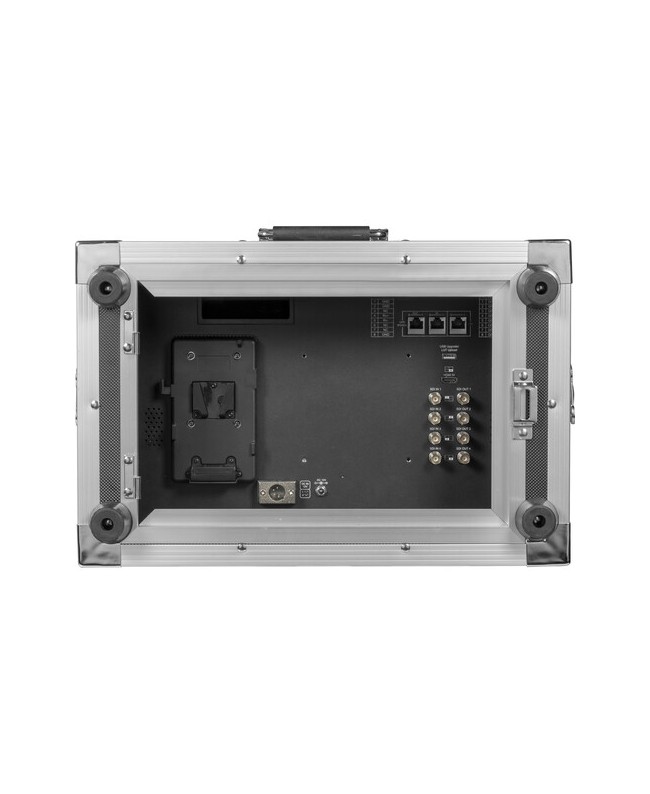

Professional monitoring tools such as focus peaking, markers, monochrome, R/G/B only, pixel-to-pixel mapping and image inversion are built in to analyze the video and ensure a correct image. A USB input allows the addition of user-defined 3D LUTs and supports GPI and RS-485 control. The rear panel features an integrated V-mount plate for power distribution in the field and a VESA mounting configuration for alternative mounting options.

Key features

• 15.6-inch full HD screen with 1920 x 1080 pixels
• Robust, durable aluminum housing
• Flexible and intuitive button operation, easy to use
• Multiple display modes (Single, PiP, Quad)
• Supports 3D LUT registration to REC.709 and user's 3D LUT upload (up to 36)
• Waveform, vectorscope, RGB histogram, focus assistant and monochrome functions, you can precisely expose and focus each shot
• Multiple interfaces include four 3G-SDI inputs and outputs, HDMI input, RS-485 and GPI
• Stereo headphone output
• Support for VESA standard mounting points for bracket or wall mounting

Image features

• Quad split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
• Focus assistant with peak hold
• False color
• Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
• Display rotation (0, 90, 180, 270°, H/V mirror)
• Marker field (red, green, blue, mono)
• Lock image
• Enlarge
• Pixel by pixel
• Center display
• Screen display (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
• Line color (red, green, blue, white)

In the box

• FeelWorld 15.6” Multicamera Broadcast Director Monitor (Handheld)
• Power adapter
• Battery plate with V-mount
• Mini HDMI cable
• SDI cable
• Solar cover
• Case cover
• 1 year limited warranty
