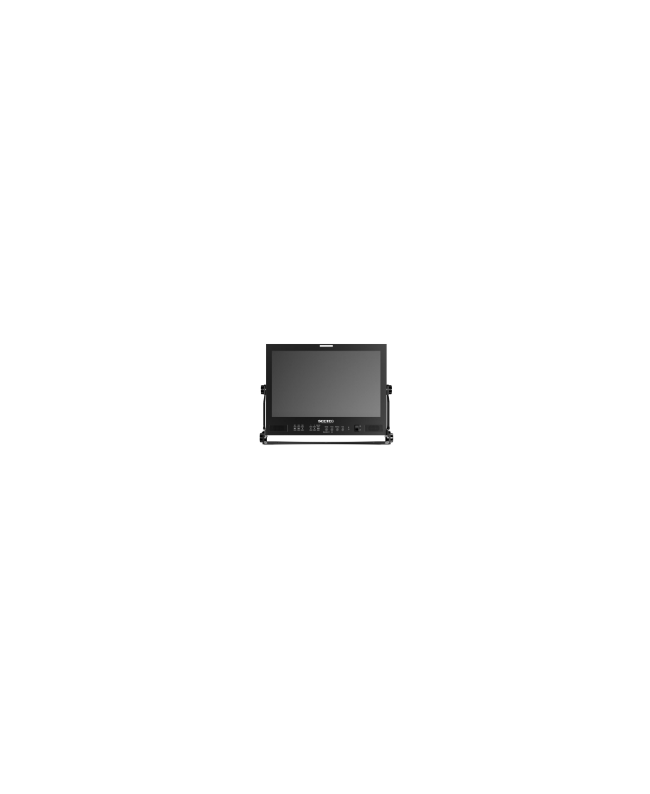

SEETEC ATEM173S Signal management monitor

SEETEC ATEM173S

€1,023.00
Tax included

Monitor 17,3“ IPS, 1920x1080, 4K HDMI 4x 3G SDI in e output

Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 1 hours and 23 minutes

Free shipping

Compare

wishlist

SEETEC ATEM173S

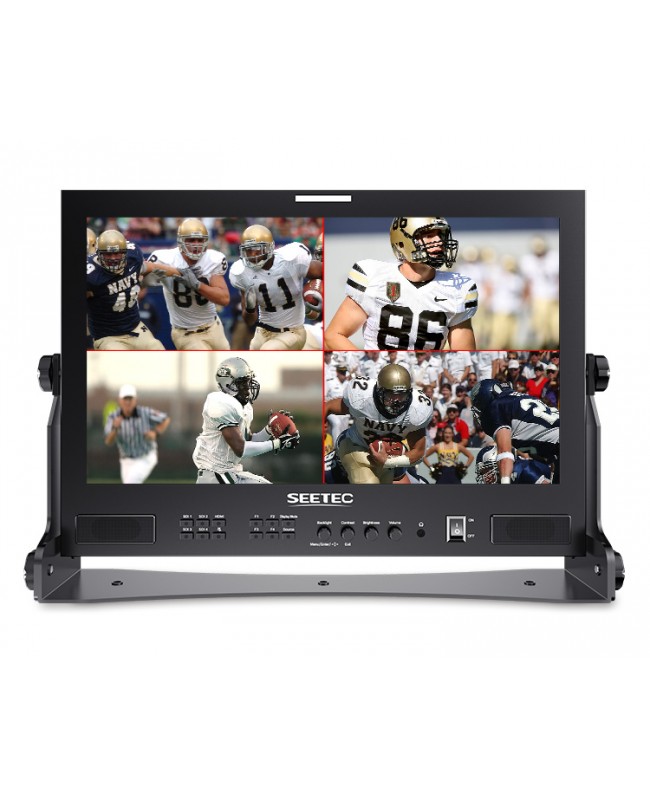

  • Multi-screen display mode (1P, PIP, 4P)
  • IPS screen Full HD 1920x1080
  • Supports 3D LUT Log on REC.709 and user upload 3D LUT (up to 36)
  • Supports HDR monitoring
  • With functions such as waveform, vectorscope, RGB histogram, focus assistant, monochrome, etc., you can precisely expose and focus each shot.* Supports OSD TALLY and LED TALLY
  • Stereo headphone output, built-in speaker
  • In quad display mode, SDI audio can display 4 channels and 4 timecodes
  • In single display mode, SDI audio can display 16 channels
  • Supports GPI control
  • In PIP/quad display mode, the signal can be switched freely
  • User-defined menu storage function

Included:

  • Standard accessories
  • 2-A DC power adapter
  • Battery plate with V-mount
  • U-mount bracket
  • 1.5 m mini HDMI cable
  • 1.5 m BNC cable
  • Sunshield
  • Operating instructions
  • Description: 17.3“ 3D monitor Director LUT
  • Model: ATEM173S
  • Screen size: 17.3” IPS
  • Resolution: 1920 × 1080 pixels
  • Display colors: 16.7 million 8-bit colors (6 bits + FRC)
  • Color space: 72% NTSC
  • Pixel pitch: 0.1989 (L) x 0.1989 (H) mm
  • Aspect ratio: 16:9
  • Brightness: 300 cd/m²
  • Contrast: 700:1
  • Backlight: LED
  • Response time: Tr + Tf=25ms
  • Viewing Angle: 89°/89° (L/R) 89°/89° (U/D)

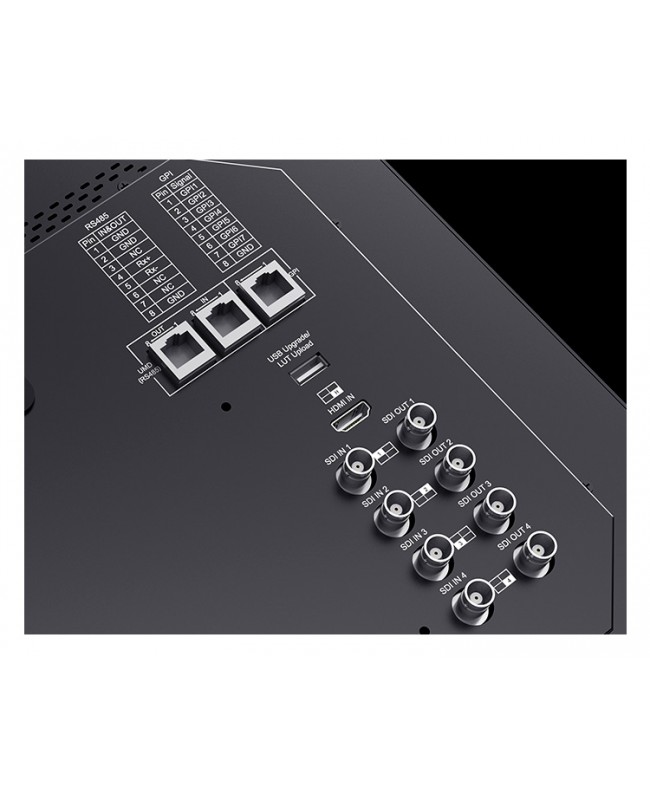

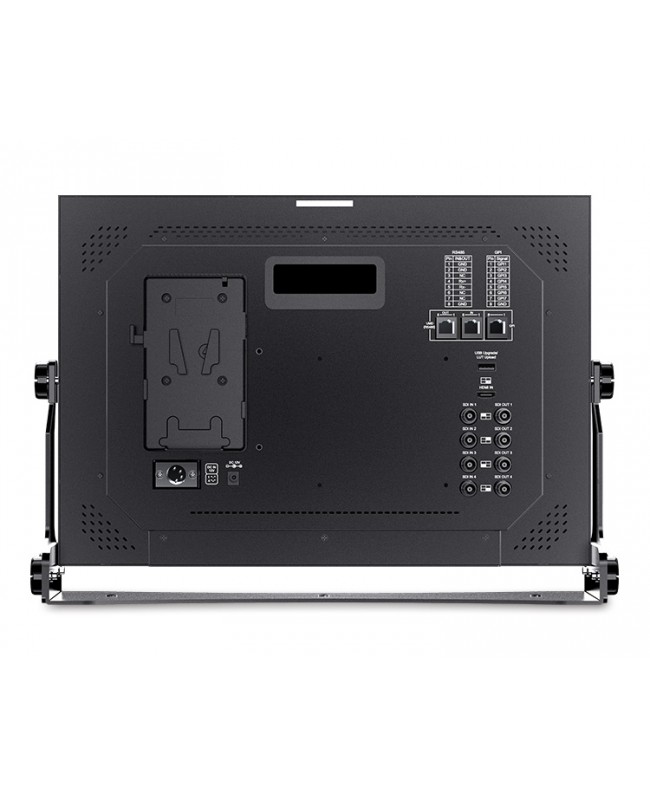

  • Inputs: HDMI*1, SDI*4, RS458*1, DPI*1, USB*1
  • Outputs: SDI*4, RS458*1
  • Audio: 3.5mm stereo headphones, speaker

SDI support format:

  • 720p (60/59.94/50/30/29/25/24/23.98)
  • 1080i (60/59.94/50)
  • 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
  • 2048x1080i (60/59.94/50)
  • 2048x1080p (60/59,94/50/30/29,97/25/24/23,98)

Formato di supporto HDMI:

  • 480i/576i/480p/576p
  • 720p (60/59.94/50/30/29.97/25/24/23.98)
  • 1080i (60/59.94/50)
  • 1080p (60/59.94/50/30/29.97/25/24/23.98)

Energy

  • Power Consumption: =22W
  • Input Voltage: DC 12V
  • Operating Temperature: 0°C - 50°C
  • Storage Temperature: -20°C - 60°C
  • Unit Dimensions: 425L×296H×23D (mm) (without bracket)
  • Individual Weight: 2.84 kg (without bracket)
