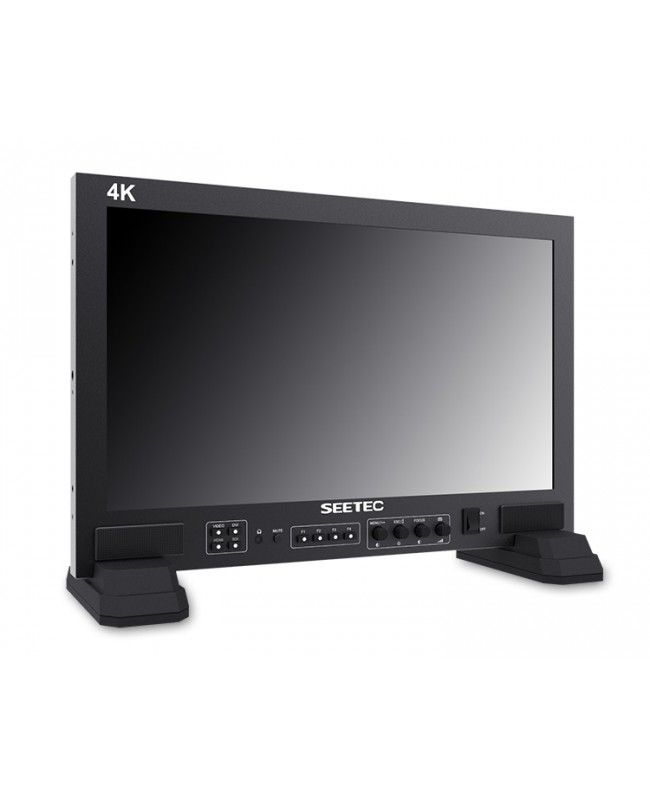

SEETEC FS173-S4K

• Screen with a wide viewing angle, Full HD 1920x1080, bright display and reproduction of the entire color gamut

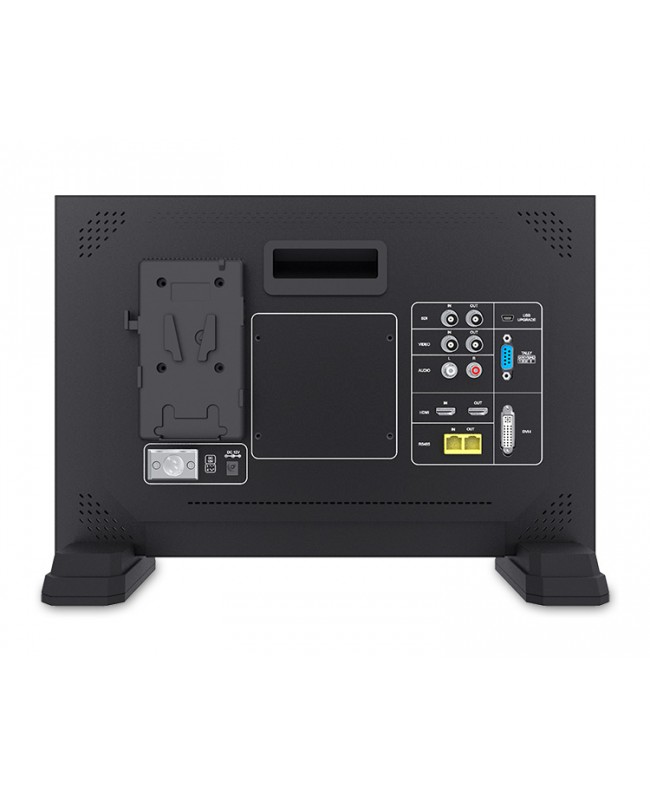

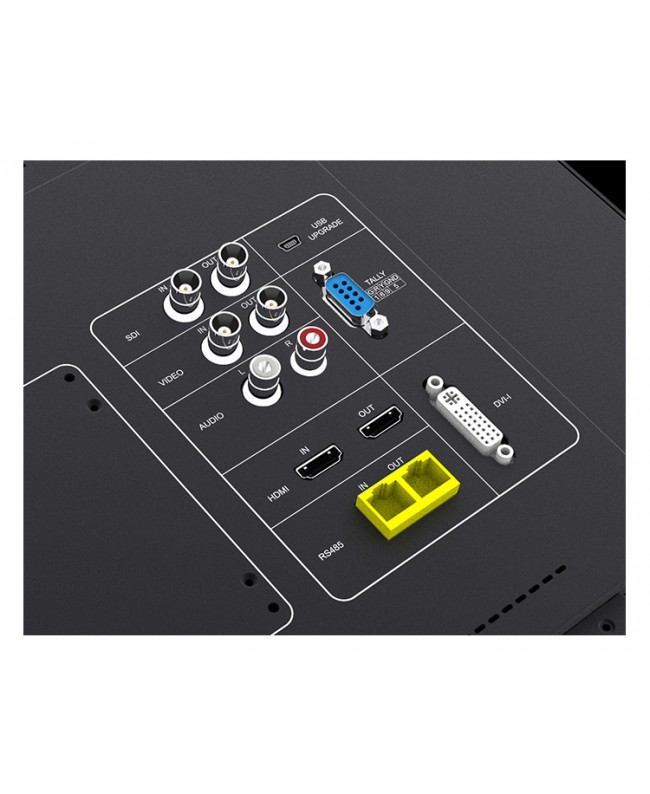

• Inputs HDMI, 3G-SDI, video, audio (L / R), RS485, DVI and outputs HDMI loop-through, 3G-SDI, video, RS485
• UMD and text display (TSL 3.1 / 4.0 protocol)
• Peaking Focus Assist (red marking on focused parts of the monochrome image)
• Field control (red, green, blue, mono)
• Center marker
• Security display (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Image mirror (horizontal, vertical, horizontal and vertical)
• Image lock
• Zoom all - up - down - left - right
• Audio monitoring via 3.5 mm stereo headphone socket on the front and built-in loudspeaker
• Built-in LED tally displays (red, green, yellow) optional
• 12-volt power supply included or 4-pin standard XLR power input and V-mount battery power supply possible
• Peaking Focus Assist: The peaking filter is used to help the cameraman get the sharpest image. When activated, the internal processor displays a colored highlight on the screen where sharp edges appear. Displays red highlighting on focused parts of the monochrome image.

Additional functions

More professional functions help users to visualize and focus precisely during the recording, production and playback of movies/videos.

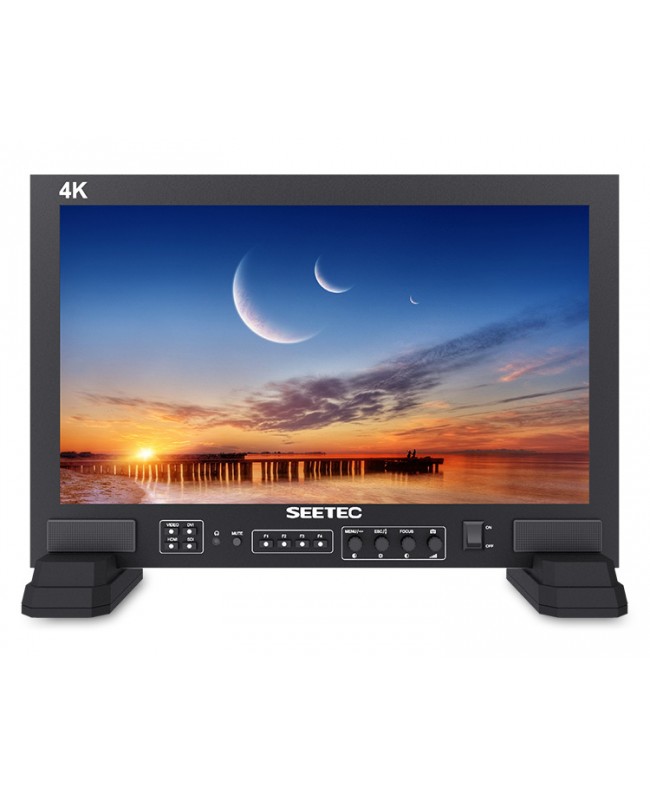

Full HD resolution

Broadcast quality: See every little detail on a high-quality Full HD panel!

Experience Full HD 1080P, 16.7 million color images, clearer and sharper details, powerful color display capabilities show what you see is really what you get! Let pre- and post-production be more accurate.

True colors. Professional color calibration

Use the Rec.709 color standard

SEETEC uses the professional Rec.709 HD color standard and color calibration technology with factory calibration of professional tools. This way, monitor calibration can be done efficiently and color is accurately reproduced without distortion to represent the actual image in video production.

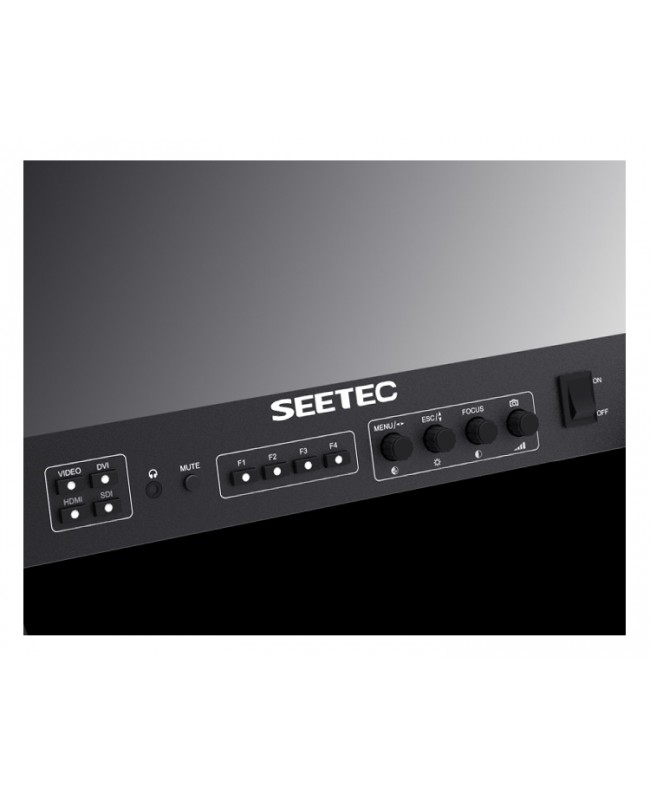

OSD Operation

Easy to use

Fast signal switching: VIDEO, DVI, HDMI, SDI

Four assignable hotkeys: F1, F2, F3 and F4 for quick access to the required functions, peaking, pixel to pixel, camera mode, center marker, screen marker and other functions at the touch of a button.

Four rotary encoder selectors: Instant access to menu, saturation, brightness, contrast, focus, camera mode.

Professional monitoring

SD, HD and 3G monitoring in broadcast quality!

The SEETEC FS173-S4K is an incredibly high-quality monitor that is so versatile that it can be used in broadcasting, live mobile production or on the set of a feature film! The monitor is equipped with 3G/HD/SD-SDI, HDMI, audio, video, RS485 and DVI-I inputs. Various input formats for all your analog HD and SD video signal display and input needs. Professional feature set.

Innovative optional TALLY design

The innovative tally function can not only indicate the recording status to the cameraman, but also demonstrate the professional technology of TV recording to show you when the signal is on air and who is in charge of it in the control room.

Hassle-free power

Monitoring wherever you need it!

We have simplified the power supply to the monitor. The FS173-S4K can be powered in a variety of ways: with a DC adapter or lithium batteries. This monitor has both a 4-pin XLR socket for 12-volt power and a V-mount that can hold a V-lock battery of your choice.

Stability and reliability

The housing is made entirely of metal, which not only makes the product more stable and durable, but also solves the problem of heat dissipation.
