SEETEC LUT215

Professional monitoring tools

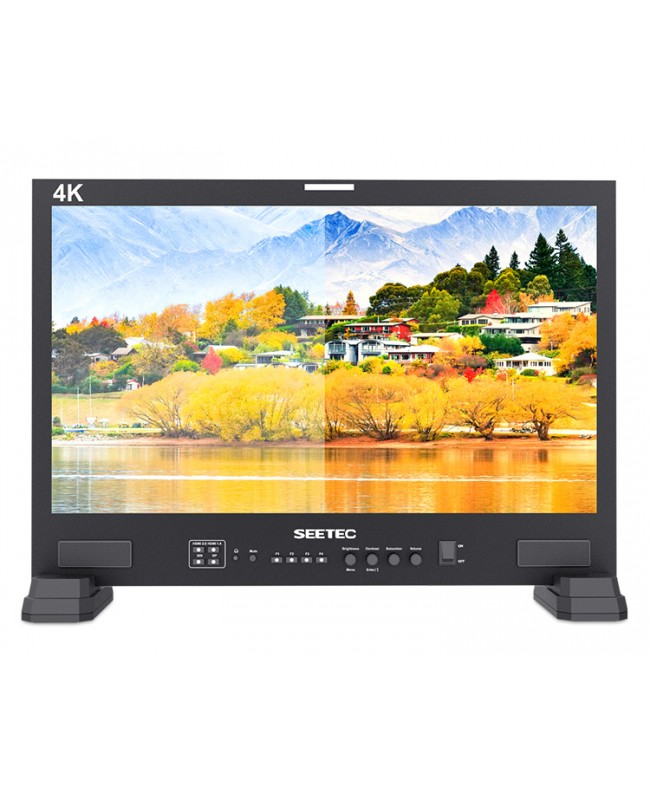

SEETEC LUT215 Full HD broadcast monitor with HDMI 4K for native display up to 2160p60. The machined metal design includes an integrated control panel for using features such as integrated 3D LUTs, histogram, built-in 16-channel audio meters, focus assist, false colors, overexposure, timecode, picture-in-picture, anamorphic mode, zoom image, center indicator, safety indicator, ratio indicator, control panel, selectable gamma setting to freeze the image and more, via the front panel or GPI control!

21.5” IPS LCD, full HD resolution

transmission quality that allows you to see every pixel

The SEETEC LUT215 is equipped with a 21.5-inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 3000:1 and an LED backlight with a brightness of 250 cd/m², for precise video reproduction. Combines a wide viewing angle of 178° horizontally and vertically. Easy viewing is ensured by reducing color shifts due to the viewing angle.

True color. Professional color calibration. Use the Rec.709 color standard.

SEETEC uses the professional color standard Rec.709 HD and utilizes color calibration technology. With professional factory instrument calibration, monitor calibration can be performed efficiently and accurate color reproduction can be easily achieved without distorting the color and displaying the real image during video capture.

Accurate color reproduction

The SEETEC monitor supports the ITU standards and consistent color space HD Rec.709 video standard, advanced image processing technology, so that the image is displayed clearly, the color is extremely natural, to ensure accurate color reproduction, to reflect the physical nature of the shooting, so that users can accurately judge the quality of various incoming video signals.

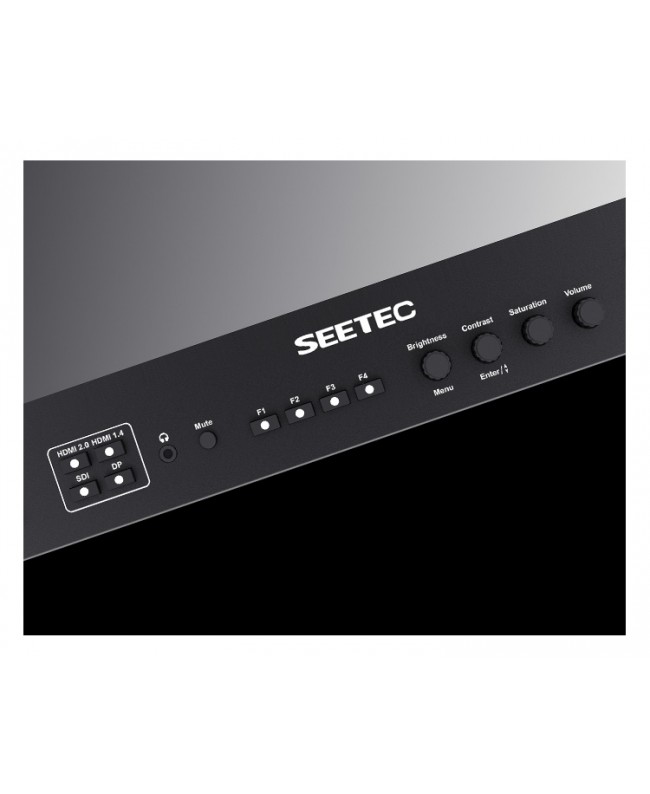

Professional front control panel

When you are busy recording, you need to be able to control the equipment easily, and the LUT215 can meet your needs. It can switch between sources with just a push of a button and create custom keyboard shortcuts, as well as quickly adjust brightness, contrast, saturation and volume to make recording easier. And the button with night light technology keeps you informed about the current input signal and the hotkeys used.

Professional monitoring quality

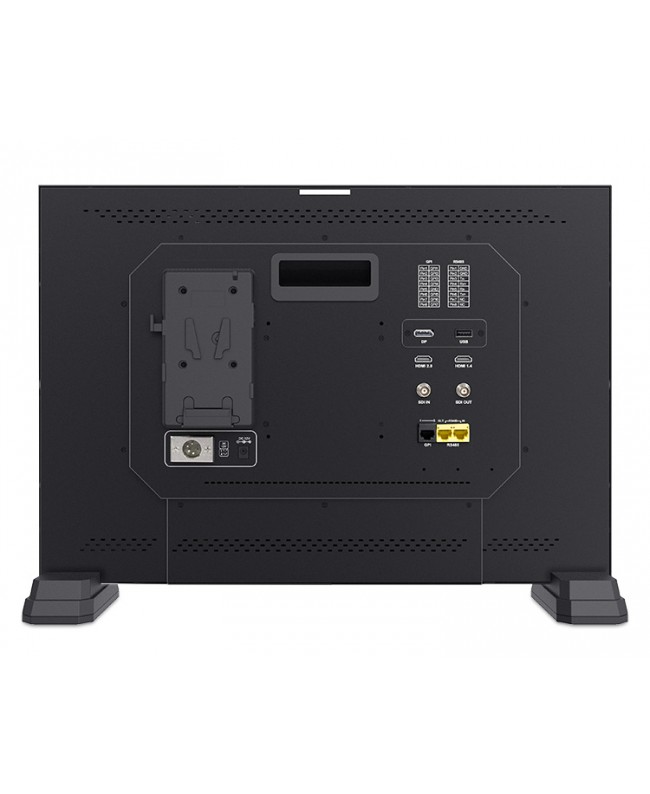

SEETEC LUT215 is a monitor of the highest quality, versatile enough to be used by the broadcasting station, for mobile live production or on the set for feature film production! The monitor is equipped with 3G-SDI, HDMI2.0, HDMI1.4, RS485, GPI and DP interfaces, suitable for transmitting various signal formats.

HDMI/DisplayPort 4K inputs

HDMI 2.0 and DisplayPort 1.2 support 4K 60Hz signal input.

HDMI 1.4 supports 4K 30Hz signal input.

Built-in 3DLUT de-log uploader 3DLUT user cube uploader

The monitor has built-in 3DLUT multicamera logs for Rec 709 conversion, including standard C-Log, full C-Log, S-Log2, S-Log3, BMD-4Klog.

Supports custom 3DLUT cube files (supports 17x17x17, 33x33x33, 65x65x65) that can be loaded via USB, which is useful for color correction during post-production. The user can store up to 16 instantly selectable 3D LUTs.

16-channel audio level meter

The monitor can strip audio from SDI and HDMI. It supports selecting any 2 channels of audio to output to the speaker or 3.5mm headphone jack. For SDI audio, it supports displaying embedded audio meters up to 16 channels, and it can be selected to display only 2, 4, 8, or all 16 channels. For HDMI audio, only 2-channel audio meters are supported.

Multi-window mode PIP/PBP mode

The picture-in-picture function can monitor two signals at the same time, which can be displayed simultaneously for different formats, resolutions, frame rates or even different input types for comparison. And it can simultaneously display a LUT loading effect. You can adjust the image size in the image, the horizontal and vertical position, and rotate the image.

UMD and text tally display TSL 3.1/4.0 and Image Video Protocol

LUT215 supports UMD and text tally display of TSL 3.1/4.0 and Image Video protocol, with TSL address selection 0-126 and max. 16 displayed letters. UMD inputs via RS485 port and outputs via RS485 port.
