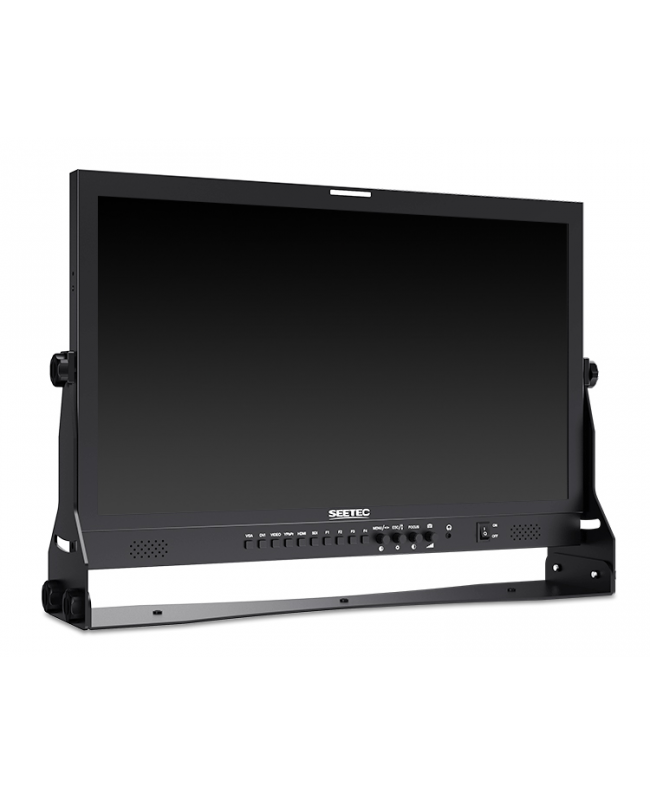

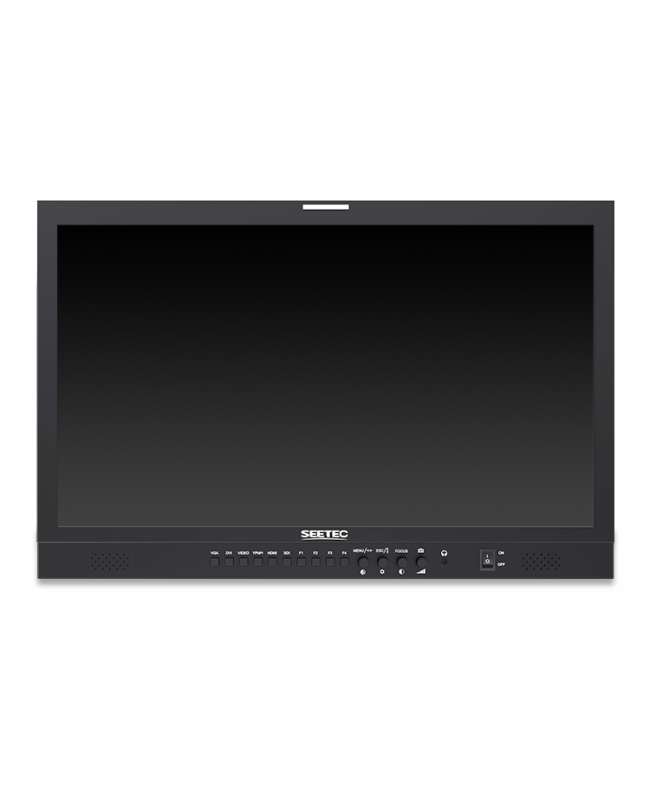

SEETEC P238-9HSD

Seetec Monitor LCD Broadcast PRO 23.8” 3G-SDI 4K HDMI, IPS Full HD 1920x1080 with brightness 250 cd / m², display 16M colors in color standard Rec.709, 12V power supply via XLR or V-Lock.

23.8“ 4K HDMI/SDI broadcast monitor

SEETEC P238-9HSD, with a large 23.8” screen, can help you with every shot and give you confidence that no detail has been overlooked.

Thanks to the wide range of signal interfaces and a number of additional functions, the P238-9HSD can be easily used for on-set monitoring, TV news production, in the broadcast studio and in the OB van.

IPS panel full HD

With a high-resolution IPS panel, it delivers outstanding detail, covers 72% of the NTSC color space, and faithfully reproduces original colors.

178° viewing angle

With a wide 178° viewing angle that offers a larger field of view than a regular panel, you can enjoy an ideal image with brilliant, saturated, and natural colors from any angle.

Rec.709 color standard

SEETEC uses the professional Rec.709 HD color standard and color calibration technology. With factory professional device calibration, it is possible to achieve efficient monitor calibration and accurate color reproduction without color distortion, showing the actual image during video recording.

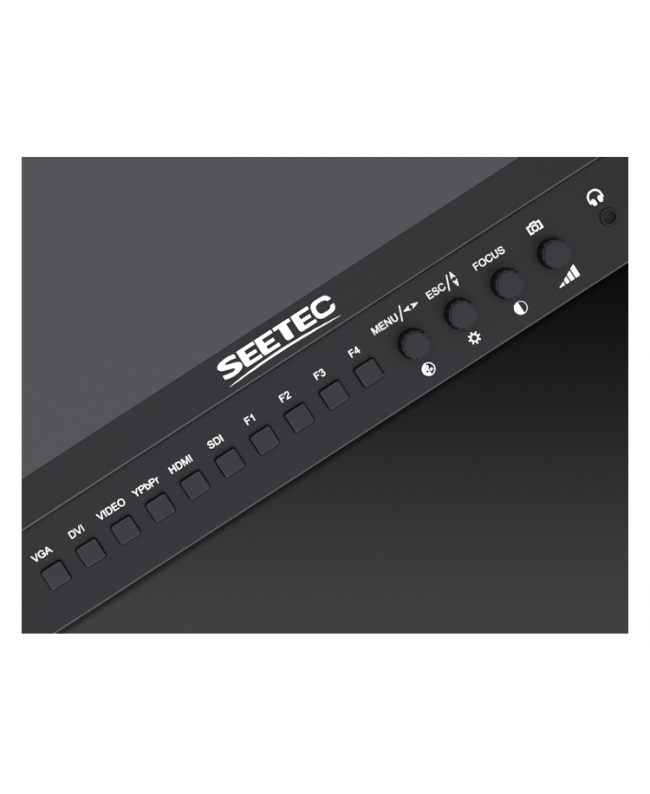

Flexible and intuitive control buttons

The P238-9HSD features multi-purpose buttons and controls for switching between sources, as well as 4 hot keys (F1~F4). You can customize the hotkey function according to your needs, such as the control area, security frame, etc.

In addition, brightness, contrast, volume, etc. can be quickly adjusted to facilitate recording.

Multiple signal interfaces to meet different needs

The monitor is equipped with 3G-SDI, HDMI, YPbPr, video, DVI and audio L/R interfaces to meet all requirements for input and display of HD, SD and analog video signals.

3-color tally light to improve team cooperation

The P238-9HSD is equipped with tally lights on the front and rear panels with red, green or yellow tally signal.

This means that you always know during live production when you are recording or broadcasting, or you can see which camera is currently broadcasting on the switcher's preview output.

The tally is connected via an industry-standard connector on the rear panel.

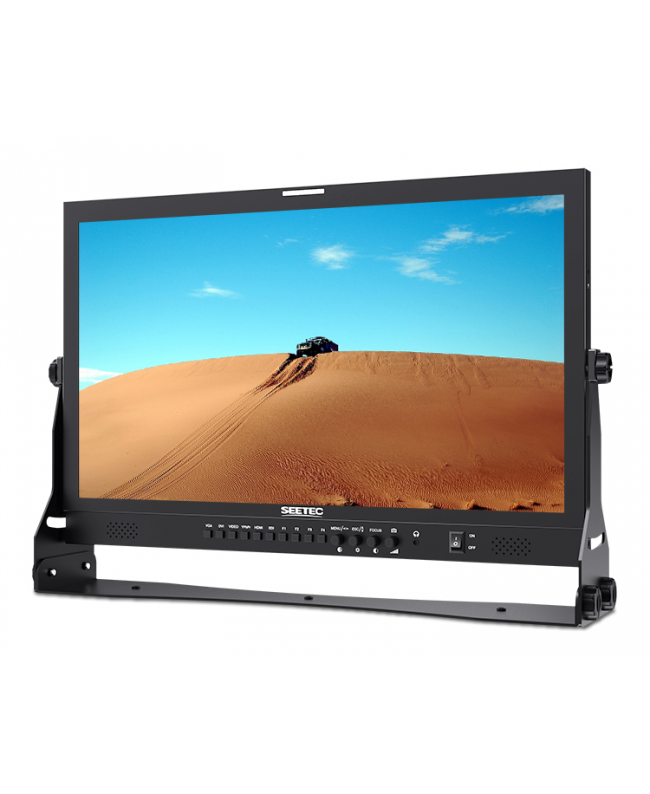

Wide viewing angle, full HD 1920x1080, bright and colorful display

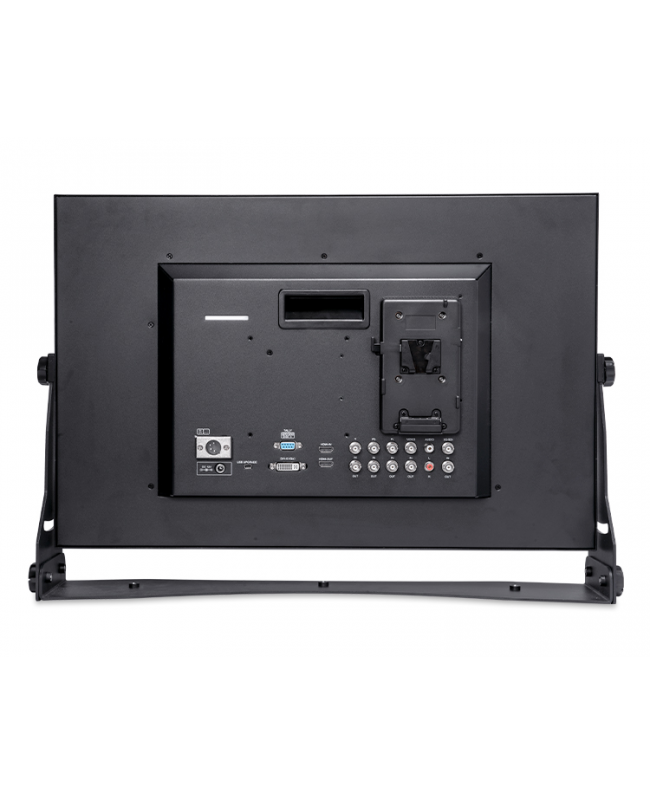

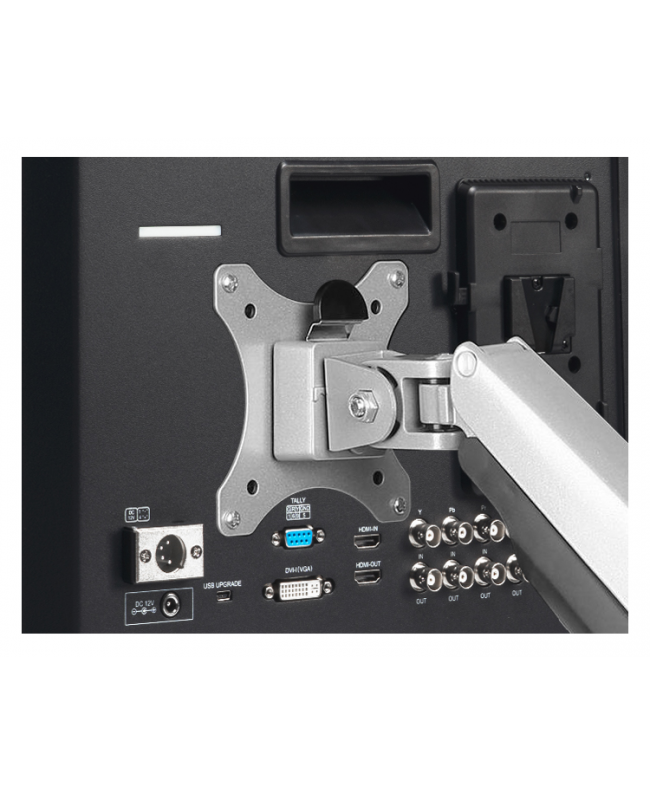

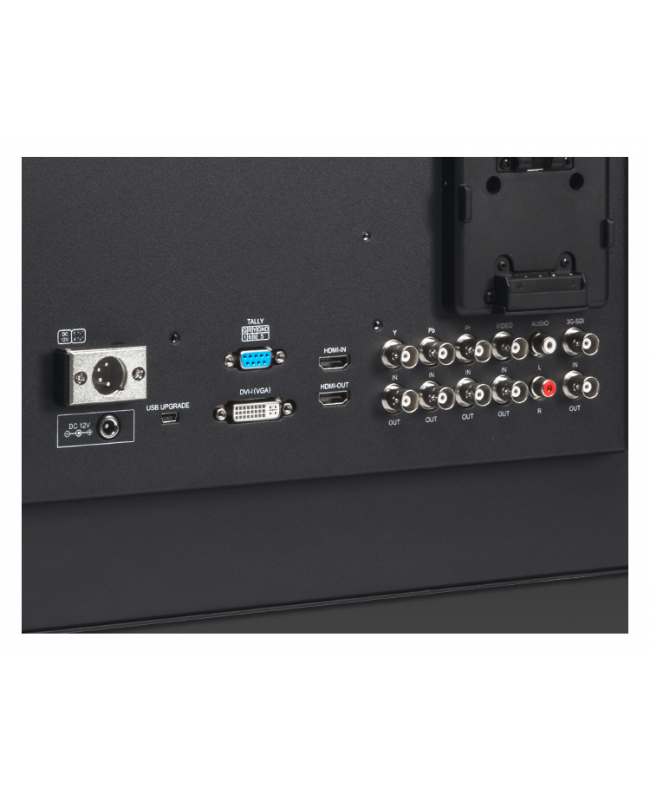

Inputs: HDMI, 3G-SDI, Ypbpr, video, audio (L/R), DVI and outputs: HDMI, 3G-SDI, Ypbpr, video loop-through

monitoring via 3.5 mm stereo headphone jack on the front and integrated speaker

integrated LED displays (red, green, yellow)

power supply via included 12-volt power supply or via standard 4-pin XLR

special features:

• Peaking Focus Assist (red marking on focused parts of the monochrome image)
• Field control (red, green, blue, mono)
• Camera mode
• Pixel to pixel
• Center marker
• Security marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
• Image mirroring (horizontal, vertical, hor&ver)
• Freeze image
• Zoom All
• U/D and L/R Zoom
