Blackmagic Design Streaming Decoder 4K Streaming & Encoding
  • New

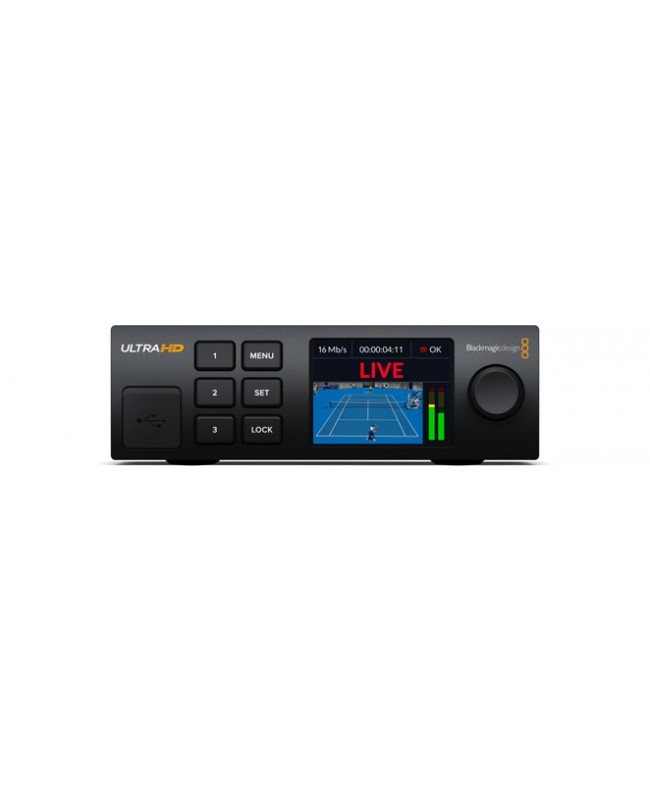

Blackmagic Design Streaming Decoder 4K

€918.00
Tax included

High-speed solution for simultaneous acquisition and playback of 8 Ultra HD video channels via 100G Ethernet. For total redundancy, it features 2 100G Ethernet QSFP ports.

Qty

In Stock

Delivery

Do You want Your order by Wednesday, 07/05/2025? Order within 3 hours and 6 minutes

Free shipping

GFP

We will plant 1 tree and protect part of a tropical rainforest for every order placed on our website.

See our impact in real-time
Compare

wishlist

Blackmagic Design Streaming Decoder 4K



Blackmagic Streaming Decoder 4K is a professional streaming decoder for receiving H.264 or H.265 streams from Blackmagic Streaming Encoder, ATEM switchers, or Blackmagic cameras and converting them back to SDI and HDMI video. It includes Blackmagic Cloud streaming and a 12G-SDI reference input for connecting tally, camera control, and talkback signals to be redirected to the encoder.

Connections

  • SDI reference inputs 1
  • SDI video outputs 1
  • SDI reference outputs 1
  • SDI transmission 1.5G, 3G, 6G, 12G
  • HDMI video outputs 2.0 1
  • Direct streaming audio inputs/outputs
  • 2 integrated streaming audio channels at the output
  • 2 integrated program audio channels at the input
  • 2 integrated talkback audio channels at the input
  • SDI audio inputs 16 integrated audio channels via 12G-SDI Ref In
  • SDI audio outputs 16 integrated audio channels via 12G-SDI Ref Out
  • 2 integrated audio channels via 12G-SD Out
  • HDMI audio outputs 8 integrated audio channels via monitor out
  • Webcam outputs 1 x USB-C with maximum 2160p60
  • Ethernet BASE-T 10/100/1000 for live streaming, configuration, and software updates

Standard

  • HD video input standard
  • 720p50, 720p59.94, 720p60,
  • 1080i50, 1080i59.94, 1080i60,
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
  • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
  • 2K video standard
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI,
  • 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • Ultra HD video input standard
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K video standard
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
  • SDI compliance
  • SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B
  • Video input color space
  • Rec. 709, Rec. 2020.
  • 3G SDI
  • SMPTE Level A or B is automatically detected on the SDI input.
  • HD video standard HDMI
  • 720p50, 720p59.94, 720p60
  • 1080i50, 1080i59.94, 1080i60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • Ultra HD video standard HDMI
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p62
  • 4K HDMI video standard
  • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, and 4Kp60 DCI
  • HDMI color accuracy 4:2:2
  • HDMI color space YUV
  • Streaming video standards
  • 720p25, 720p30, 720p50, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

Stream

  • Direct streaming
  • Receives H.264 (RTMP) or H.265 (SRT) streams from Blackmagic Streaming Encoder or compatible Blackmagic cameras
  • Closed captions
  • Web Presenter 4K supports integration of CEA-608 and CEA-708 captions into the live RTMP stream
  • Timecode Supports source timecode via RTMP and SRT streams on 12G-SDI Out.

Control

  • Control panel
  • Integrated control panel with 6 buttons, rotary knob, and 2.2-inch color display.
  • Device control
  • Front panel, USB-C, or Ethernet.
  • External control
  • Supports remote camera control, color correction, tally, and talkback.
  • REST API via Ethernet for external control using HTTP when used with REST client applications.

Display

  • Integrated 2.2-inch LCD display for monitoring video, audio, and activity, as well as for using the settings menu.

Software

  • Compatible services
  • Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine.

Operating system

  • Mac 13.0 Ventura,
  • Mac 14.0 Sonoma or higher
  • Windows 10 64-bit
  • Windows 11
  • Linux
  • Chrome OS

Power

  • Power supply 1 x 100-240 V AC internal
  • DC input 1 x XLR DC +12 V, 4-pin for external sources or batteries
  • Power consumption TBA

Installation

  • Installation Width 1/3 U, height 1 U
