Mipro MI-58TD Transmitters

Mipro MI-58TD

€715.00
Tax included

5 GHz Digital Stereo Transmitter with Dante interface

Qty

In Stock

Delivery

Do You want Your order by Tuesday, 02/09/2025? Order within 7 hours and 2 minutes

Free shipping

Compare

wishlist

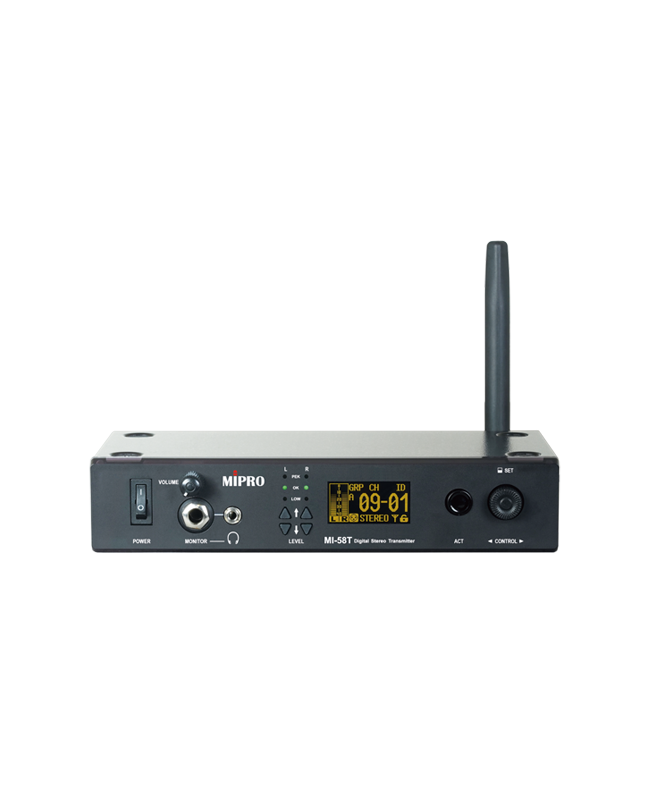

Mipro MI-58TD






  • Features Dante networking interface.
  • Ø 3.5 mm and Ø 6.3 mm dual earphone monitoring connectors and individual volume controls.
  • The front panel is equipped with a graphic OLED, a rotary knob, an ACT™ sync button, an audio input set button, and the industry’s first LED indicators for clear identification of the input volume to prevent the loudest peaks.
  • The rear panel is equipped with two XLR and Ø 6.3 mm input combo jacks, two Ø 6.3 mm phone jack loop outputs, TNC RF output connectors, and a DC 12 V power supply.
  • Delivers < 25 mW output power (the maximum value depends on the telecom regulations of different countries).
  • Presets several interference-free channels, and can ACT™ sync to the receiver.
  • With a high dynamic range stereo input combo jack, it can sustain the maximum output from any mixer.
  • The system offers Engineer Mode (ENG MODE) so the sound engineers have full control in any live performance.

Specs

  • Model MI-58TD
  • Name 5 GHz Digital Stereo Transmitter
  • Chassis EIA standard half-rack (9.5") metal case with a rotary control knob
  • Display Graphic OLED displays all functions and settings. LED indicators for proper input stereo signals volume status adjustment
  • Frequency Band ISM 5.8 GHz
  • Preset Channels Group A presets 12 selectable channels. Group B presets 24 selectable channels, where 12 selectable channels for B1 and 12 selectable channels for B2.
  • ID Codes 64 ID codes and 1 specific ID are allowed to be set for each channel to prevent the same channel being interfered in the same field.
  • Channel Setting ACT™ sync
  • Audio Sampling 48 kHz / 24-bit
  • RF Power Output < 25 mW (CE compliance) or country dependent
  • Audio Input 2 × XLR / 6.3 mm TRS combo socket
  • Audio Output 2 × 6.3 mm TRS (Loop Out)
  • Earphone Output 1 × 6.3 mm and 1 × 3.5 mm TRS with volume control
  • Networking Interface 2 × RJ-11 ACT-BUS 1 × RJ-45 DANTE interface
  • Power Supply DC 12 – 15 V, AC 100 – 240 V
  • Dimensions 210 × 44 × 91 mm (W × H × D)
  • Weight Approx. 860 g
