SWIT CIMO-200S

• Cine-style V-mount battery
• 196Wh/13.6Ah large capacity
• 200W/16A constant high load, 270W peak
• 2×D-tap output and charging input
• 1x USB-A output 5V/9V 2A 18W
• 1x USB-C output 65W and 60W input
• OLED display of remaining operating time
• Rear LED flashlight for dark environments
• Robust 1.2 m drop-proof housing
• BMS protections for multiple circuits

V-mount CINE battery

The CIMO series cine-grade V-mount batteries feature high-output, 2× D-tap, 65W USB-C, OLED display of power information, battery life inspection and 1.2 m drop-proof for professional cinematographers.

Capacity 14.4 V, 196 Wh

CIMO-200S consists of 16 ternary lithium cells, nominal voltage 14.4 V, 196 Wh, large capacity 13.6 Ah.

Ternary lithium cells provide greater energy density, achieve greater capacity with smaller dimensions and excellent performance at low temperatures, capable of providing energy in cold environments at -20 °C.

Constant 200 W / 270 W peak (high load output)

CIMO-200S delivers at least 200 W/16 A of high load even at 1% capacity (peak load up to 270 W), to drive high-power Cine cameras and on-camera devices together.

The high-load cells will also ensure battery life compared to normal load batteries in case of prolonged full load output.

100 W 6 A fast charge

CIMO-200S supports 100 W/6 A fast charging via SWIT PC-P461S / MATRIX-S8 / S-3812S battery chargers, twice the charging speed, and 6 A fast charging will not affect the life of the ternary lithium cells.

The 196 Wh battery can be charged from 0 to 80% in 1.7 hours and fully charged in 2.75 hours.

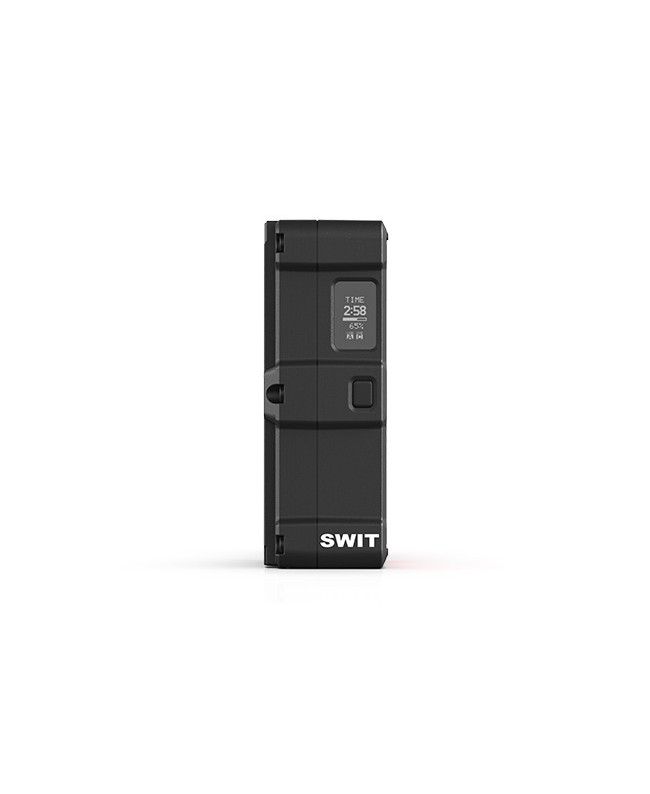

OLED Power Info / Health Level Display

The CIMO-200S battery is equipped with an OLED screen to display the battery status and power information, including power percentage, remaining operating time and long press of the power control button to display battery cycle times, health level for battery management.

USB-C 65W output

The USB-C port of CIMO-200S outputs 5V/9V/12V/15V 3A, 20V(Max) 3.25A, 65W high power for laptops and various smart devices, with universally compatible protocols BC1.2, QC2.0/3.0, FCP, SCP, PD2.0/3.0.

USB-C 60W charging input

The battery can also be charged via USB-C chargers from PD2.0/3.0 = 60W power, fully charged in 4.5 hours.

Please note that low-power USB-C chargers <60W are not able to charge this battery.

LED flashlight

You can press the Power Check button twice to turn on the LED flashlight on the back of the battery, to help you find the V-mount plate in a dark production environment. Press the Power Check button twice again to turn off the light, which will turn off automatically after 60 seconds.

1.2 meter drop proof

CIMO series batteries are designed with a double housing and can withstand drops from 1.2 meters at any angle, making them durable and reliable for filmmakers.
