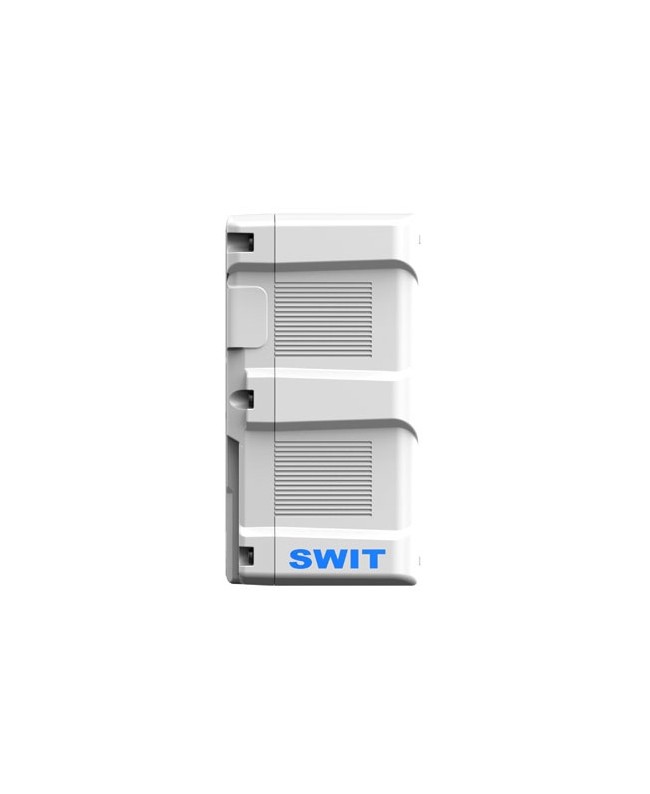

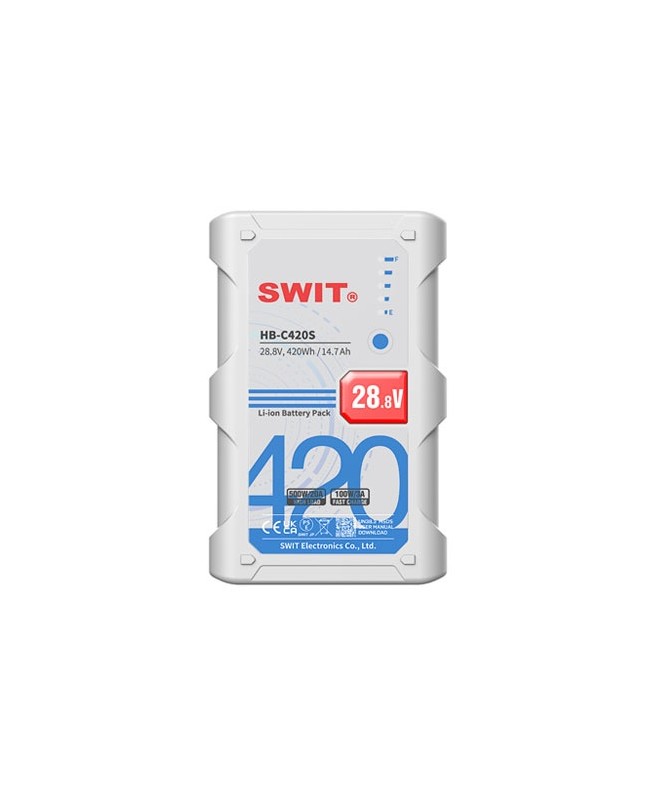

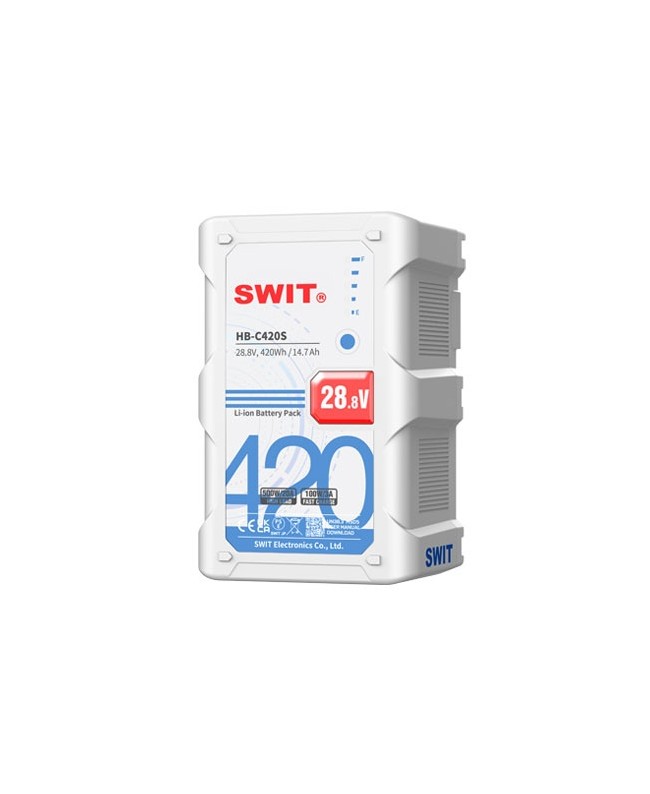

SWIT HB-C420S

V-mount battery for lights

HB-C420S offers the world's largest capacity: 420Wh of portable V-mount battery and the world's largest constant power load: 500W, to drive high-power cine lights for the longest time.

For example, 2 HB-C420S can power the Aputure LS 600C PRO at 100% power and for at least 1.2 hours.

28.8V, 420Wh, 500W load

HB-C420S is composed of 24 lithium-ion cells, 28.8 V (22-33.6 V) high voltage, 420 Wh capacity, 500 W constant load.

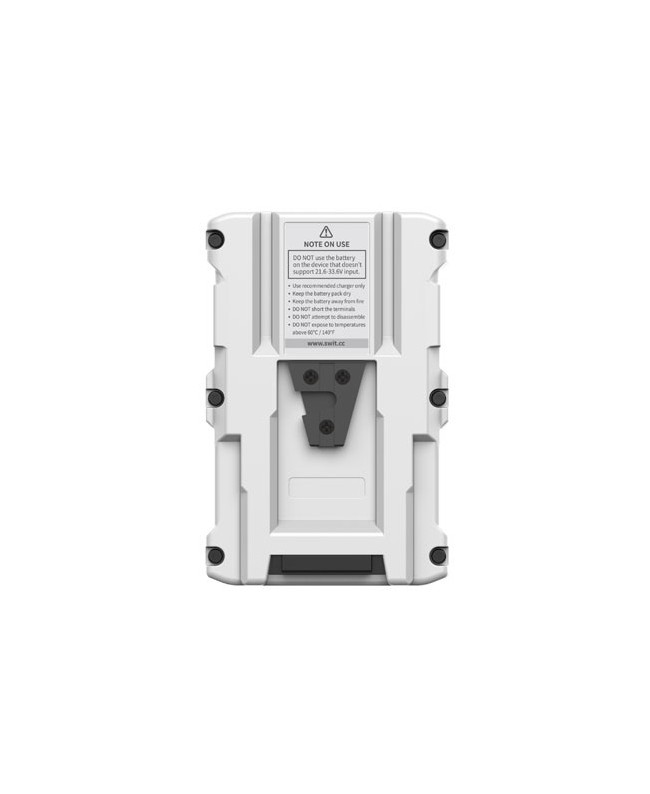

Do not use the battery on devices that do not support 22-33.6V input.

500W constant high load

HB-C420S delivers a high load of at least 500W even at 1% of capacity (peak load up to 650W), to drive high-power gears such as cinema lights.

48V 750W power solution

Using the SWIT TD-R230S dual battery stand adapter, 2 HB-C420S can supply 48V 750W to power cine lights such as Skypanel S30/60/120, Orbiter, Creamsource Vortex 4 and Vortex 8, Aputure Nova P300/P600 etc.

Power supply: Creamsource Vortex 8

The 2x HB-C420S and TD-R230S power adapter is capable of delivering 48V 750W DC to fully power the Creamsource Vortex 8 light, which requires 650W of power.

The two batteries have a total capacity of 840Wh, comparable to that of a large floor battery, but they are fixed to a light stand for easy transportation, and they power the Vortex 8 for at least 1 hour and 20 minutes.

100 W fast charge

HB-C420S supports 33.6V DC 100W fast charging with the PC-P461S battery charger, saving over 60% of the charging time.

The 420Wh battery can be charged from 0 to 80% in 3.9 hours and fully charged in 5.3 hours.

Note: HB-C420S batteries can only be charged with the PC-P461S battery charger.
