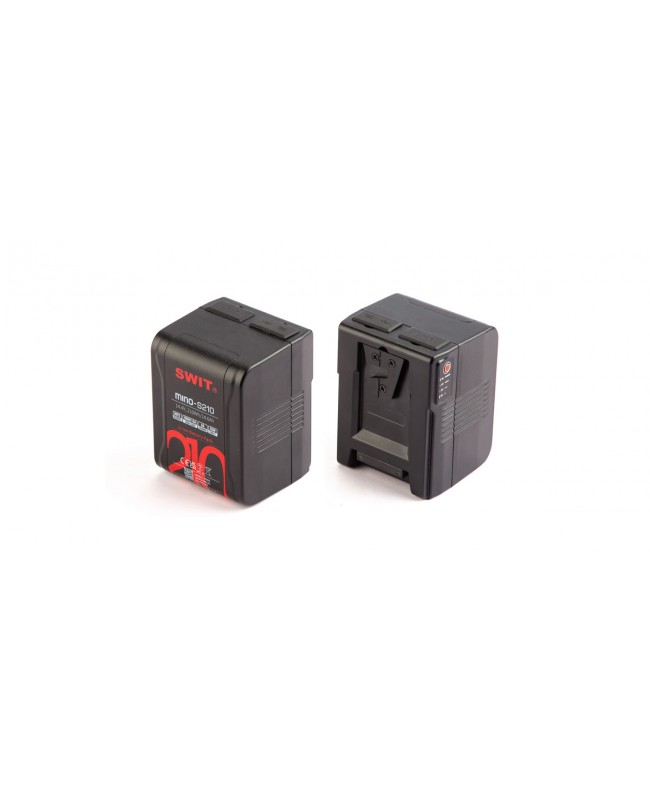

SWIT MINO-S210 Batteries

SWIT MINO-S210


€240.00
Tax included

V-Mount Li-Ion DC 14.4V 210Wh/14.6Ah USB-C D-tap battery


Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 5 hours and 41 minutes

Free shipping


wishlist

SWIT MINO-S210



MINO-S210 adopts the best GA cells and achieves maximum capacity and performance in a compact size.

At the same time, MINO-S210 can also provide a very high power output of 200 W, which is a guarantee for driving some lighting products.

MINO supports the USB-C high-speed charging protocol using internal wireless technology. MINO series batteries are not only compact and lightweight, but also offer a large capacity and support USB-C charging.

This line of batteries is equipped with advanced safety features such as overcharge protection, over-discharge protection, short-circuit protection and temperature protection, ensuring safe use in any situation.

In addition, MINO series batteries support two-way communication, allowing users to monitor battery status in real time for greater awareness of the state of charge in each mode of use.

Combined with SWIT's PB-M series batteries, the MINO series forms a complete and versatile V-mount battery system with capacities ranging from 45Wh to 210Wh, providing professional users with a comprehensive and reliable power solution. Buy yours today and experience the power of SWIT.

Technical Specifications

  • Battery connection: V-Mount
  • Nominal voltage: 14.4 V
  • Capacity: 210 Wh, 14.6 Ah

In/Out connections:

  • Mount in out: 200 W 16 A output, 16.8 V 6 A in
  • DTap: 120 W 10 A output, 16.8 V 6 A input
  • USB-A: 10 W, 5 V/2 A output
  • USB-C: maximum output 65 W, 5 V/9 V/12 V/15 V/20 V (maximum) 3.25 A
  • BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
  • Maximum 48 W input, 5 V/9 V/12 V/15 V/20 V (maximum) 2.4 A

Physical specifications

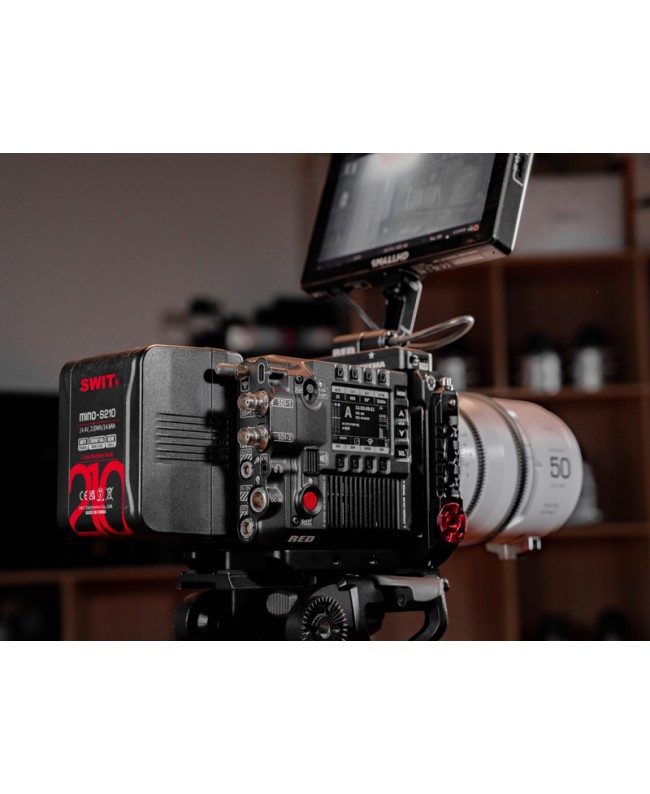

  • Dimensions: 105×79.6×73.8 mm (suitable for Raptor RED)
  • Charging temperature: 0-40°C
  • Discharging temperature: -20°C-50°C (capacity and maximum load may decrease when operating below 0°)
  • Net weight: 1.02 kg

MINO-S210
