SWIT MINO-S70 Batteries

SWIT MINO-S70


€138.00
Tax included

V-Mount Li-Ion DC 14.4V 70Wh/4.9Ah USB-C D-tap battery


Qty

In Stock

Delivery

Do You want Your order by Thursday, 28/08/2025? Order within 5 hours and 41 minutes

Free shipping


wishlist

SWIT MINO-S70

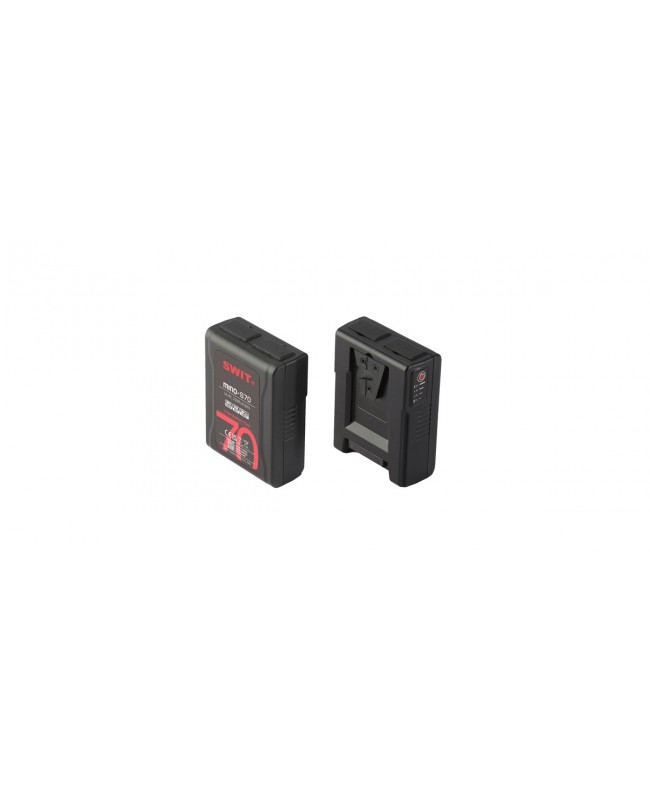

MINO-S70 is an ultra-compact V-mount battery, which is almost the same size as 50Wh batteries on the market, but with 40% more capacity.

It is very suitable as a main camera battery for light travel shooting or power support for any low-power equipment on set (including monitors, recorders, image transmission and other professional equipment or as a power bank to power cell phones, tablets or laptops).

It complies with the battery size restrictions of RED V-Raptor.

Meanwhile, the MINO-S70's flat design and 419 g (0.9 lb) weight make it ideal for gimbal installation.

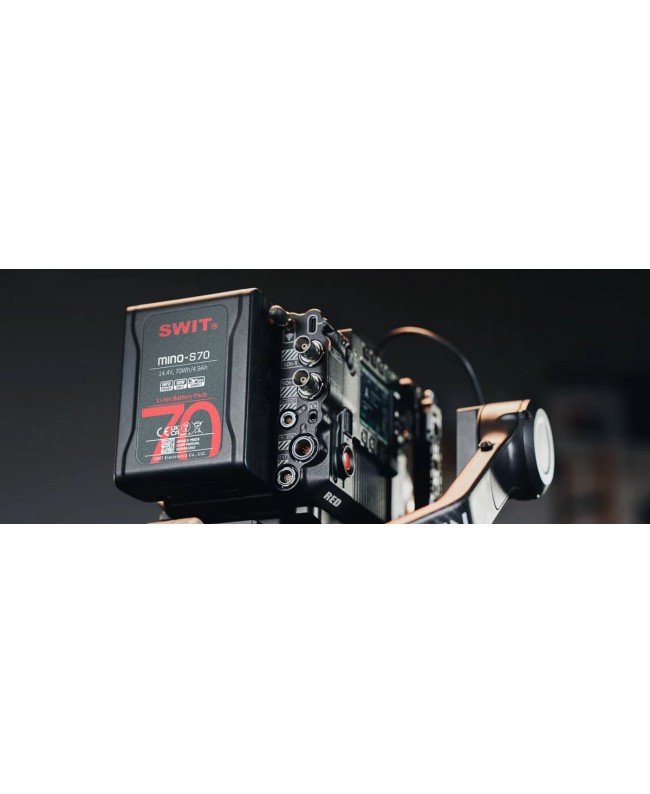

MINO-S70 allows you to shoot flexibly from any angle, even upside down RED V-Raptor with DJI Ronin RS3.

  • Two new options: 70Wh and 210Wh
  • Ultra-small size, suitable for RED V-RAPTOR cameras
  • Digital camera power display
  • USB-C input and output (MINO-S70 35 W IN/65 W OUT, MINO-S210 48 W IN/65 W OUT)
  • MINO-S210 has an output of 200 W, which can provide power for the lights
  • Battery connection: V-Mount
  • Nominal voltage: 14.4 V
  • Capacity: 70 Wh, 4.9 Ah
  • Power supply IN and OUT:
  • V-Mount connector: 100 W 8 A output, 16.8 V 3 A input
  • D-plug: 100 W 8 A output, 16.8 V 3 A input
  • USB-A: 10 W, 5 V/2 A output
  • USB-C: maximum output 65 W, 5 V/9 V/12 V/15 V/20 V (maximum) 3.25 A
  • BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP
  • Maximum input 35 W, 5 V/9 V/12 V/15 V/20 V (maximum) 1.75 A
  • Dimensions: 105×79.6×37 mm (suitable for RED Raptor)
  • Charging temperature: 0-40°C
  • Discharging temperature: -20°C-50°C (the capacity and maximum charge may decrease when operating below 0°)
  • Net weight: 419 g
  • Package weight: 0.45 kg

MINO-S70

Specific References
