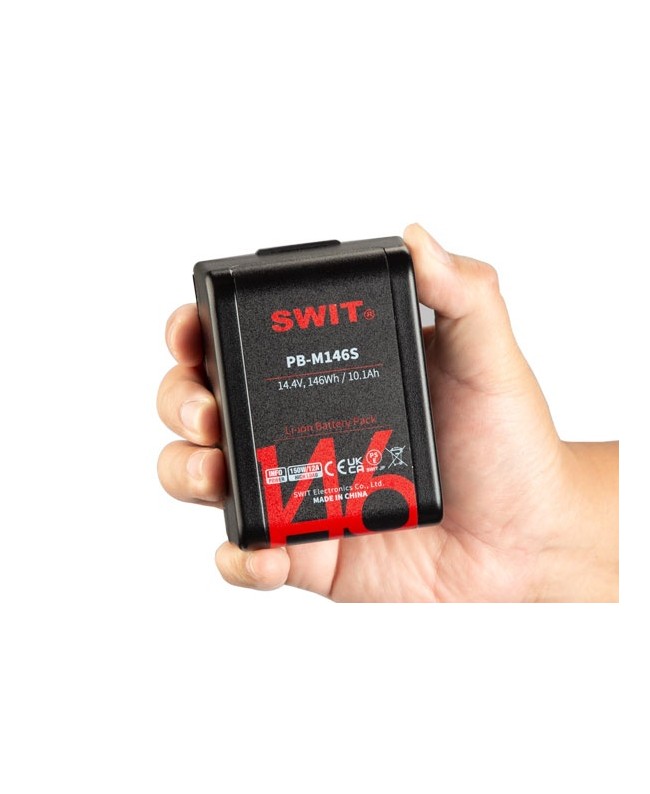

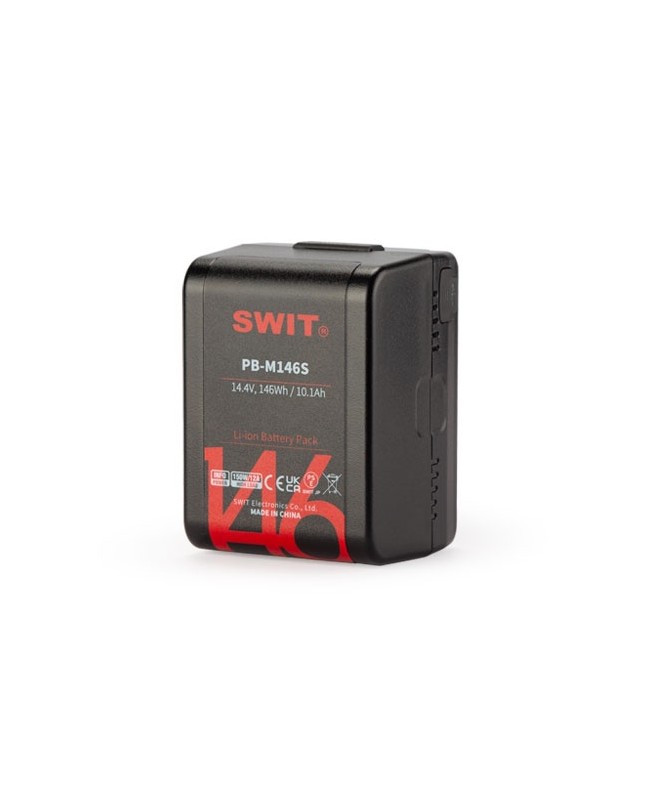

SWIT PB-M146S

Pocket battery for V-mount

As a new member of the PB-M series of pocket batteries, the PB-M146S model offers a higher capacity of 146 Wh for longer operating times while maintaining compact dimensions for convenient transport.

146 Wh, D-Tap and USB

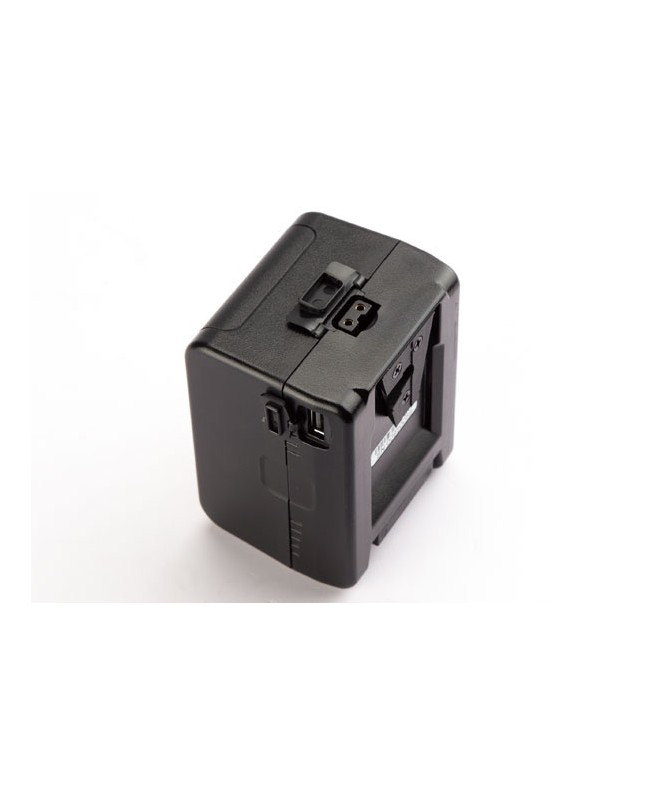

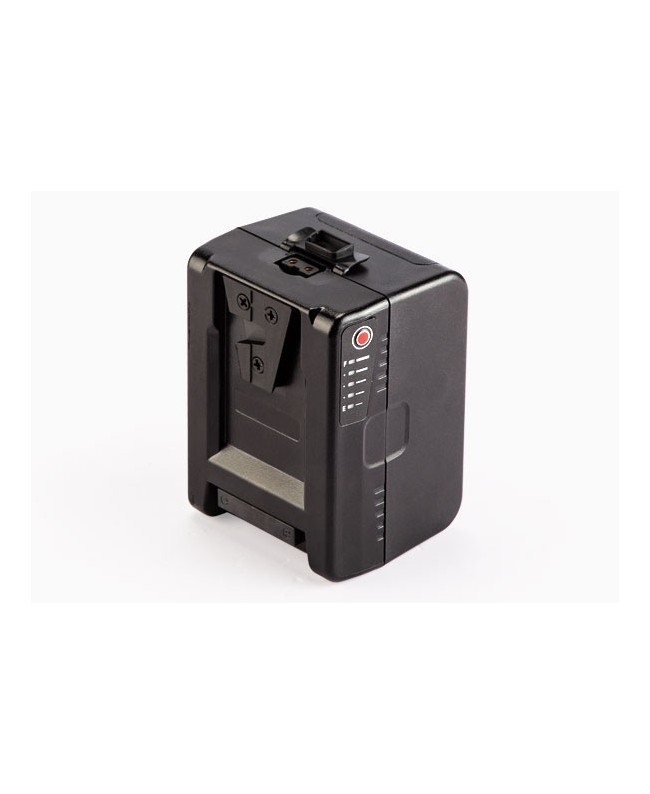

The PB-M146S has a nominal voltage of 14.4 V, a capacity of 146 Wh, a 5-step LED operation indicator, an integrated D-Tap DC output and charging input, and a 5 V/2 A USB-A output.

The continuous load is 150 W, 12 A.

Hot-swap adapter

With the KA-M20S hot-swap adapter, 2x PB-M146S can be swapped out on cameras during operation to achieve an uninterrupted 1:1 power supply equivalent to a standard size V-mount battery.

Fast charging with 50 W/3 A

The PB-M146S can be charged with all standard V-mount chargers and D-chargers.

We recommend the following chargers:

• S-3822S, portable charger with 2 simultaneous channels
• Charges 2x PB-M146S: approx. 3 hours and 45 minutes
• PC-U130B2, ultra-portable charger with two D sockets
• Charges 1x PB-M146S: approx. 3 hours and 45 minutes
• Charges 2x PB-M146S: approx. 6 hours

Internal wireless technology

The PB-M146S is equipped with innovative internal “wire-free” technology. All cells, the D-connector, the USB connector, and the operating indicators are soldered directly onto the circuit board without connecting cables to effectively reduce internal resistance and make the circuit stable, safe, and reliable.
