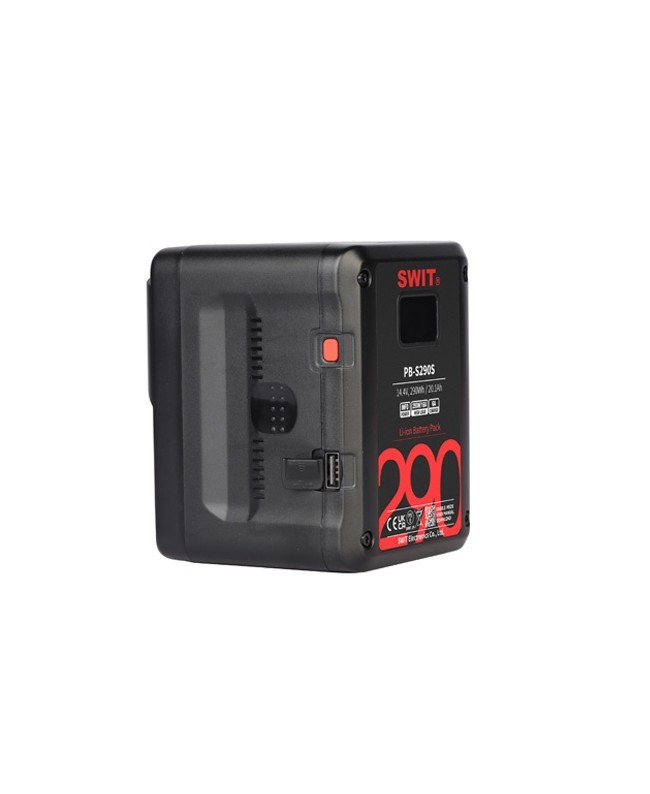

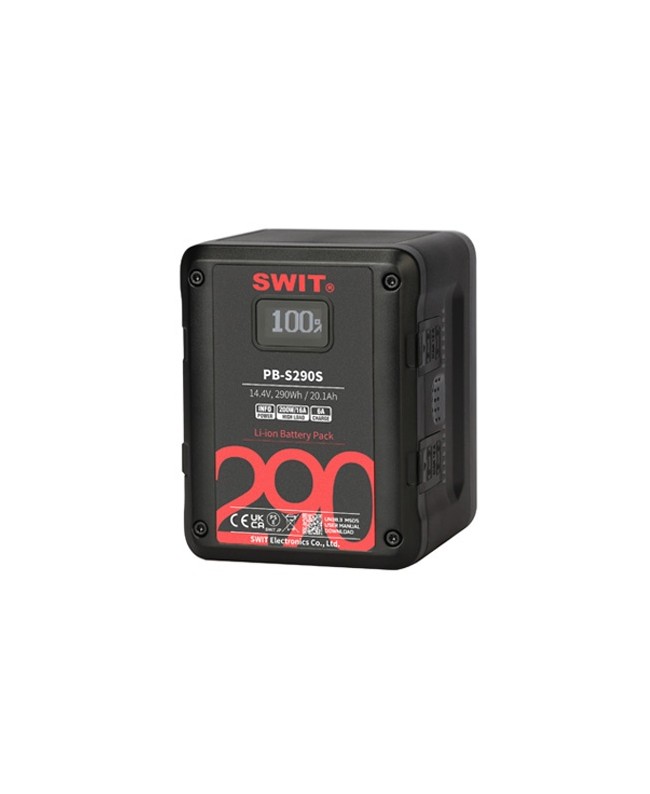

SWIT PB-S290S

Square design for film cameras

The PB-S series batteries are compact, shorter than conventional batteries with V/Gold connectors, and fit perfectly into most film cameras.

Capacity 290 Wh / 20.1 Ah

Consisting of 24 high-quality 18650 battery cells, the nominal voltage is 14.4 V and reaches a capacity of 290 Wh / 20.1 Ah.

It can be used for about 10 hours for normal ENG cameras and about 3.5 hours for ARRI ALEXA.

High load for cameras

Minimum 200 W / 16 A load

The PB-S290S delivers a high load of at least 200 W/16 A even at 1% power to operate cameras and powerful on-camera devices simultaneously.

The heavy-duty cells ensure a longer service life than batteries with normal loads, even under prolonged full load.

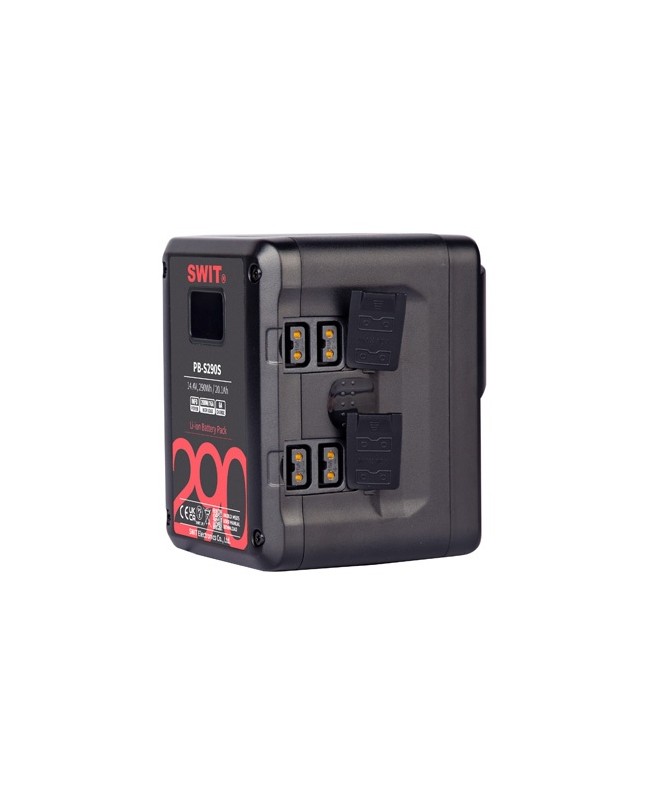

4× D-Tap, 1× USB

The PB-S290S offers 4 D-Tap output sockets with a load of 10 A/120 W and 1 USB socket with 5 V/2 A for powering additional on-camera devices.

Fast charging with 100 W 6 A

Use of the SWIT 6A fast charger

The PB-S290S supports fast charging with 6 A via the SWIT PC-P461S or S-3812S fast charger, saving more than 50% of the charging time.

The 290 Wh PB-S290S battery can be charged from 0 to 80% in 2.5 hours and fully charged in 3.8 hours.
