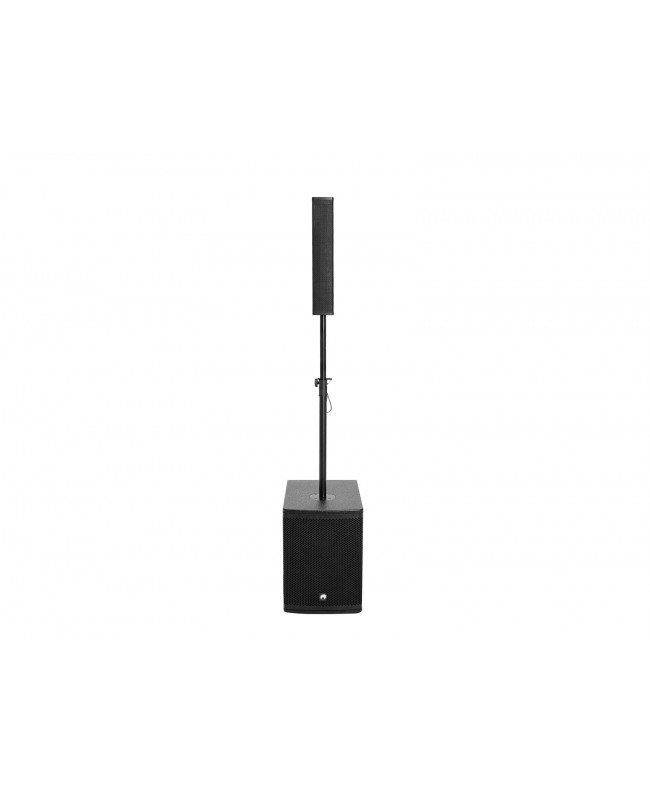

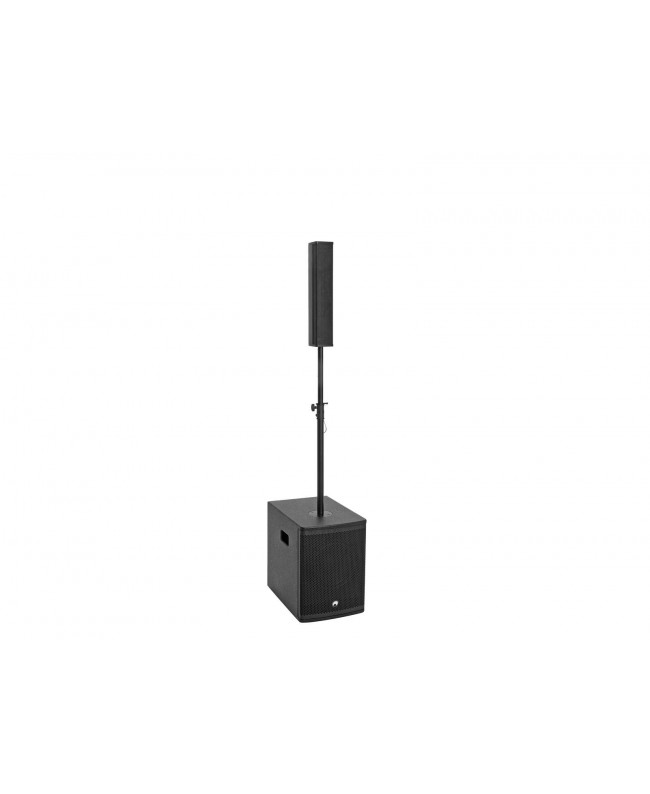

Omnitronic ROD-1043

Scope of delivery

• 1 x bass
• 1 x top
• 1 x distance tube
• 1 x power cord
• 1 x user manual
• 1 x speaker cable
• 2 x tie strap
• 1 x declaration of conformity

• Output power: 350 W RMS system
• Frequency range: 42 - 20000 Hz system
• Max. SPL: 125 dB system
• DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation
• Weight: 19.20 kg
• Frequency range: 42 - 150 Hz

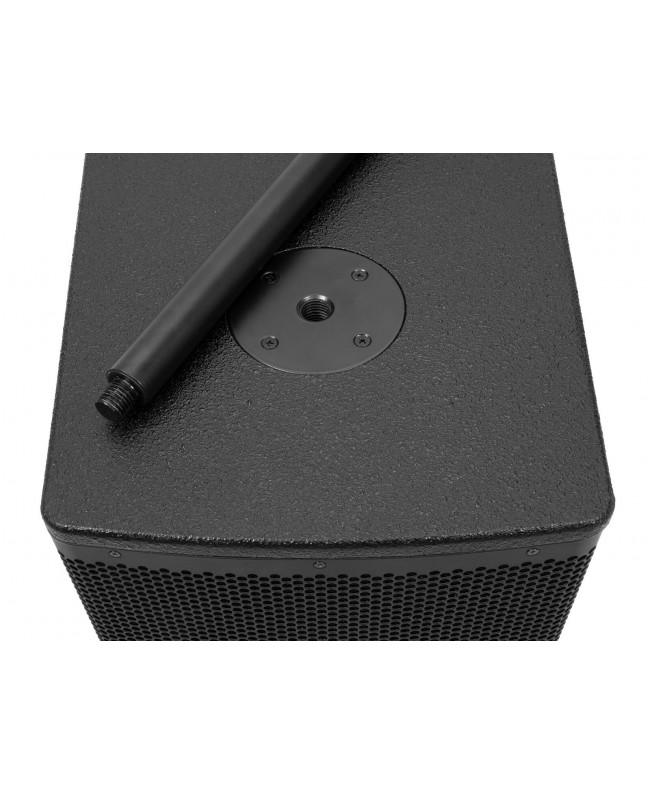

• Attachment system: M20 thread
• Speaker: 1 x woofer 10 with ferrit magnet, Basket material: steel, Voice coil lows 2, Conematerial: cardboard/paper
• Type of speaker: Subwoofer
• Type of construction: Vented
• Recessed carrying handle: 2 pc/pcs
• Transport aid: 4 x plastic feet
• Material: MDF (medium density fiberboard), 16 mm
• Color: Black, textured coating
• Dimensions: Width: 32 cm, Depth: 46.5 cm, Height: 44.5 cm
• Weight: 16.5 kg
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: Max. 250 W
• Protection class: Protection class I
• Output power: 1 x 200 W RMS LF, 1 x 150 W RMS (4 ohms) HF
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 2.5 A fuse serviceable
• DSP: Digital signal processor
• DSP presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
• Control: Bluetooth
• Bluetooth: Version: 5.3 with stereo link (TWS)
• Bluetooth device name: ROD-1043
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Circuitry: Class D
• Control elements: Level control, power switch, Input sensitivity switch
• Controls: Short-circuit; DC voltage; limiter; overload
• Status LED: Signal, limit, DSP presets, pairing, link

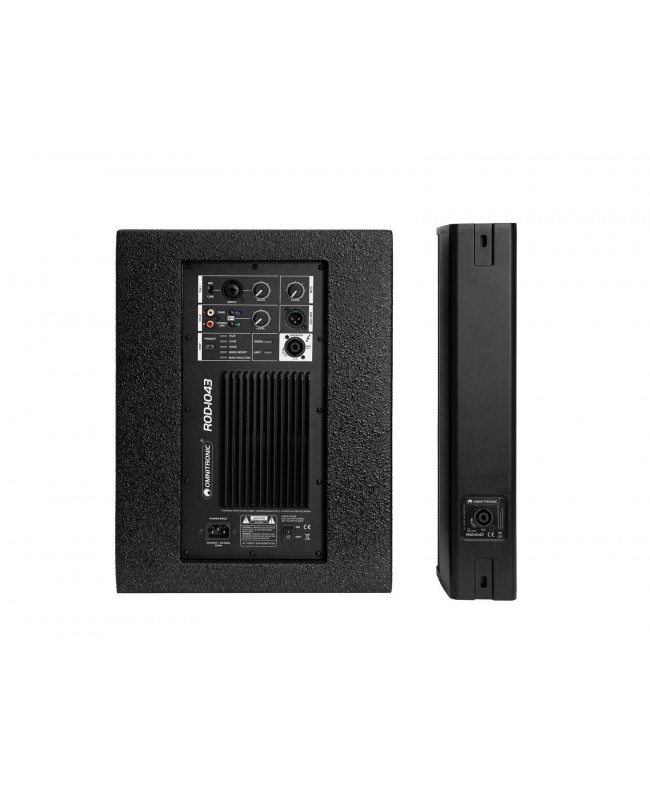

• Connections: Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x stereo RCA, Output: line via 1 x 3-pin XLR (M) mounting version, Output: top via 1 x speaker built-in socket (F)
• Input channels: 1 x stereo via RCA or Bluetooth, channel control via rotary dial, 1 x mono with mic-line switch via Combination socket (XLR/jack), channel control via rotary dial
• Crossover frequency: 150 Hz
• Power: Program: 160W, Rated: 80W AES
• Frequency range: 150 - 20000 Hz
• Sensitivity: 90 dB (1W/1m)
• Dispersion angle: 100° x 20°
• Impedance: 1 x 4 ohms top
• Attachment system: Flange: Ø 25mm

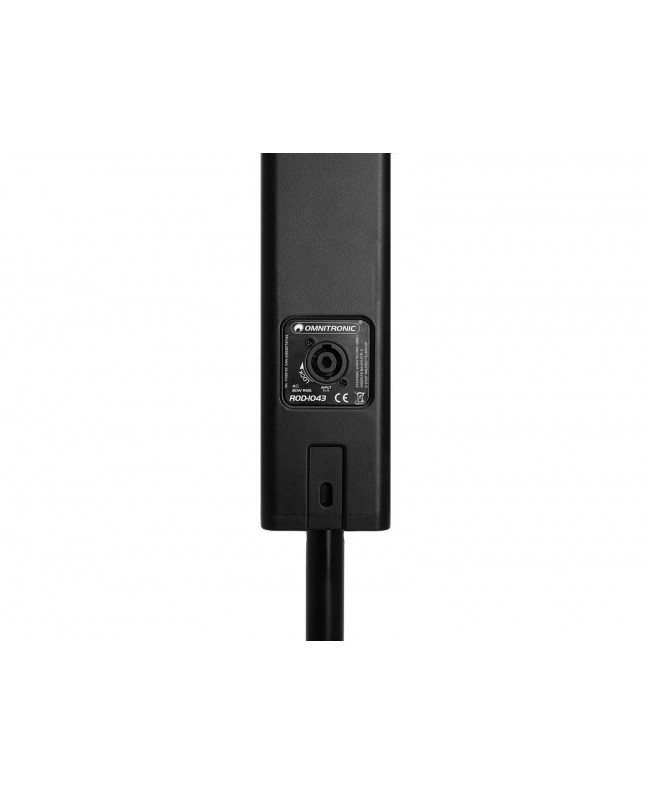

• Connections: Input: top via 1 x speaker built-in socket (F)
• Speaker: 4 x full range loudspeaker 3 with neodymium magnet, Basket material: steel, Voice coil full range loudspeaker 0.75, Conematerial: cardboard/paper
• Type of speaker: Column speaker
• Type of construction: Closed Box
• Material: Plastic hard
• Color: Black
• Dimensions: Width: 8.5 cm, Depth: 10.5 cm, Height: 45 cm
• Weight: 1.43 kg
• Height: Maximum: 95 cm, Minimum: 59 cm, Adjustable in 4 steps with locking pin
• Attachment system: M20 thread, Pivot: Ø 25mm
• Type (general stands): Speaker stand/manual
• Material: Steel, painted
• Weight: 0.74 kg
• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: 1.80 m
• Cable construction: 2 x 0.75 mm² speaker cable
• Cable length: 2 m
