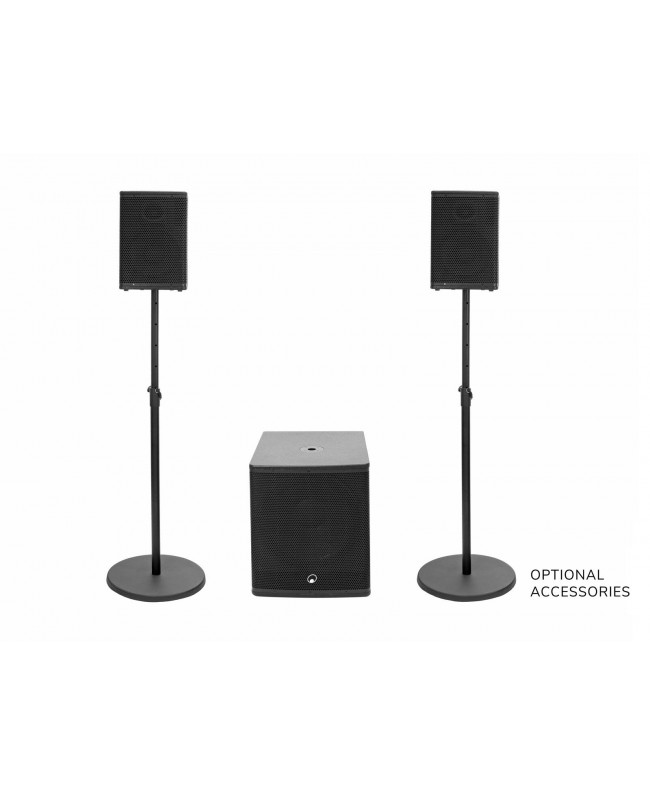

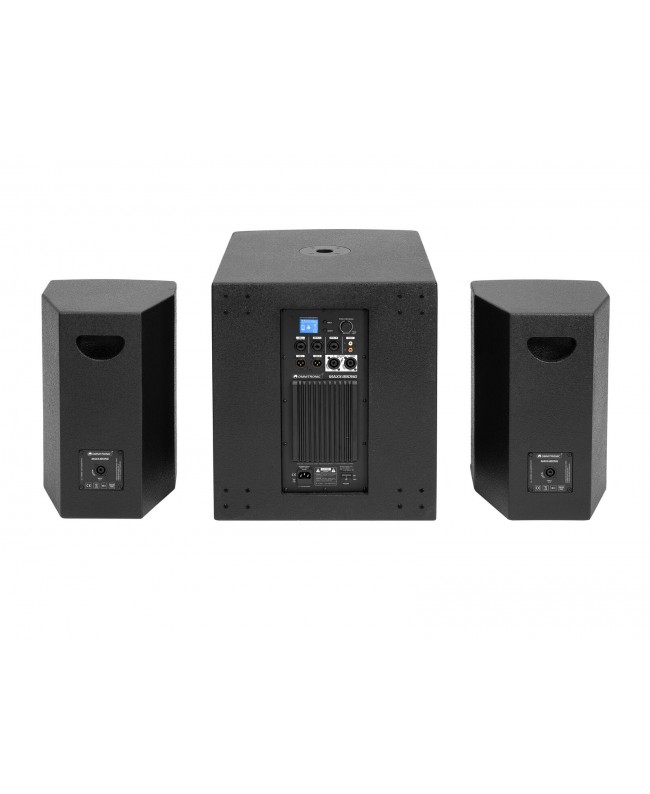

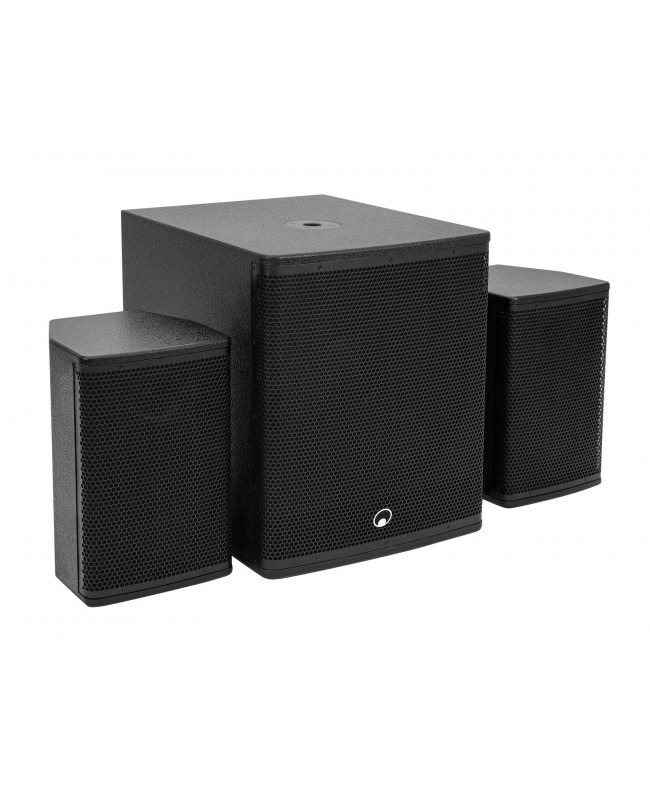

Omnitronic MAXX-1810NG

Scope of delivery

1 x OMNITRONIC MAXX-1810NG Active Subwoofer 18

• 1 x bass
• 1 x power cord

2 x OMNITRONIC MAXX-1810NG 2-way Top 10

• 1 x top
• 1 x speaker cable

• Output power: 800 W RMS system
• Frequency range: 38 - 20000 Hz system
• Max. SPL: 134 dB system
• Weight: 56.20 kg
• Frequency range: 38 - 150 Hz
• Max. SPL: 131 dB
• DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation; 3-band EQ
• Attachment system: M20 thread
• Speaker: 1 x woofer 18 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 3
• Type of speaker: Subwoofer
• Type of construction: Vented
• Carrying handle: 2 pc/pcs
• Transport aid: Wheels optional, 4 x rubber feet
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 51 cm, Depth: 60 cm, Height: 61.5 cm
• Weight: 35.85 kg
• Power supply: 230 V AC, 50 Hz
• Power consumption: 400 W
• IP classification: IP20
• Protection class: Protection class I
• Output power: 500 W RMS (4 ohms) LF, 2 x 150 W RMS (8 ohms) HF, 1 x 300 W RMS (4 ohms) HF
• Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug included
• Device fuse: 5 x 20 mm, T 3.15 A fuse replaceable
• DSP: Digital signal processor
• DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
• Cooling: 1 x low-noise cooling fan
• Filter: Low cut: 80 Hz
• Control: Bluetooth
• Bluetooth device name: MAXX-1810NG
• Range: Bluetooth: range up to 10m in buildings
• Carrier frequency: 2.4 GHz
• Circuitry: Class D
• Display type: Multicolor LCD display
• Control elements: Power switch, encoder, menu, BACK button
• Controls: Overheat; short-circuit; DC voltage; limiter
• Status LED: Limit

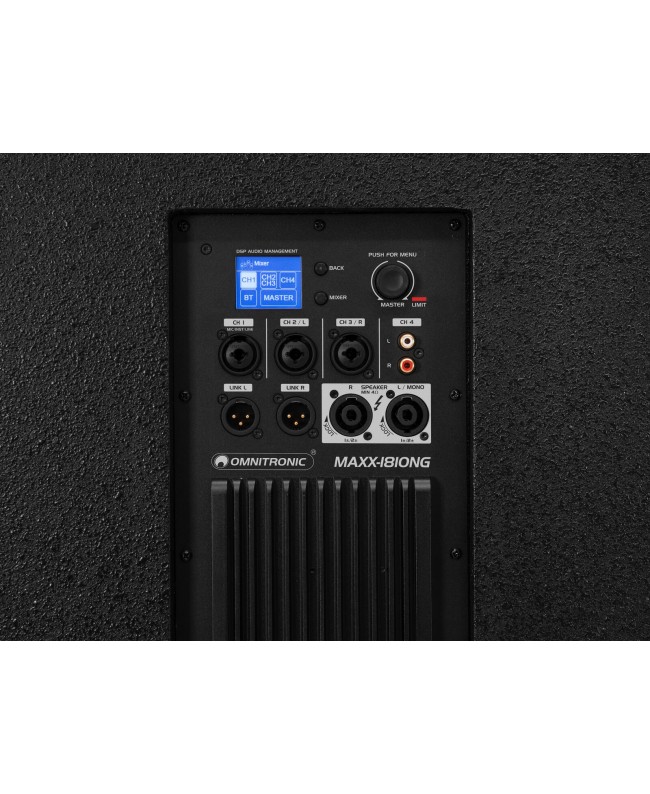

• Connections: Input: mic/line via 1 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version), Input: line via 1 x RCA (F) mounting version, Output: line via 2 x 3-pin XLR (M) mounting version, Output: speaker via 2 x speaker built-in socket (F)
• Input channels: 3 x mono via XLR or jack, channel control via rotary dial, 1 x stereo via RCA, channel control via rotary dial
• Crossover frequency: 90 Hz
• Cable construction: 3 x 0.75 mm² H05VV-F
• Cable length: 1.8 m
• Weight: 0.13 kg
• Power: Program: 300W, Rated: 150W RMS
• Frequency range: 85 - 20000 Hz
• Sensitivity: 94 dB (1W/1m)
• Max. SPL: 119 dB
• Dispersion angle: 90° x 70°
• Impedance: 8 ohms
• Attachment system: Flange: Ø 35mm
• Connections: Speaker via 1 x speaker built-in socket (F)
• Crossover frequency: 2800 Hz
• Speaker: 1 x woofer 10 with ferrit magnet, Basket material: steel, Conematerial: cardboard/paper, Voice coil lows 2, 1 x compression tweeter highs 1, Voice coil compression tweeter highs 1
• Type of speaker: Compact cabinet speaker
• Type of construction: Vented
• Carrying handle: 1 pc/pcs
• Transport aid: 4 x rubber feet
• Material: MDF (medium density fiberboard), 15 mm
• Color: Black, textured coating, painted
• Dimensions: Width: 29 cm, Depth: 29 cm, Height: 46.3 cm
• Weight: 10.7 kg
• Cable construction: 1 x speaker cable
• Cable length: 5 m
