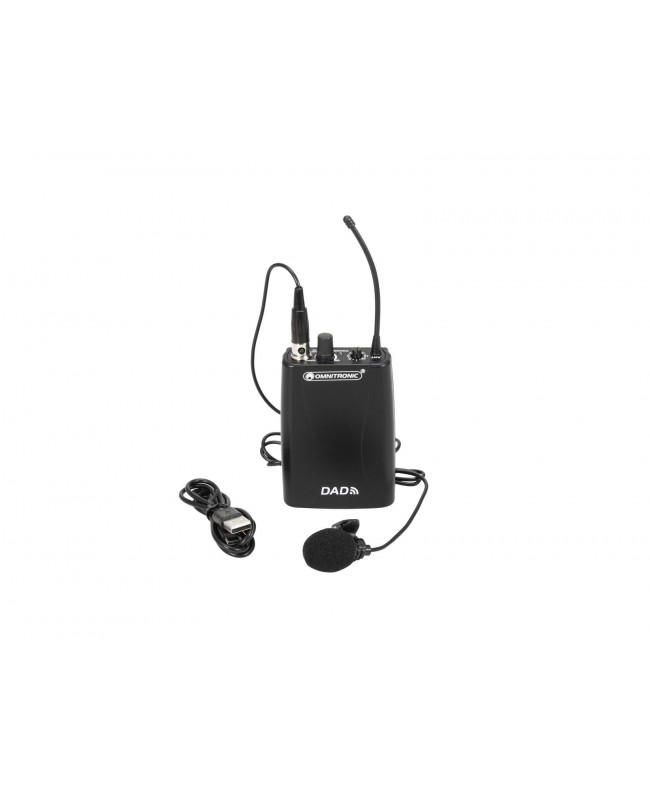

Omnitronic DAD Bodypack Transmitter

Scope of delivery

• 1 x transmitter
• 1 x microphone
• 1 x USB cable
• 1 x user manual
• 1 x declaration of conformity

• Type: Pocket transmitter
• Power supply: 3V DC, Or, 5V DC
• Power connection: Battery/battery pack, Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided)
• Battery: 2 x Mignon (AA) (not included)
• Frequency range: 50 - 18000 Hz
• Range: Range up to 30m with line-of-sight
• Frequency band: UHF 823 - 832 MHz; UHF 863 - 865 MHz
• Frequency stability: +- 0.01 %
• RF power output: 10 mW
• Frequency selection: 16 switchable frequencies
• Control elements: Level control, frequency selector switch
• Connections: Input: microphone via 1 x 3-pin XLR (M) mounting version, Input: line via 1 x 3.5 mm jack (stereo) mounting version
• Switch: On/off switch
• Material: Plastic
• Color: Black
• Dimensions: Width: 6.7 cm, Depth: 2.3 cm, Height: 11 cm
• Weight: 0.12 kg
• Type: Lavalier microphone
• Power supply: 1.5-10V DC
• Power connection: Mains input via Mini XLR (F) 3-pin
• Cable length: 1 m
• Capsule type: Condenser
• Polar pattern: Cardioid
• Sensitivity: -37 dB
• Material: Metal
• Color: Black
• Weight: 0.018 kg
• Cable construction: Power cable
• Cable length: 0.8 m
• Plug A: 1 x USB, type A
• Plug B: 1 x USB C (M)
