SEETEC ATEM173S-CO Signal management monitor

SEETEC ATEM173S-CO

€1,191.00
Tax included

Monitor 17,3“ IPS, 1920x1080, 4K HDMI 4x 3G SDI in e output

Out of Stock

Free shipping

Compare

wishlist

SEETEC ATEM173S-CO

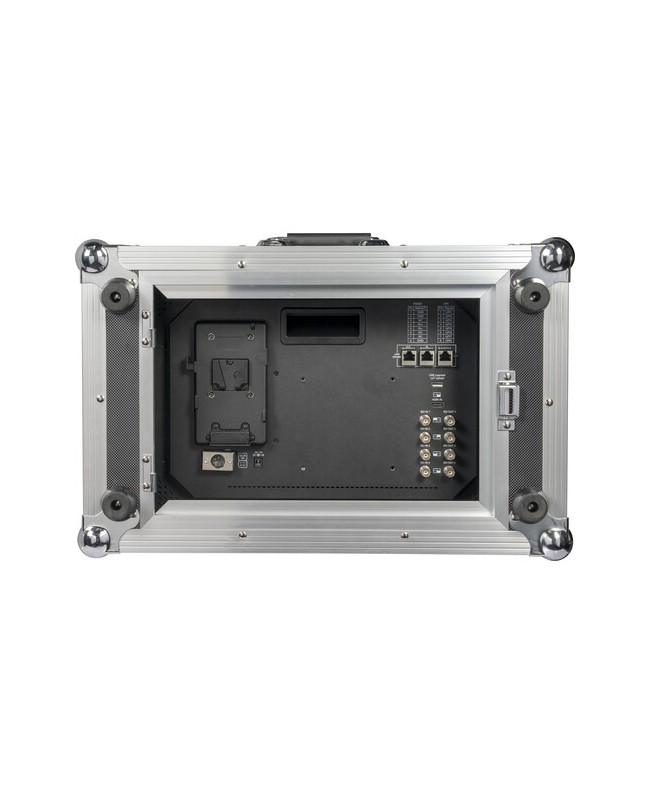

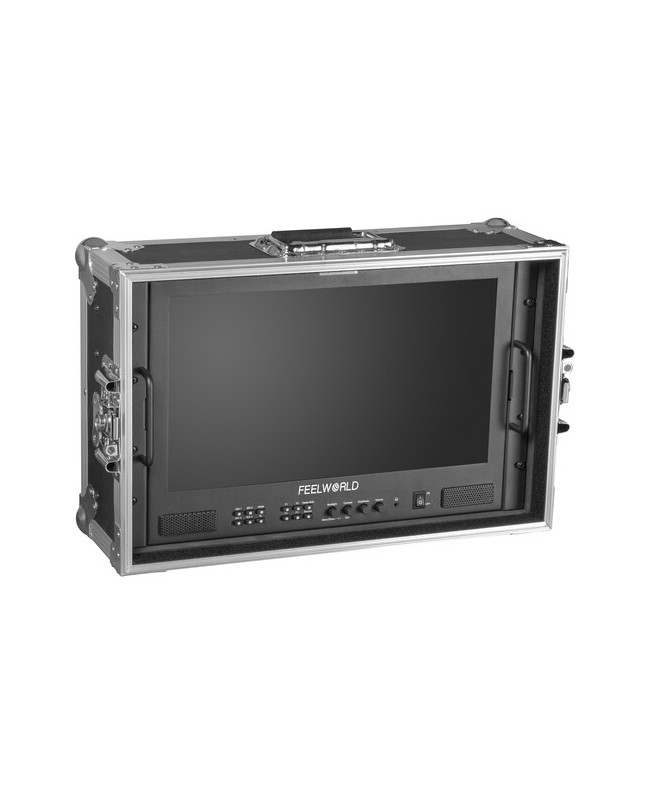

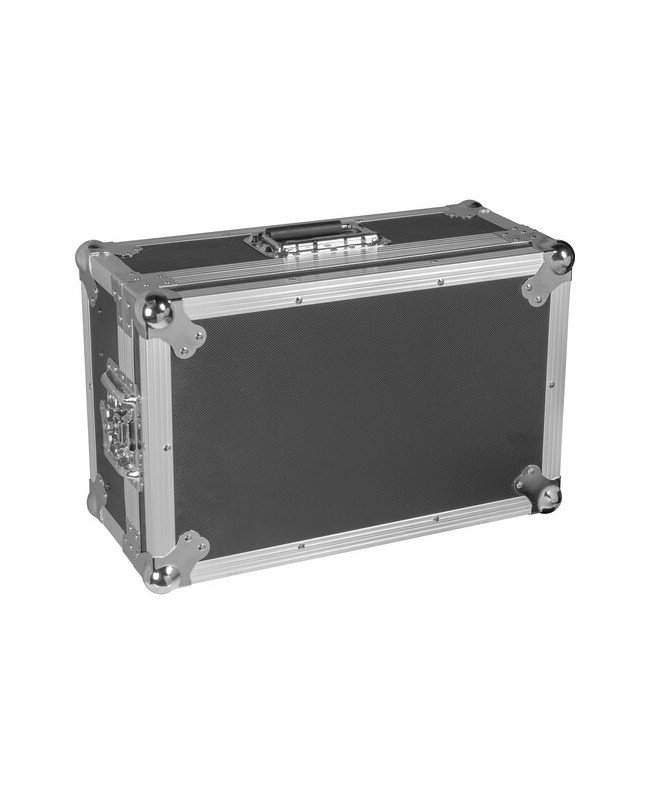

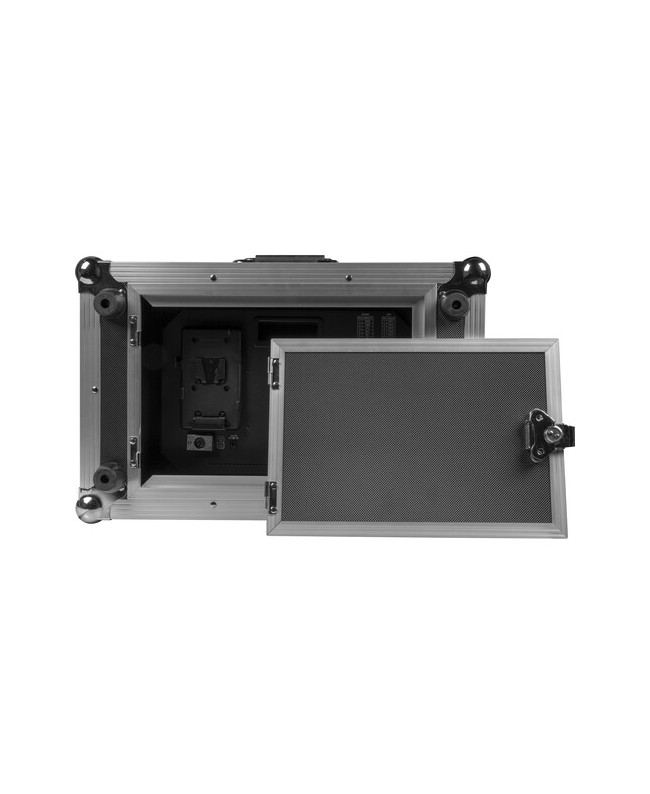

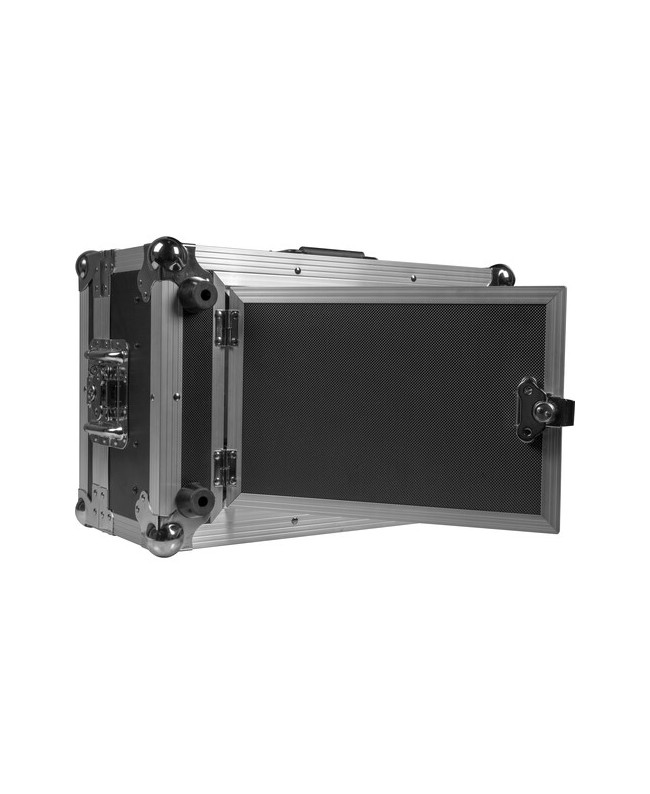

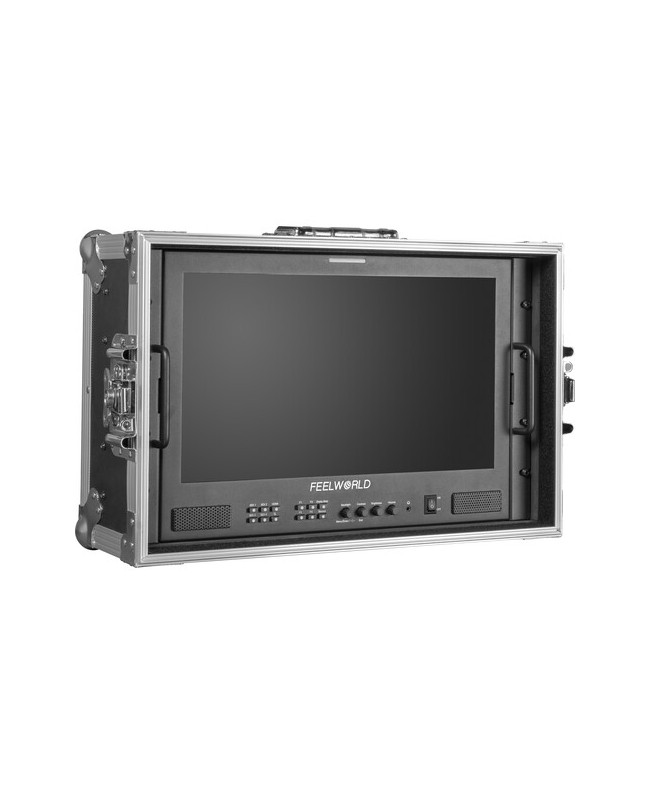

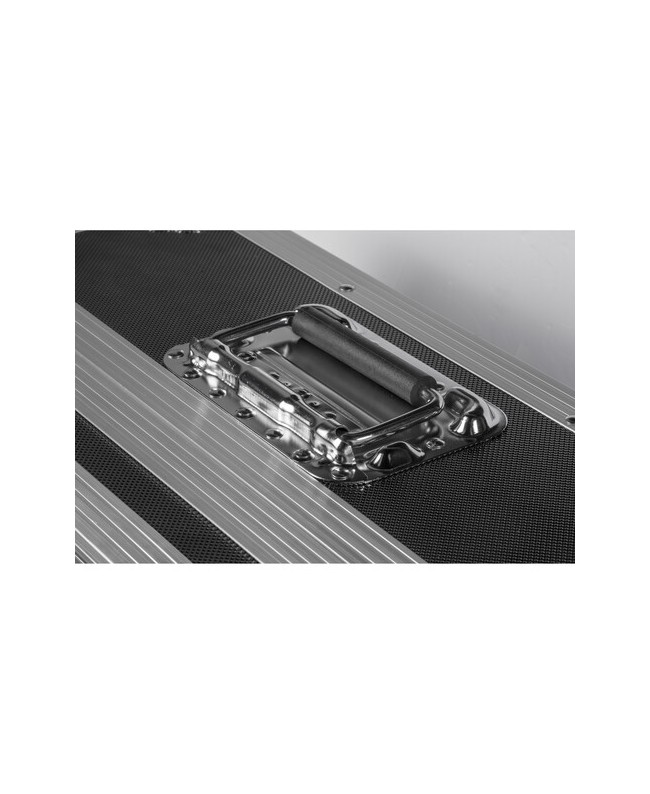

The 17.3-inch Live Stream HD Broadcast Director monitor from FeelWorld features a quad-split display with a maximum resolution of 1920 x 1080 and a brightness of 300 cd/m 2. At the rear, there are four 3G-SDI inputs supporting up to 2K input signals, four 3G-SDI outputs, and one HDMI output. It also supports quad-view, dual-view, and PiP display layouts, allowing you to view the inputs simultaneously. The monitor is installed in an aluminum case with a back cover for access to the ports and battery, and the front cover is attached to protect the monitor for transport. It can be carried by a handle on the top.

Professional monitoring tools such as focus peaking, marker, monochrome, R/G/B only, pixel-to-pixel mapping, and image inversion are built in to analyze the video and ensure a correct image. A V-mount power plate is built into the back for on-site power installation when you are away from a power source. A gold-plated mounting plate is also available separately. A VESA mounting diagram is provided on the rear for alternative mounting options.

Image features

  • Quad split display (1P, 2P LR, 2P TB, 2P PIP, 4P)
  • Focus assistant with peak hold
  • False color
  • Anamorphic (1.33x, 1.5x, 1.8x, 2.0x)
  • Display rotation (0, 90, 180, 270°, H/V mirror)
  • Marker field (red, green, blue, mono)
  • Lock image
  • Enlarge
  • Pixel by pixel
  • Center display
  • Screen display (80, 85, 90, 93, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
  • Line color (red, green, blue, white)

Included

  • FeelWorld 17.3” Live Stream HD Broadcast Director Monitor (handheld case)
  • Power adapter
  • Battery plate with V-mount
  • Mini HDMI cable
  • SDI cable
  • Solar cap
  • Carrying bag
  • 1-year limited warranty

Screen

  • Panel type: IPS-type LCD
  • Display size: 17.3"/43.9 cm
  • Resolution: 1920 x 1080
  • Aspect ratio: 16:9

Viewing angle

  • Horizontal: 178° (89/89)
  • Vertical: 178° (89/89)
  • Touchscreen: No
  • Maximum brightness: 300 cd/m²
  • Contrast ratio 700:1
  • Dot pitch: 0.1989 x 0.1989 mm
  • HDR compatibility: Yes
  • Pixels per inch (ppi): 127 ppi
  • Image Control: Anamorphic De-squeeze, Blue Only, Control Area, False Colors, Focus Assist, Focus Peaking, Green Only, Image Rotation, Red Only, Screen Indicators, Split Screen Halves, Split Screen Quarters

Video I/O

  • 4 BNC Inputs (3G-SDI)
  • 4 BNC Outputs (3G-SDI)
  • 1 HDMI Type A output
  • Audio: 1 headphone output 3.5 mm/1/8"
  • Built-in speaker: None

Power inputs/outputs

  • 1 x coaxial power input (12 VDC)
  • 1 x 4-pin XLR input

Other inputs/outputs

  • 1 x GPI input (RJ45) 1 x GPI output (RJ45)
  • 1 x RS-485 input (RJ45)
  • 1 x USB 2.0 input (USB Type A)
  • Media/memory card slot: None
  • Wi-Fi: None

Format support

Video format

  • SDI (8 bits)
  • DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
  • DCI 2Ki: 60/59.94/50
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98
  • 1080i : 60/59.94/50
  • 1080PsF: 24/23.98
  • 720p: 60/59.94/50/30/29.97/25/24/23.98
  • 576p
  • 480p
  • HDMI
  • 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080p
  • : 60/59.94/50
  • 720p: 60/59.94/50/30/29.97/25/24/23.98
  • 576p
  • 576i
  • 480p
  • 480i
  • Gamma Curve: Rec709

Power

  • Input DC Power: 12 VDC
  • Battery Type: 1 x V-mount (interchangeable mounting)
  • Power Consumption: 22 W

Mounting

  • Mounting Hole Pattern: 100 x 100 mm, 75 x 75 mm

Environmental Conditions

  • Operating Temperature: 14 to 122 °F / -10 to 50 °C
  • Storage temperature: -4 to 140 °F / -20 to 60 °C

General

  • Dimensions: 42.5 x 29.6 x 2.3 cm (without enclosure)
  • Weight: 2.84 kg (without enclosure)

ATEM173S-CO
