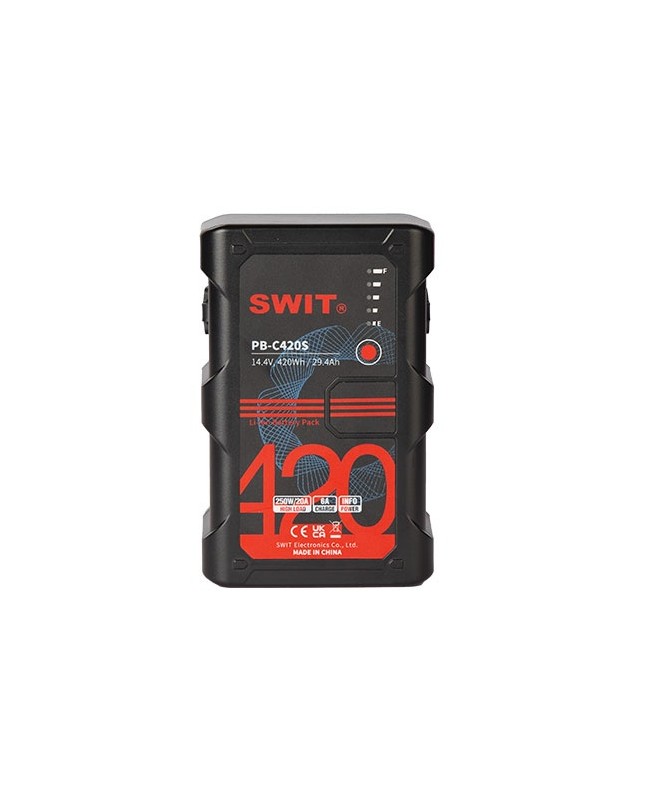

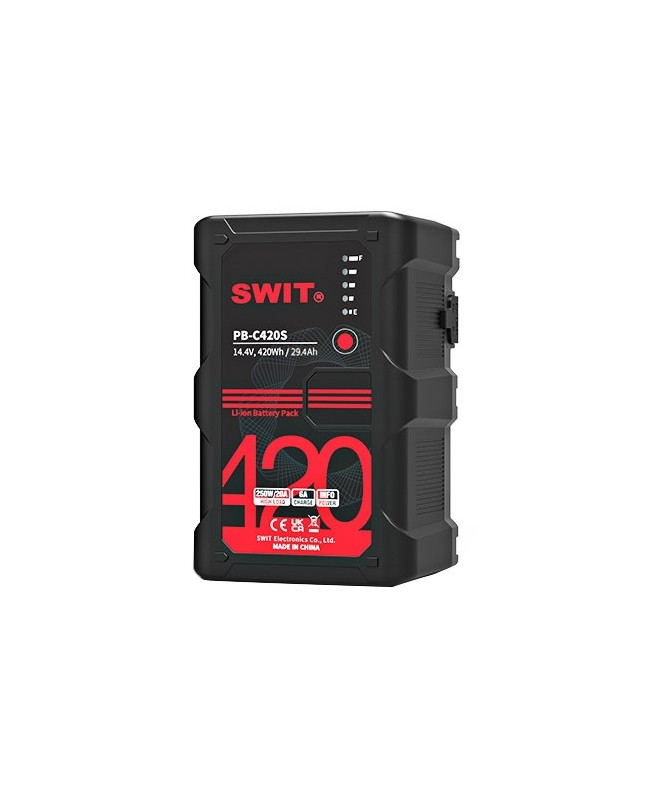

SWIT PB-C420S

PB-C420S achieves the world's largest capacity: 420 Wh portable battery with V-mount connector, long-term power supply for cameras, monitors, lights, and many energy-hungry devices in the television and film industry.

14.4 V, 420 Wh, 2 D-sockets

The PB-C420S consists of 24 lithium-ion cells, rated voltage 14.4 V, 420 Wh, 29.4 Ah with high capacity, and has 2 D-Tap connectors on the left and right sides for devices with top cameras.

Constant high load of 250 W

The PB-C420S delivers a high load of at least 250 W/20 A (peak load up to 305 W) even at 1% capacity to power high-performance cine cameras and integrated devices simultaneously. The high-capacity wing cells ensure a longer battery life compared to normal-charge batteries, even during prolonged operation under full load. Overcurrent protection: 24 A.

Fast charging with 100 W/6 A

The PB-C420S supports fast charging with 100 W/6 A to save more than 50% of charging time. The 420 Wh battery can be charged from 0 to 80% in 3.9 hours and fully charged in 5.3 hours.

Reliable SWIT quality

The PB-C420S internal controller has multiple protection circuits to detect abnormal conditions such as overcharging, over-discharging, overheating, short circuits, etc., and actively protect devices from potential safety issues. The SWIT battery is always your reliable choice.

• 14.4 V, 420 Wh/29.4 Ah large capacity
• Constant load 250 W/20 A, peak load 305 W
• Support for fast charging with 100 W/6 A
• 2 D-Tap power connectors, load 150 W
• Digital 5-LED operating indicators
• Display of SONY/RED viewfinder power supply information
• Multiple protection circuits
