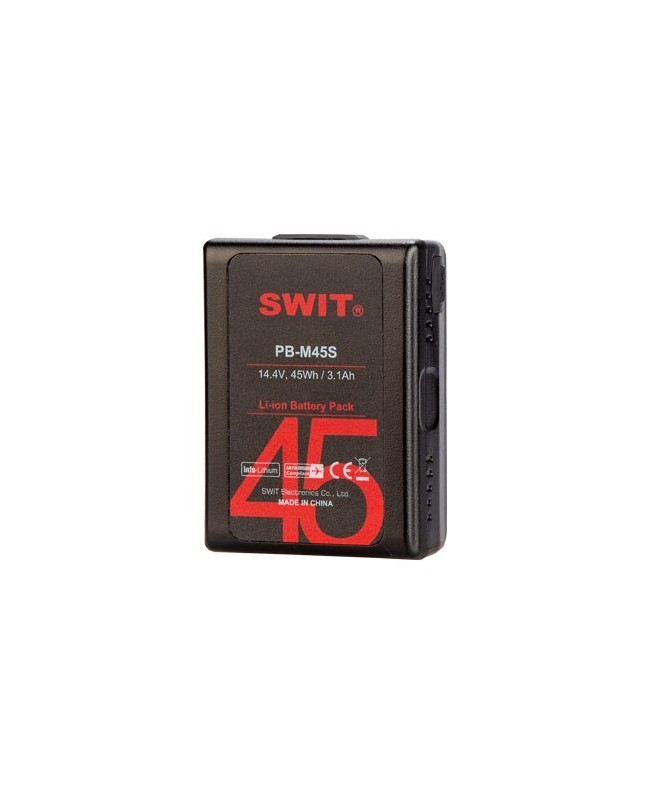

SWIT PB-M45S

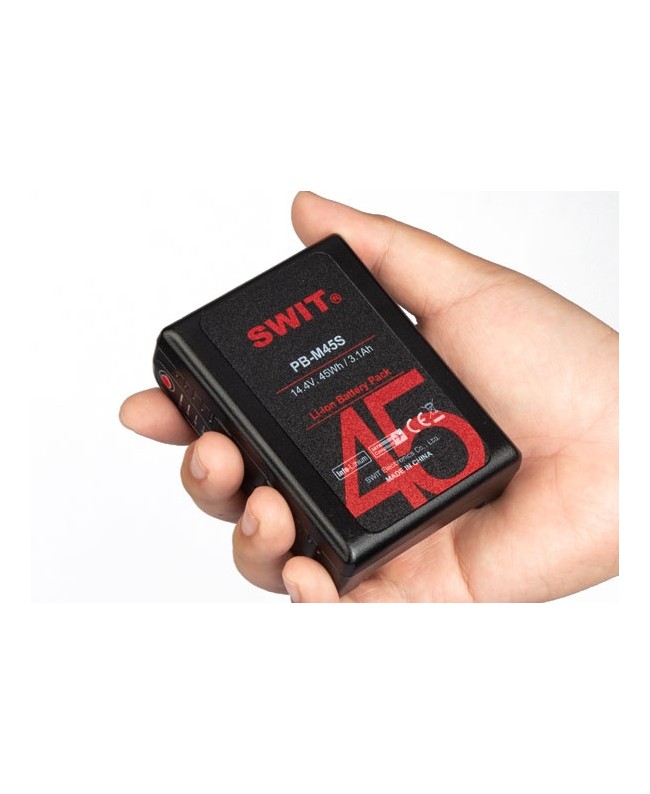

Pocket size

Brick-shaped V-mount batteries are always too large and heavy for outdoor shooting, especially for portable stabilizers, focus monitors, portable LED panels, or small cameras.

The PB-M45S Pocket V-Mount Battery is the perfect solution!

It is only the size of a DV battery, has a capacity of 45 Wh and no compromises on DC connections!

45 Wh air travel compliant

150 W / 12 A at high continuous load

The PB-M45S consists of 4 high-quality 18650 batteries with a nominal voltage of 14.4 V and a high capacity of 45 Wh / 3.1 Ah. You can take this battery with you in your hand luggage on board the aircraft.

The constant load is up to 150 W, 12 A, suitable for high-performance lighting.

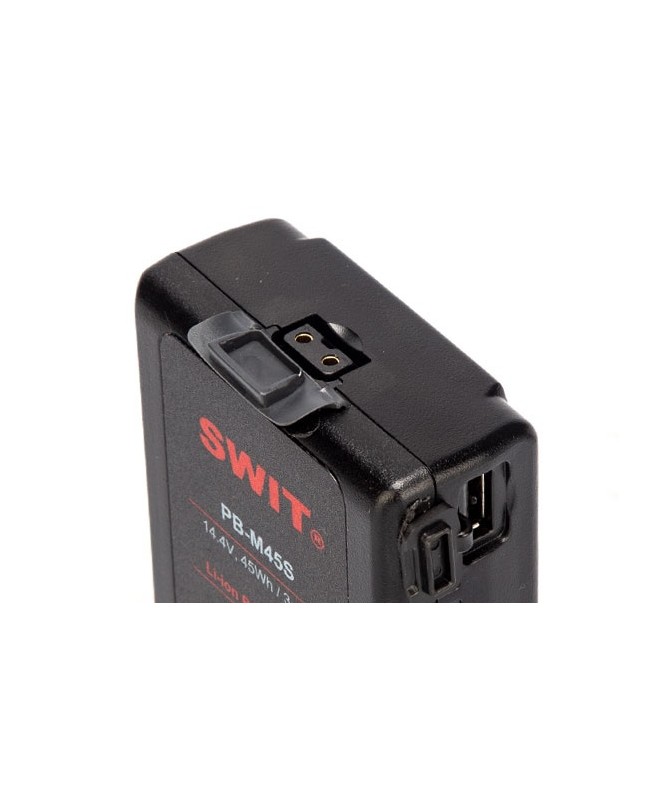

Integrated D-Tap and USB

The pocket-sized PB-M45S also features integrated D-Tap and USB ports. The D-Tap port shares the 100 W / 8 A DC output with the V-mount pins and supports charging via the SWIT PC-U130B2 dual D-Tap charger.

The USB socket provides 5 V / 2 A for fast charging of smartphones.

5-LED operating indicator

Low battery warning

The PB-M45S has 5 LEDs that indicate the percentage of power remaining. When the remaining charge is less than 10%, the last LED flashes automatically to remind you to replace the battery.

Fast charging 3A

The PB-M45S can be charged with all standard V-mount chargers and chargers with a D-socket. The maximum charging current is 3A. We recommend the following chargers:

1. S-3822S, portable 2-channel simultaneous charger

• Charges 2x PB-M45S: approx. 75 min

2. PC-U130B2, ultra-portable charger with two plugs

• Charges 1x PB-M45S: approx. 75 min
• Charges 2x PB-M45S: approx. 2 hours

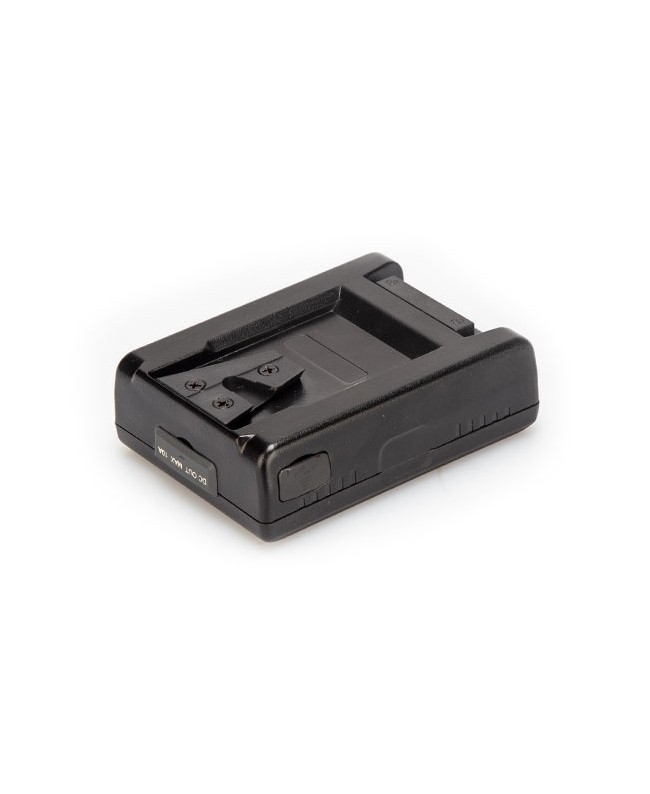

Hot-swap adapter

With the KA-M20S hot-swap adapter, 2x PB-M45S can be exchanged on the cameras during operation to achieve a long service life, uninterrupted power supply, and performance equivalent to a standard V-mount battery.

Wireless internal technology

The PB-M45S features innovative internal “wire-free” technology. All cells, D-Tap, USB, and power indicator devices are soldered directly to the circuit board without connecting wires to effectively reduce internal resistance and make the circuit stable, safe, and reliable.
