DJI Ronin 4D-6K Digital Film Cameras

DJI Ronin 4D-6K

€5,168.00
Tax included

Innovative all-in-one camera/gimbal solution 4-Axis CineCam 6K Kit

Out of Stock

Free shipping

Compare

wishlist

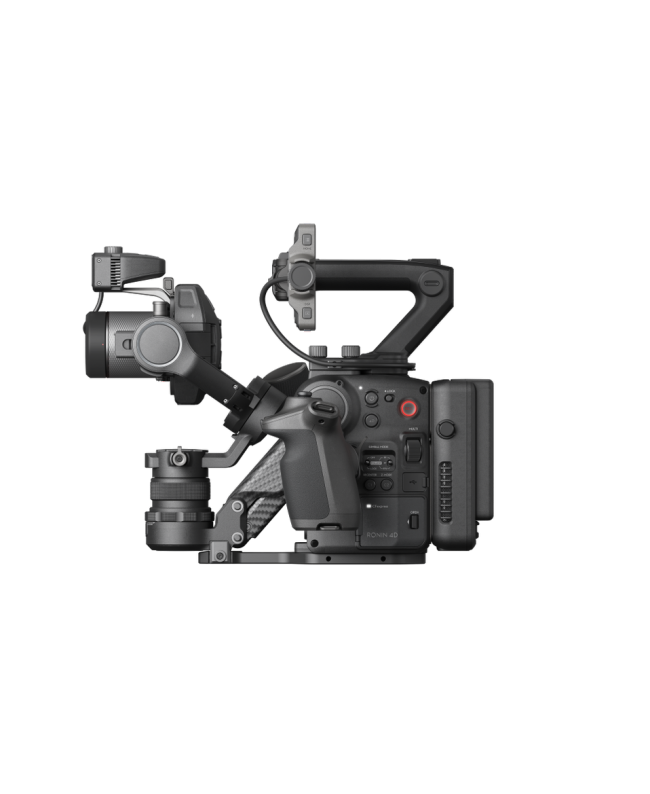

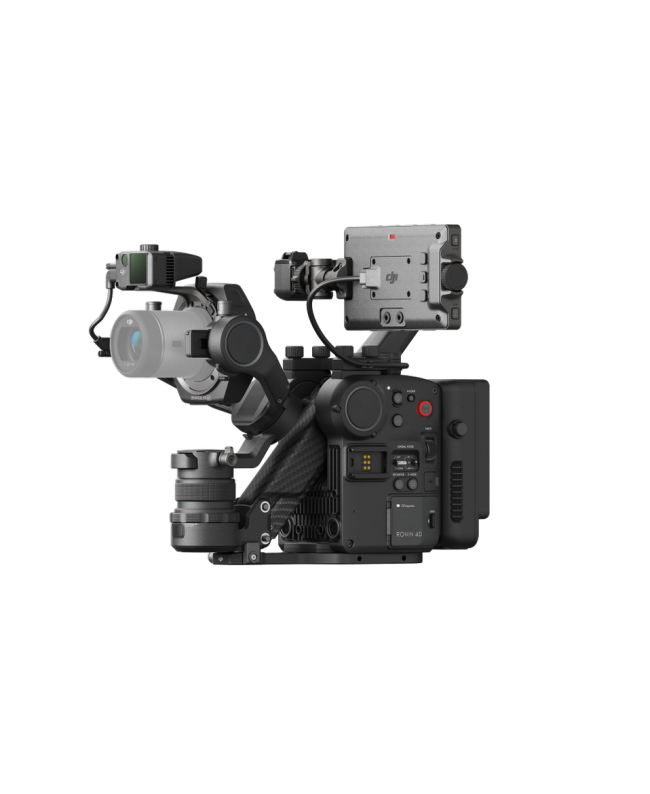

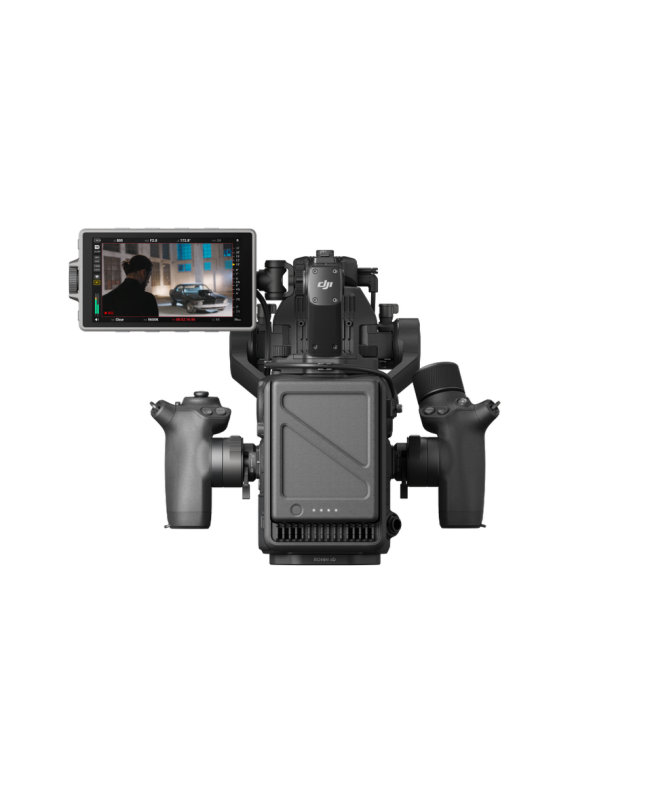

DJI Ronin 4D-6K







The new DJI Ronin 4D is equipped with Zenmuse X9, DJI's full-frame camera, and also includes DJI's latest processing system, CineCore 3.0 which, using the DJI chip to provide advanced processor architecture, delivers powerful extremely high computation and allows Ronin 4D to support internal recording of video in Apple ProRes RAW, ProRes 422 HQ and H.264.

DJI Ronin 4D also supports video recording up to 8K / 75fps and 4K / 120fps, giving you multiple professional-grade creation options.

Resolution, ISO and dynamic range

DCI 8K (8192 × 4320) / 60 fps video preserves every detail, from foliage to architectural elements, from skin texture to strands of hair, all in flawless quality. For those who need to produce in 4K, 8K recording offers unprecedented creative options with greater flexibility for video trimming, re-composing and stabilization. Great opportunities also from the ISO point of view: Zenmuse X9, in fact, supports dual native ISO (X9-8K: 800/4000; X9-6K: 800/5000), and is capable of recording images with exquisite details and minimal noise. , even when shooting an evening urban scenery or a beach, as well as a scene illuminated by the dim light of a candle.

With a truly extended dynamic range, Zenmuse X9 (full frame) offers natural transitions of light and shadow in complex lighting conditions, such as backlit scenes and in direct sunlight. These traditionally difficult scenes can now be captured more easily and with greater confidence.

Ronin 4D integrates 8K imaging, 4-axis stabilization, LiDAR focus and 6km video transmission in one solution.

LiDAR focusing

Autofocus is fast, accurate and reliable and is now available on manual lenses. LiDAR Waveform makes manual focusing more intuitive and convenient. Automated manual focus offers an unrivaled experience.

Wireless transmission and control

O3 Pro video transmission technology adds DFS frequency bands and enables 1080p / 60fps video transmission. It supports a transmitter with multiple receivers and can remotely control the gimbal, focus and settings.

4-axis stabilization

The Z axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, steady movies effortlessly.

In the Box

  • DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit
  • Zenmuse X9-6K Gimbal Camera
  • DL Mount
  • DL Mount Body Cap
  • DL Mount Lens Cap
  • X9 Gimbal Base Cap
  • Ronin 4D Gimbal Base Cap
  • Main Body
  • 2 x Handgrip
  • Handgrip Extended Control Stick
  • Top Handle
  • TB50 Battery Mount
  • TB50 Intelligent Battery
  • 2 x Handgrip Strap
  • Power Adapter
  • 8 x AC Power Cable
  • TB50 Charging Adapter
  • Baseplate
  • LiDAR Range Finder/Focus Motor Cable
  • USB Type-A to Type-C Cable
  • Ronin 4D Carrying Case
  • Ball-End Allen Key (3mm)
  • 6 x 1/4"-20 Screw (10mm)
  • LiDAR Range Finder
  • LiDAR Range Finder Holder
  • C-Shaped DL Mount Ring
  • 2 x M2-3 Screw (3mm)
  • Ball-End Allen Key (1.5mm)

General informations

  • Main body size (length × width × height): 235 × 115 × 160mm
  • Overall dimensions (length × width × height): 309 × 290 × 277 mm
  • Weight: 1.04 kg approx.
  • Main Body Weight: 1.45kg approx.
  • Total weight: 4.67 kg approx. (after installing all combo modules, excluding lens and memory card)
  • Max operating time: approx. 150 minutes
  • Intelligent functions: ActiveTrack Pro, Autofocus, (supports face / body recognition and the framing of each subject)
  • Storage temperature: Between -20 ° C and 60 ° C (-4 ° - 140 ° F)
  • Operating temperature: Between -10 ° and 40 ° C (14 ° - 104 ° F)

Camera

  • Sensor size: 35mm full-frame CMOS image sensor
  • Basic Lens Support: DX Mount and support for other units
  • Lens mounts supported: DL Mount (standard), M Mount and E Mount

DL lens:

  • DJI DL 24mm F2.8 LS ASPH
  • DJI DL 35mm F2.8 LS ASPH
  • DJI DL 50mm F2.8 LS ASPH
  • Dynamic range: 14+ stops
  • White Balance: Manual adjustment 2,000-11,000 Kelvin and tint, supports AWB
  • Range: D-Log, Rec.709, HLG
  • Interval EI
  • X9-6K: EI 200-12800, dual native ISO 800/5000
  • Shutter Speed: 1 / 24s-1 / 8000s Electronic Rotating Shutter
  • ND Built-in 9-stop ND Filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8 ), 128 (2.1), 256 (2.4), 512 (2.7)
  • Focus Control: Auto Focus, Manual Focus, Automated Manual Focus
  • Max Bit Rate of X9-6K:
  • 6008 × 3168, 48fps
  • RAW at 3.4 Gbit / s
  • Supported file systems: exFAT

Recording formats:

  • Apple ProRes 4444XQ (https://support.apple.com/en-us/HT202410)
  • Apple ProRes 422 HQ / Apple ProRes 422
  • H.264 (4: 2: 0 10-bit)
  • Storage media: DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
  • DJI PROSSD 1TB recording format: No restrictions on the recording format

CFexpress 2.0 Type B Recording Format:

ProRes 422 HQ:

  • 6K: 23.976 / 24/25 / 29.97 / 30fps
  • C4K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60/72/96/100 / 120fps
  • 2K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60/72/96/100 / 120fps

H.264:

  • C4K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60/72/96/100 / 120fps
  • 2K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60/72/96/100 / 120fps

USB-C SSD recording format

ProRes 422 HQ:

  • C4K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60fps
  • 2K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60fps

H.264:

  • C4K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60fps
  • 2K: 23.976 / 24/25 / 29.97 / 30/48/50 / 59.94 / 60fps
  • Audio format: 2-channel LPCM, 24-bit 48kHz

Stabilizer

Mechanical radius:

  • Horizontal rotation: ± 330 °
  • Tilt: from -75 ° to 175 °
  • Roll: from -90 ° to 230 °
  • Z axis radius: approx. 130 mm

Controllable range:

  • Horizontal rotation: ± 285 °
  • Tilt: from -55 ° to + 155 °
  • Roll: ± 35 °

Maximum Control Speed (° / s) DJI Master Wheels or DJI Force Pro:

  • Tilt: 360 ° / s
  • Roll: 360 ° / s
  • Horizontal rotation: 360 ° / s

Ronin 4D grips:

  • Tilt: 120 ° / s
  • Roll: 120 ° / s
  • Horizontal rotation: 120 ° / s
  • Maximum payload of Z axis: 2000g (including 1040g stabilizer)
  • Angular vibration range: ± 0.01 °
  • LiDAR distance detector
  • Weight: 88 g
  • Dimensions (length × width × height): 71 × 47 × 34mm
  • Operating temperature: Between -10 ° and 40 ° C (14 ° - 104 ° F)

LiDAR precision measurement range:

  • 0.3-1m (± 1%)
  • 1-10m (± 1.5%)

FOV:

  • 30cm to 3m with> 18% reflectivity 60 ° (horizontal) × 45 ° (vertical)
  • 30 cm to 10 m with> 18% reflectivity 60 ° (horizontal) × 7 ° (vertical)
  • Safety classification: Class 1 (IEC 60825-1: 2014) (safe for eyes)

Operating environment:

  • Use in environments with diffuse reflective surfaces (> 10%, such as walls, trees, people, etc.)
  • DO NOT use in dense fog environments or point it at or through glass surfaces.
  • Laser wavelength: 940 nm
  • Single pulse width: In circulation they emit two types of pulses: 5 ns and 33.4 ns.
  • Maximum laser power: 6W

Main monitor

  • Screen size: 5.5 inches (diagonal)
  • Resolution: 1920 × 1080
  • Refresh rate: 60Hz
  • Maximum brightness: 1000 cd / m²
  • Screen: Rotating LCD touchscreen

Battery

  • Battery type: TB50 smart battery
  • Capacity: 4280mAh
  • Energy: 97.58 Wh
  • Voltage: 22.8V
  • Charging voltage (max.): 26.1V
  • Charging power (max.): 180W
  • Charging temperature range: 5 ° to 40 ° C (41 ° to 104 ° F)
  • Charging time: approx. 1.5 hours (with standard 86W power supply)

DJI Ronin 4d CineCam 6K
