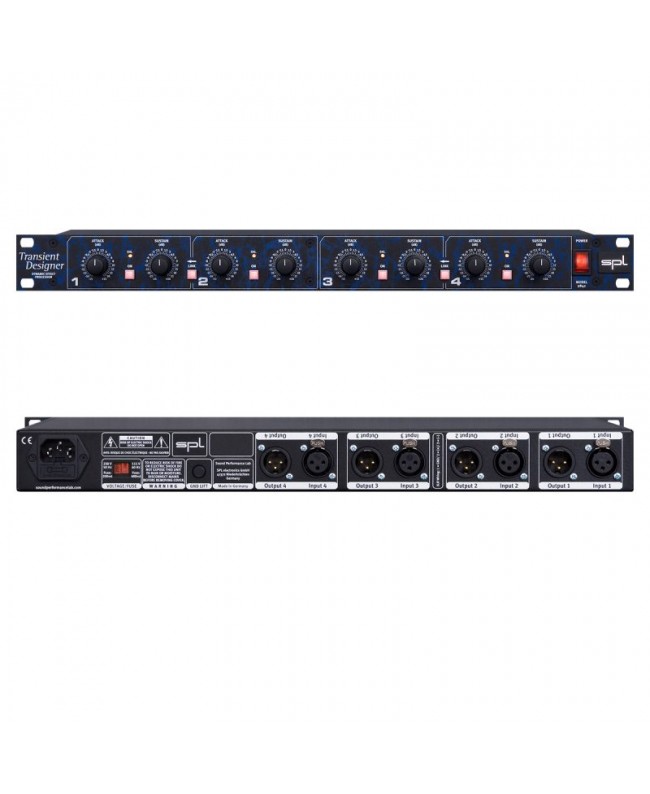

SPL Transient Designer 4



The Transient Designer has created a new generation of dynamics processors that can model the transient response of any audio signal.

  • Designing on transients

Transient Designer revolutionizes dynamics processing by allowing for the first time level-independent envelope modification (no thresholds!). Speed up or slow down transients, lengthen or shorten decay times with only two controls (attack and sustain). All time constants are musically automated and adaptively optimize based on the characteristics of the input signal. Channels 1 and 2 and 3 and 4 can be linked for stereo signal processing. The respective left channel becomes the master.

  • Differential envelope technology

Our differential envelope technology (DET) makes it possible to process the dynamic characteristics of the signal by forming the difference between envelopes and thus making them independent of level. Envelope trackers align working processes with the natural characteristics of the signal. This ensures optimal results at all times.

  • Maximum input gain: 22 dBu
  • Input impedance: 22 kΩ
  • Common mode rejection (1 kHz): 80 dBu
  • Frequency range (-3 dB); 10 Hz: 100 kHz
  • THD + N (0 dBu, 10 Hz: 22 kHz); 0.004 %
  • Crosstalk (1 kHz): -90dB _
  • Noise (A-weighted); -105 dBu: Dynamic range; 127.4 dB
  • Internal linear power supply with toroidal transformer
  • Maximum input gain: 22 dBu
  • Input impedance: 22 kΩ
  • Common mode rejection (1 kHz): 80 dBu
  • Frequency range (-3 dB); 10 Hz: 100 kHz
  • THD + N (0 dBu, 10 Hz: 22 kHz); 0.004 %
  • Crosstalk (1 kHz): -90dB _
  • Noise (A-weighted); -105 dBu: Dynamic range; 127.4 dB
  • Operating voltage for analog audio: +/- 15 V
  • Mains power supply: Mains voltage (selectable); 230 V AC / 50; 115 V AC / 60 Hz
  • Fuse for 115 V: T 630 mA
  • Power consumption: max. 25 W
  • W x H x D (width x height x depth): 482 x 44 x 237 mm
  • Unit weight: 3.4 kg
  • Shipping weight (including packaging): 4.45 kg
